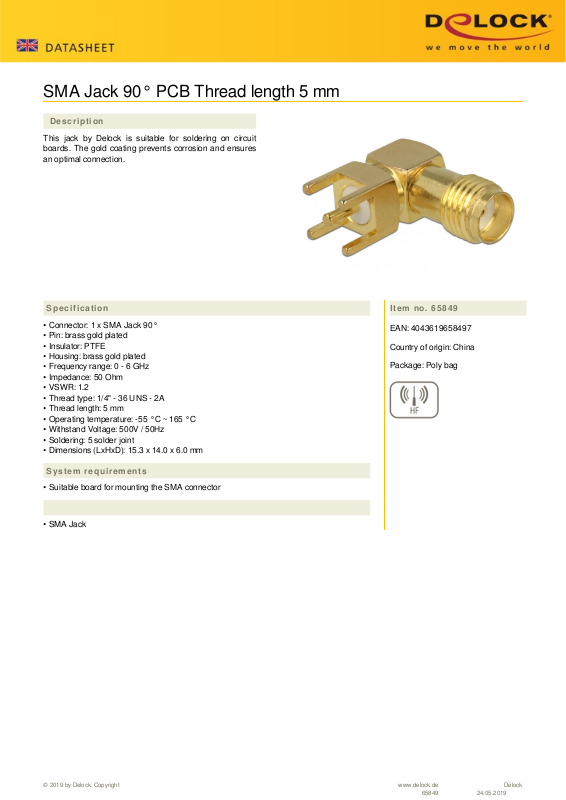

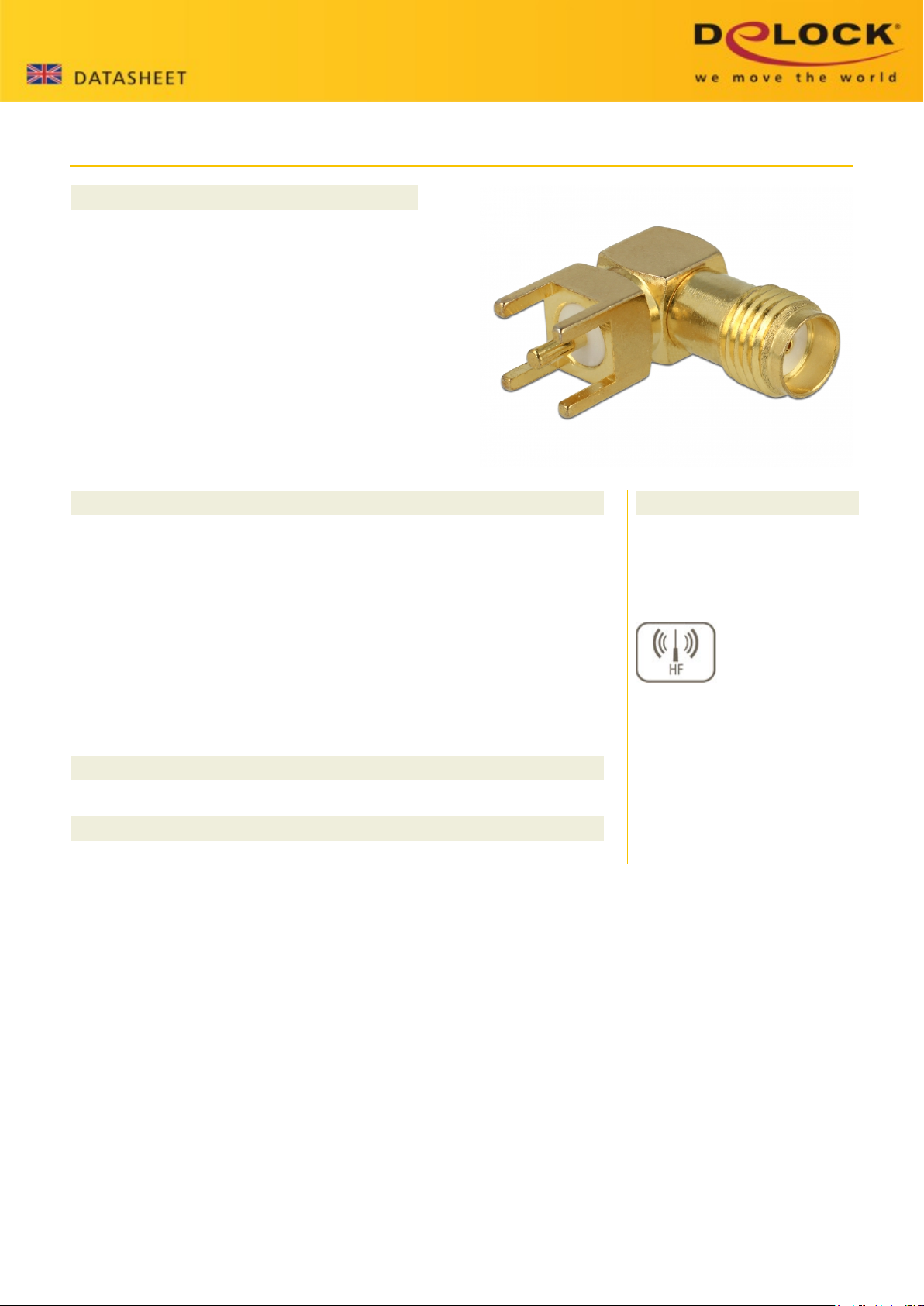

SMA Jack 90° PCB Thread length 5 mm
Description
This jack by Delock is suitable for soldering on circuit
boards. The gold coating prevents corrosion and ensures
an optimal connection.
Specification
• Connector: 1 x SMA Jack 90°
• Pin: brass gold plated
• Insulator: PTFE
• Housing: brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.2
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Operating temperature: -55 °C ~ 165 °C
• Withstand Voltage: 500V / 50Hz
• Soldering: 5 solder joint
• Dimensions (LxHxD): 15.3 x 14.0 x 6.0 mm
Item no. 65849
EAN: 4043619658497
Country of origin: China
Package: Poly bag
System requirements
• Suitable board for mounting the SMA connector
• SMA Jack
© 2019 by Delock. Copyright www.delock.de
65849
24.05.2019
Delock
Page 2
General
Mounting type: standard
Soldering
Interface
connector: standard
1 x SMA Jack 90°
Technical characteristics
Frequency range: standard
0 - 6 GHz
Impedance: standard
50 Ω
Operating temperature: standard
-55 °C ~ 165 °C
VSWR: standard
1.2
Physical characteristics
Solder pin: standard
Ø 1.5 mm
Housing material: standard
Brass gold plated
Diameter: standard
6.0 mm
Length: standard
15.3 mm
Height: standard
14.0 mm
Thread type: standard
1/4" - 36 UNS - 2A
Insulator: standard
PTFE
Pin: standard
Brass gold plated
