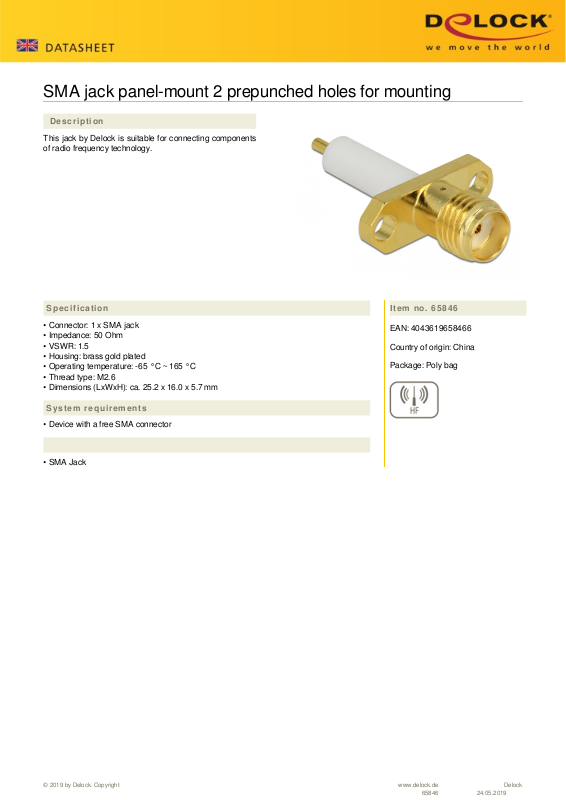

SMA jack panel-mount 2 prepunched holes for mounting
Description
This jack by Delock is suitable for connecting components
of radio frequency technology.
Specification
• Connector: 1 x SMA jack
• Impedance: 50 Ohm
• VSWR: 1.5
• Housing: brass gold plated
• Operating temperature: -65 °C ~ 165 °C
• Thread type: M2.6
• Dimensions (LxWxH): ca. 25.2 x 16.0 x 5.7 mm
Item no. 65846
EAN: 4043619658466
Country of origin: China
Package: Poly bag
System requirements
• Device with a free SMA connector
• SMA Jack
© 2019 by Delock. Copyright www.delock.de
65846
24.05.2019
Delock
Page 2
Interface
connector: standard
1 x SMA jack
Technical characteristics
Impedance: standard
50 Ω
Operating temperature: standard
-65 °C ~ 165 °C
VSWR: standard
1.5
Physical characteristics
Housing material: standard
Brass gold plated
Length: standard
25.2 mm
Width: standard
16.0 mm
Height: standard
5.7 mm
Thread type: standard
1/4" - 36 UNS - 2A
Pin: standard
Brass gold plated
