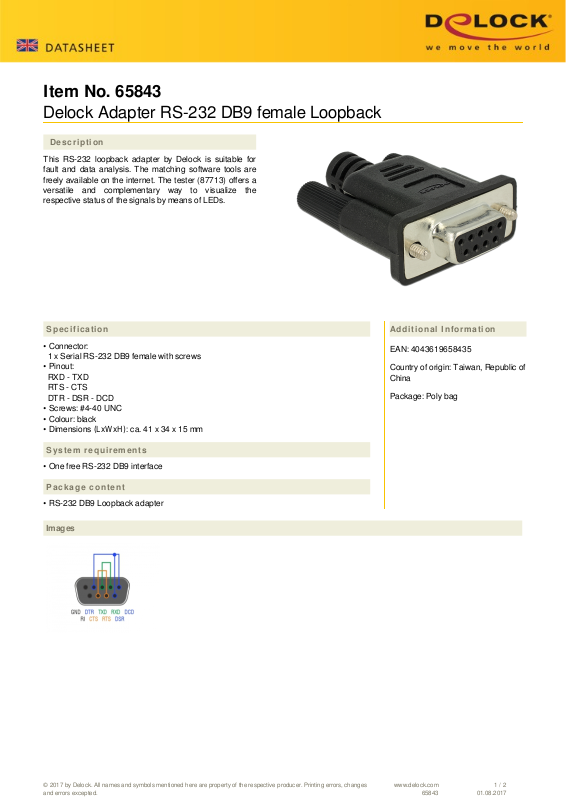

Page 1
Item No. 65843
Delock Adapter RS-232 DB9 female Loopback
Description
This RS-232 loopback adapter by Delock is suitable for
fault and data analysis. The matching software tools are
freely available on the internet. The tester (87713) offers a
versatile and complementary way to visualize the
respective status of the signals by means of LEDs.
Specification
• Connector:
1 x Serial RS-232 DB9 female with screws
• Pinout:
RXD - TXD
RTS - CTS
DTR - DSR - DCD
• Screws: #4-40 UNC
• Colour: black
• Dimensions (LxWxH): ca. 41 x 34 x 15 mm
Additional Information
EAN: 4043619658435
Country of origin: Taiwan, Republic of
China
Package: Poly bag
System requirements
• One free RS-232 DB9 interface
Package content
• RS-232 DB9 Loopback adapter
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65843
1 / 2
01.08.2017
Page 2
General
Specification: RS-232
Supported operating system: OS independent, no driver installation necessary
Interface
connector: Serial RS-232 DB9 female with screws
Physical characteristics
Weight: 23 g
Depth: 40.8 mm
Width: 33.6 mm
Height: 14.8 mm
Screw type: #4-40 UNC
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65843
2 / 2
01.08.2017
