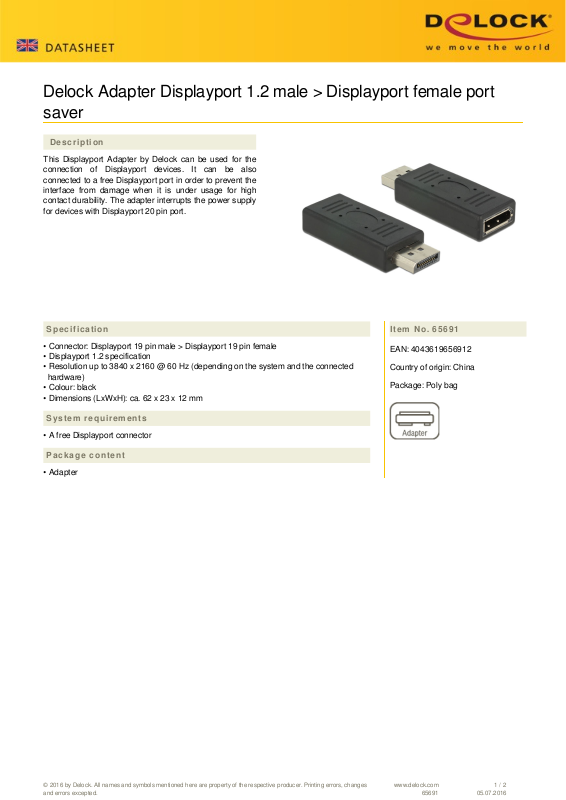

Delock Adapter Displayport 1.2 male > Displayport female port
saver
Description
This Displayport Adapter by Delock can be used for the
connection of Displayport devices. It can be also
connected to a free Displayport port in order to prevent the
interface from damage when it is under usage for high
contact durability. The adapter interrupts the power supply
for devices with Displayport 20 pin port.
Specification
• Connector: Displayport 19 pin male > Displayport 19 pin female
• Displayport 1.2 specification
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Dimensions (LxWxH): ca. 62 x 23 x 12 mm
Item No. 65691
EAN: 4043619656912
Country of origin: China
Package: Poly bag
System requirements
• A free Displayport connector
Package content
• Adapter
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65691
1 / 2
05.07.2016
Page 2
General
Specification: Displayport 1.2
Interface
Connection 1: 1 x Displayport 20 pin female
Connection 2: 1 x Displayport 20 pin female
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Length: 62 mm
Width: 23 mm
Height: 12 mm
Powered by TCPDF (www.tcpdf.org)
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65691
2 / 2
05.07.2016
