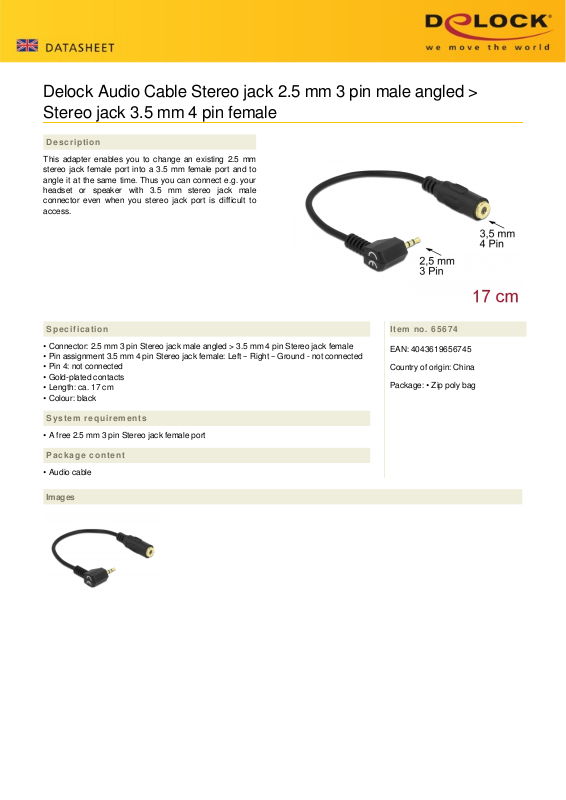

Page 1
Delock Audio Cable Stereo jack 2.5 mm 3 pin male angled >
Stereo jack 3.5 mm 4 pin female
Description
This adapter enables you to change an existing 2.5 mm
stereo jack female port into a 3.5 mm female port and to
angle it at the same time. Thus you can connect e.g. your
headset or speaker with 3.5 mm stereo jack male
connector even when you stereo jack port is difficult to
access.
Specification
• Connector: 2.5 mm 3 pin Stereo jack male angled > 3.5 mm 4 pin Stereo jack female
• Pin assignment 3.5 mm 4 pin Stereo jack female: Left – Right – Ground - not connected
• Pin 4: not connected
• Gold-plated contacts
• Length: ca. 17 cm
• Colour: black
Item no. 65674
EAN: 4043619656745
Country of origin: China
Package: • Zip poly bag
System requirements
• A free 2.5 mm 3 pin Stereo jack female port
Package content
• Audio cable
Images
Page 2
Interface
Connector 1: 1 x 2.5 mm 3 pin stereo jack male
Connector 2: 1 x 3.5 mm 4 pin stereo jack female
Physical characteristics
Cable colour: black
Length: 17 cm
