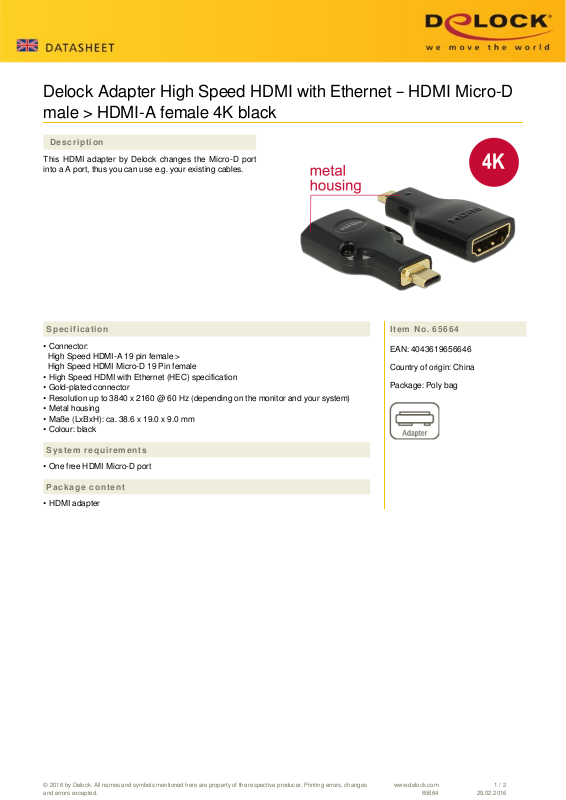

Page 1
Delock Adapter High Speed HDMI with Ethernet – HDMI Micro-D
male > HDMI-A female 4K black
Description
This HDMI adapter by Delock changes the Micro-D port
into a A port, thus you can use e.g. your existing cables.
Specification
• Connector:
High Speed HDMI-A 19 pin female >
High Speed HDMI Micro-D 19 Pin female
• High Speed HDMI with Ethernet (HEC) specification
• Gold-plated connector
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the monitor and your system)
• Metal housing
• Maße (LxBxH): ca. 38.6 x 19.0 x 9.0 mm
• Colour: black
Item No. 65664
EAN: 4043619656646
Country of origin: China
Package: Poly bag
System requirements
• One free HDMI Micro-D port
Package content
• HDMI adapter
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65664
1 / 2
29.02.2016
Page 2
Interface
Connection 1: 1 x High Speed HDMI Mini-C 19 Pin male
Connection 2: 1 x High Speed HDMI-A 19 pin female
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Colour: black
Housing: metal
Length: 32.3 mm
Width: 19.0 mm
Height: 9.1 mm
Pin finishing: gold-plated
