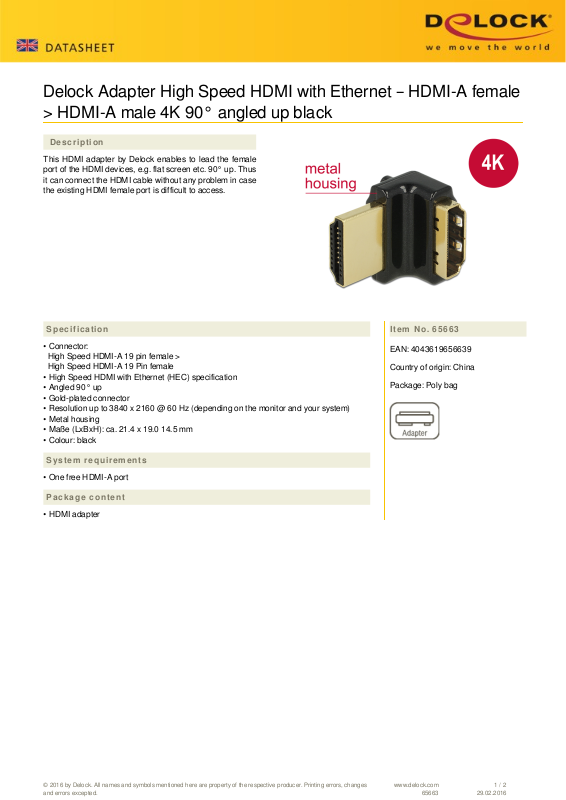

Delock Adapter High Speed HDMI with Ethernet – HDMI-A female
> HDMI-A male 4K 90° angled up black
Description
This HDMI adapter by Delock enables to lead the female
port of the HDMI devices, e.g. flat screen etc. 90° up. Thus
it can connect the HDMI cable without any problem in case
the existing HDMI female port is difficult to access.
Specification
• Connector:
High Speed HDMI-A 19 pin female >
High Speed HDMI-A 19 Pin female
• High Speed HDMI with Ethernet (HEC) specification
• Angled 90° up
• Gold-plated connector
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the monitor and your system)
• Metal housing
• Maße (LxBxH): ca. 21.4 x 19.0 14.5 mm
• Colour: black
Item No. 65663
EAN: 4043619656639
Country of origin: China
Package: Poly bag
System requirements
• One free HDMI-A port
Package content
• HDMI adapter
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65663
1 / 2
29.02.2016
Page 2
Interface
Connection 1: 1 x High Speed HDMI-A 19 pin female
Connection 2: 1 x High Speed HDMI-A 19 pin male
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Colour: black
Housing: metal
Length: 21.4 mm
Width: 19.0 mm
Height: 14.5 mm
Pin finishing: gold-plated
