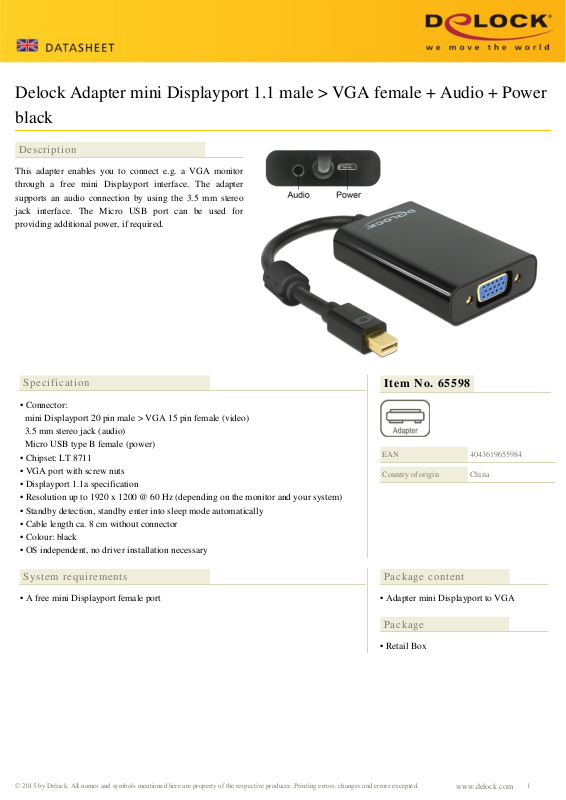

Delock Adapter mini Displayport 1.1 male > VGA female + Audio + Power
black
Description
This adapter enables you to connect e.g. a VGA monitor
through a free mini Displayport interface. The adapter
supports an audio connection by using the 3.5 mm stereo
jack interface. The Micro USB port can be used for
providing additional power, if required.
Specification
• Connector:
mini Displayport 20 pin male > VGA 15 pin female (video)
3.5 mm stereo jack (audio)
Micro USB type B female (power)
• Chipset: LT 8711
• VGA port with screw nuts
• Displayport 1.1a specification
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the monitor and your system)
• Standby detection, standby enter into sleep mode automatically
• Cable length ca. 8 cm without connector
• Colour: black
• OS independent, no driver installation necessary
Item No. 65598
EAN
Country of origin
4043619655984
China
System requirements
• A free mini Displayport female port
Package content
• Adapter mini Displayport to VGA
Package
• Retail Box
