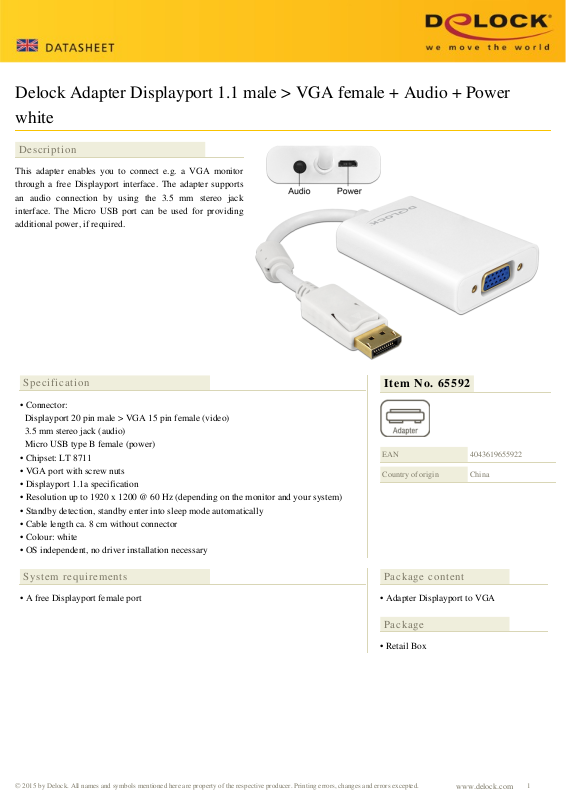

Delock Adapter Displayport 1.1 male > VGA female + Audio + Power
white
Description
This adapter enables you to connect e.g. a VGA monitor
through a free Displayport interface. The adapter supports
an audio connection by using the 3.5 mm stereo jack
interface. The Micro USB port can be used for providing
additional power, if required.
Specification
• Connector:
Displayport 20 pin male > VGA 15 pin female (video)
3.5 mm stereo jack (audio)
Micro USB type B female (power)
• Chipset: LT 8711
• VGA port with screw nuts
• Displayport 1.1a specification
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the monitor and your system)
• Standby detection, standby enter into sleep mode automatically
• Cable length ca. 8 cm without connector
• Colour: white
• OS independent, no driver installation necessary
Item No. 65592
EAN
Country of origin
4043619655922
China
System requirements
• A free Displayport female port
Package content
• Adapter Displayport to VGA
Package
• Retail Box
