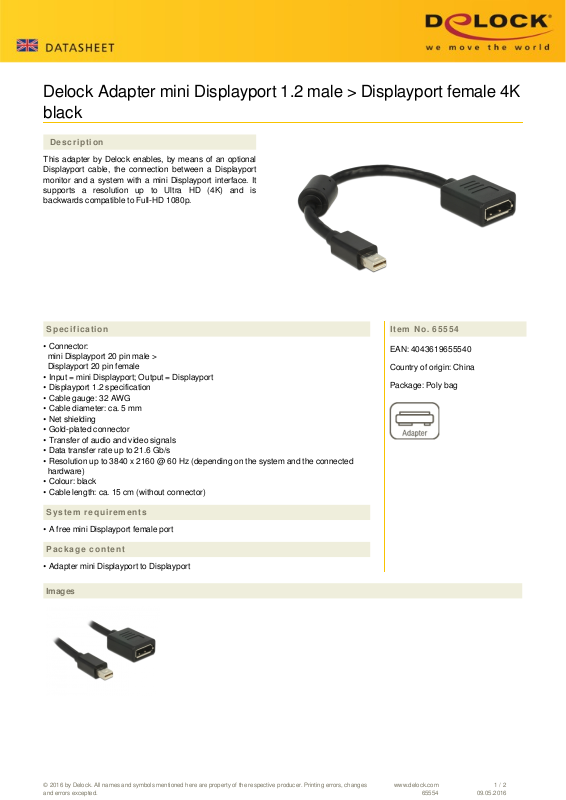

Page 1
Delock Adapter mini Displayport 1.2 male > Displayport female 4K
black
Description
This adapter by Delock enables, by means of an optional
Displayport cable, the connection between a Displayport
monitor and a system with a mini Displayport interface. It
supports a resolution up to Ultra HD (4K) and is
backwards compatible to Full-HD 1080p.
Specification
• Connector:
mini Displayport 20 pin male >
Displayport 20 pin female
• Input = mini Displayport; Output = Displayport
• Displayport 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5 mm
• Net shielding
• Gold-plated connector
• Transfer of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Cable length: ca. 15 cm (without connector)
Item No. 65554
EAN: 4043619655540
Country of origin: China
Package: Poly bag
System requirements
• A free mini Displayport female port
Package content
• Adapter mini Displayport to Displayport
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65554
1 / 2
09.05.2016
Page 2
General
Specification: Displayport 1.2
Interface
Input: 1 x mini Displayport 20 pin male
Output: 1 x Displayport 20 pin female
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Colour: black
Ferrite core: 1 x
Cable diameter: 5 mm
Cable length: 15 cm
Pin finishing: gold-plated
Conductor gauge: 32 AWG
Powered by TCPDF (www.tcpdf.org)
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
65554
2 / 2
09.05.2016
