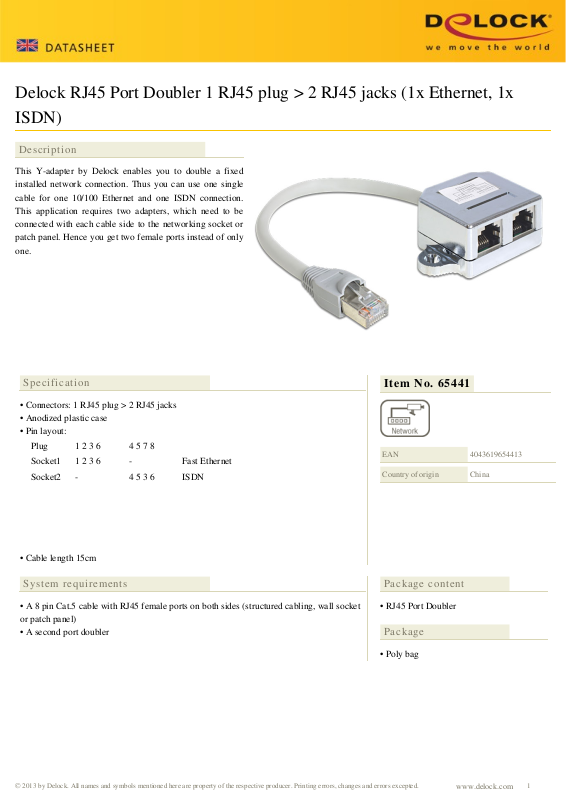

DeLOCK 65441 User Manual

Delock RJ45 Port Doubler 1 RJ45 plug > 2 RJ45 jacks (1x Ethernet, 1x
ISDN)

Description

This Y-adapter by Delock enables you to double a fixed
installed network connection. Thus you can use one single
cable for one 10/100 Ethernet and one ISDN connection.
This application requires two adapters, which need to be
connected with each cable side to the networking socket or
patch panel. Hence you get two female ports instead of only
one.

Specification

• Connectors: 1 RJ45 plug > 2 RJ45 jacks

• Anodized plastic case

• Pin layout:
Plug 1 2 3 6 4 5 7 8
Socket1 1 2 3 6 - Fast Ethernet
Socket2 - 4 5 3 6 ISDN

Item No. 65441

EAN

Country of origin

4043619654413

China

• Cable length 15cm

System requirements

• A 8 pin Cat.5 cable with RJ45 female ports on both sides (structured cabling, wall socket

or patch panel)

• A second port doubler

Package content

• RJ45 Port Doubler

Package

• Poly bag
