Delock USB Type-C™ 3.2 Gen 2 to SATA Converter
Description
This converter by Delock can be connected via USB TypeA interface to a PC or laptop. Thus a2.5″ or 3.5″ SATA
HDD or SSD with a 22 pin SATA interface can be used.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Chipset: Asmedia ASM235CM
• For 2.5″ and 3.5″ SATA HDD / SSD
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• Data transfer rate up to 6 Gb/s
• LED indicator
• Colour: black
• Dimensions (LxWxH): ca. 72 x 29 x 14 mm
Item no. 64188
EAN: 4043619641888
Country of origin: China
Package: Retail Box
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Android 10.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• Surface Pro 7
• PC or laptop with a free USB Type-A port
Package content
• Converter
• Cable USB-C™ male to USB Type-A male, length ca. 1 m
• Power supply
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64188
1 / 3
11.05.2022
Page 2

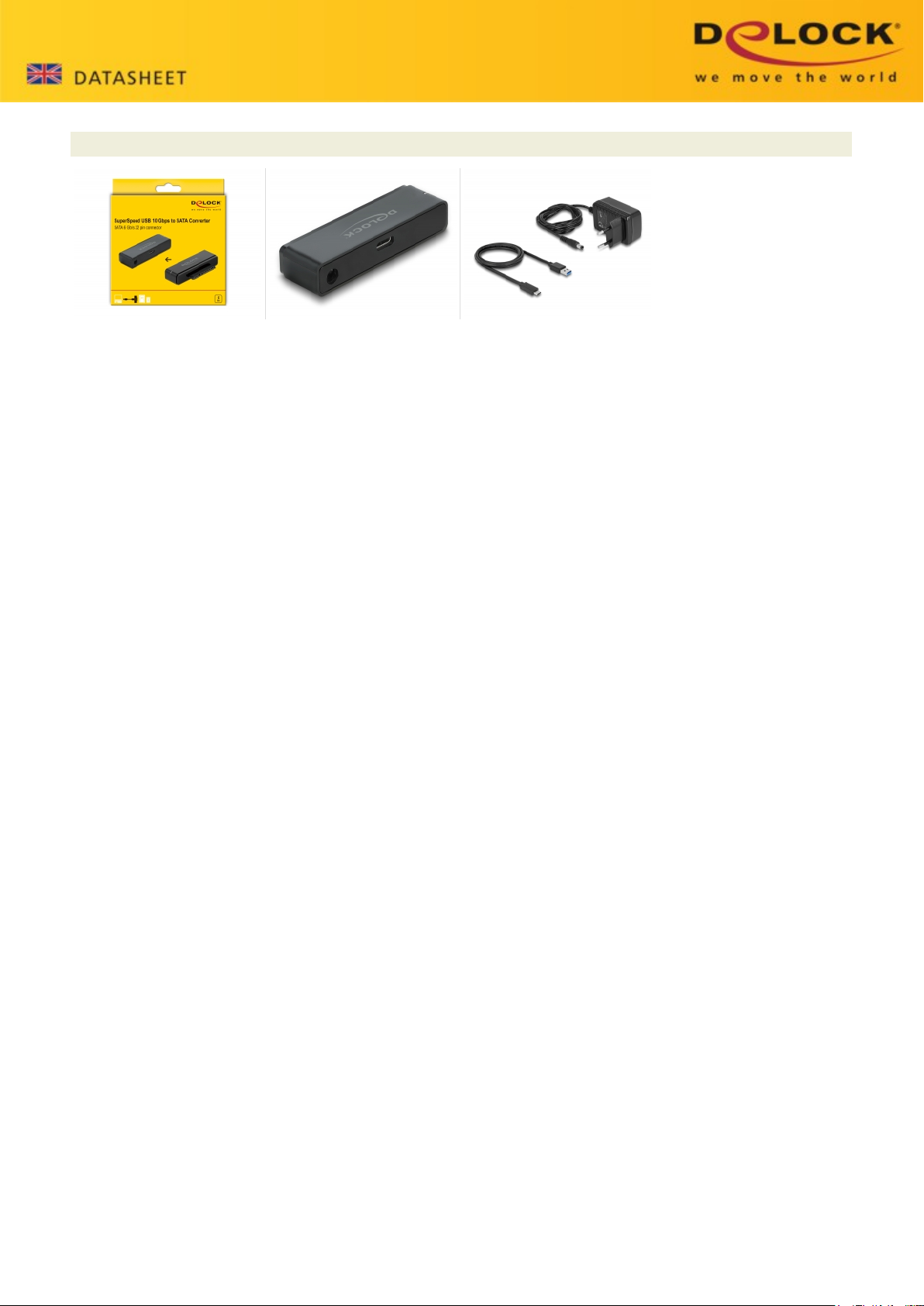

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64188
2 / 3
11.05.2022
Page 3
General
Suitable for data medium: 2.5″
3.5″
Supported operating system: Android 10.0 or above
Chrome OS
Surface Pro 7
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Mac OS 11.2.3 or above
Windows 11
Linux Kernel 5.11 or above
Interface
Connector 1: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
Connector 2: 1 x SATA 6 Gb/s 22 pin receptacle
connector 3: 1 x DC jack
Technical characteristics
Chipset: Asmedia ASM235CM
Data transfer rate: 6 Gb/s
Physical characteristics
Cable length: 1 m
