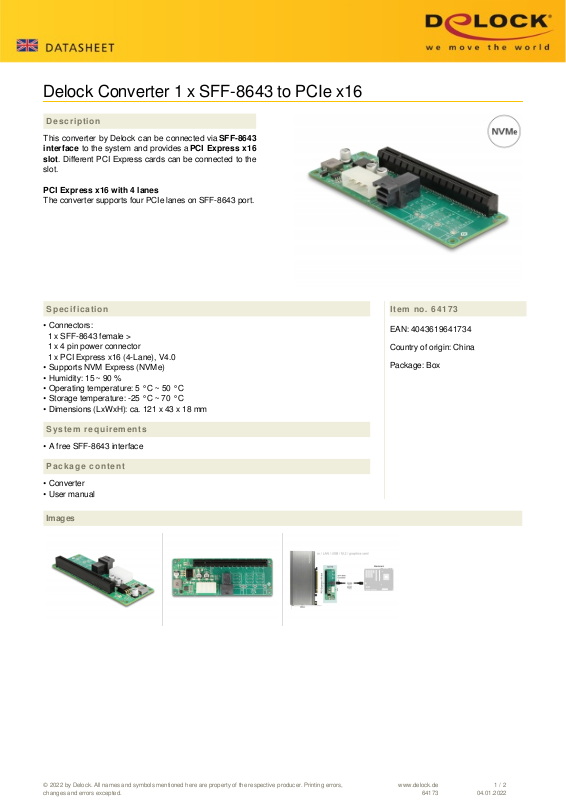

Page 1
Delock Converter 1 x SFF-8643 to PCIe x16
Description
This converter by Delock can be connected viaSFF-8643
interface to the system and provides a PCI Express x16
slot. Different PCI Express cards can be connected to the
slot.
PCI Express x16 with 4 lanes
The converter supports four PCIe lanes on SFF-8643 port.
Specification
• Connectors:
1 x SFF-8643 female >
1 x 4 pin power connector
1 x PCI Express x16 (4-Lane), V4.0
• Supports NVM Express (NVMe)
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
• Dimensions (LxWxH): ca. 121 x 43 x 18 mm
Item no. 64173
EAN: 4043619641734
Country of origin: China
Package: Box
System requirements
• A free SFF-8643 interface
Package content
• Converter
• User manual
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64173
1 / 2
04.01.2022
Page 2
General
Function: NVM Express (NVMe)
Interface
Connector 1: 1 x SFF-8643 female
Connector 2: 1 x PCI Express x16 (4-Lane), V4.0
connector 3: 1 x 4 pin power connector
Physical characteristics
Length: 121 mm
Width: 43 mm
Height: 18 mm
