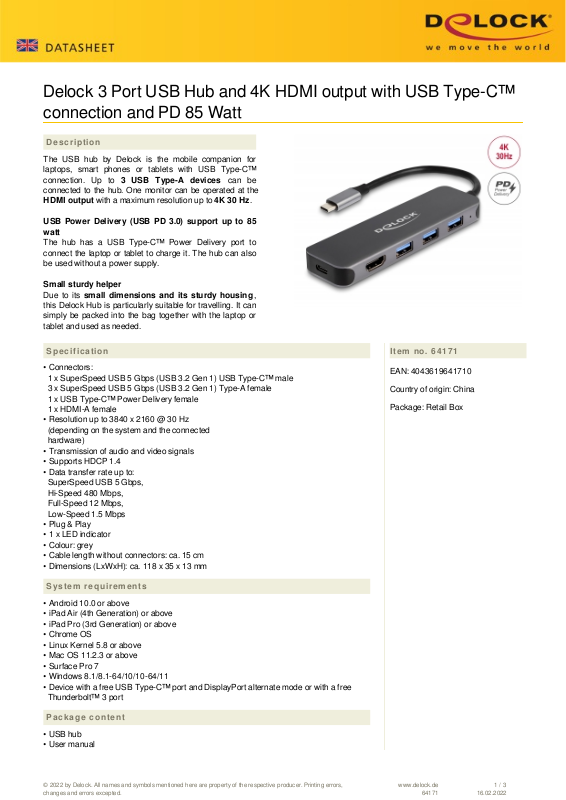

Page 1
Delock 3 Port USB Hub and 4K HDMI output with USB Type-C™
connection and PD 85 Watt
Description
The USB hub by Delock is the mobile companion for
laptops, smart phones or tablets with USB Type-C™
connection. Up to 3 USB Type-A devices can be
connected to the hub. One monitor can be operated at the
HDMI output with a maximum resolution up to 4K 30 Hz.
USB Power Delivery (USB PD 3.0) support up to 85
watt
The hub has a USB Type-C™ Power Delivery port to
connect the laptop or tablet to charge it. The hub can also
be used without a power supply.
Small sturdy helper
Due to its small dimensions and its sturdy housing ,
this Delock Hub is particularly suitable for travelling. It can
simply be packed into the bag together with the laptop or
tablet and used as needed.
Specification
• Connectors:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ male
3 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
1 x USB Type-C™ Power Delivery female
1 x HDMI-A female
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected
hardware)
• Transmission of audio and video signals
• Supports HDCP 1.4
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Plug & Play
• 1 x LED indicator
• Colour: grey
• Cable length without connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 118 x 35 x 13 mm
Item no. 64171
EAN: 4043619641710
Country of origin: China
Package: Retail Box
System requirements
• Android 10.0 or above
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Chrome OS
• Linux Kernel 5.8 or above
• Mac OS 11.2.3 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port
Package content
• USB hub
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64171
1 / 3
16.02.2022
Page 2

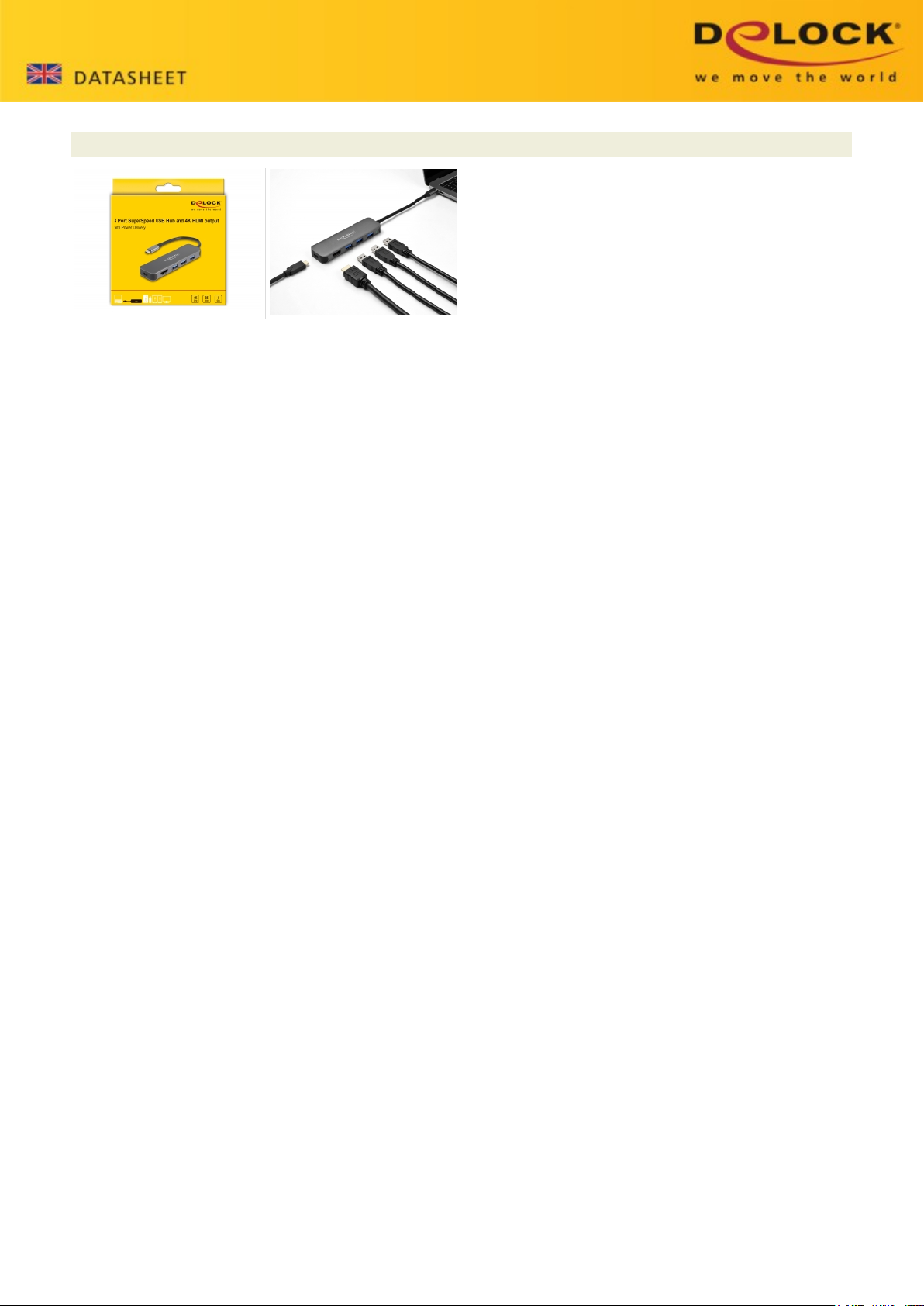

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64171
2 / 3
16.02.2022
Page 3
General
Function: Plug & Play
Supported operating system: Android 10.0 or above
Chrome OS
Linux Kernel 5.8.0 or above
Surface Pro 7
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
iPad Pro (3rd Generation) or above
iPad Air (4th Generation) or above
Mac OS 11.2.3 or above
Windows 11
LED indicator: 1 x
Interface
Connector 1: 1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male
Connector 2: 3 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
connector 3: 1 x HDMI-A female
connector 4: 1 x USB Type-C™ Power Delivery female
Physical characteristics
Length: 118 mm
Width: 35 mm
Height: 13 mm
Colour: grey
Cable length without connectors: 15 cm
