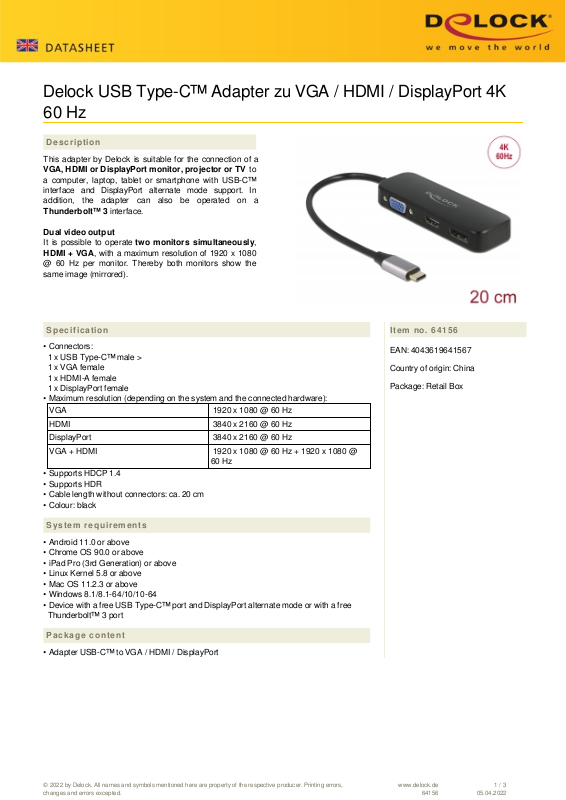

Delock USB Type-C™ Adapter zu VGA / HDMI / DisplayPort 4K
60 Hz
Description
This adapter by Delock is suitable for the connection of a
VGA, HDMI or DisplayPort monitor, projector or TV to
a computer, laptop, tablet or smartphone with USB-C™
interface and DisplayPort alternate mode support. In
addition, the adapter can also be operated on a
Thunderbolt™ 3 interface.
Dual video output
It is possible to operate two monitors simultaneously,
HDMI + VGA, with a maximum resolution of 1920 x 1080
@ 60 Hz per monitor. Thereby both monitors show the
same image (mirrored).
Specification
• Connectors:
1 x USB Type-C™ male >
1 x VGA female
1 x HDMI-A female
1 x DisplayPort female
• Maximum resolution (depending on the system and the connected hardware):
VGA 1920 x 1080 @ 60 Hz
HDMI 3840 x 2160 @ 60 Hz
DisplayPort 3840 x 2160 @ 60 Hz
VGA + HDMI 1920 x 1080 @ 60 Hz + 1920 x 1080 @
60 Hz
• Supports HDCP 1.4
• Supports HDR
• Cable length without connectors: ca. 20 cm
• Colour: black
Item no. 64156
EAN: 4043619641567
Country of origin: China
Package: Retail Box
System requirements
• Android 11.0 or above
• Chrome OS 90.0 or above
• iPad Pro (3rd Generation) or above
• Linux Kernel 5.8 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port
Package content
• Adapter USB-C™ to VGA / HDMI / DisplayPort
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64156
1 / 3
05.04.2022
Page 2

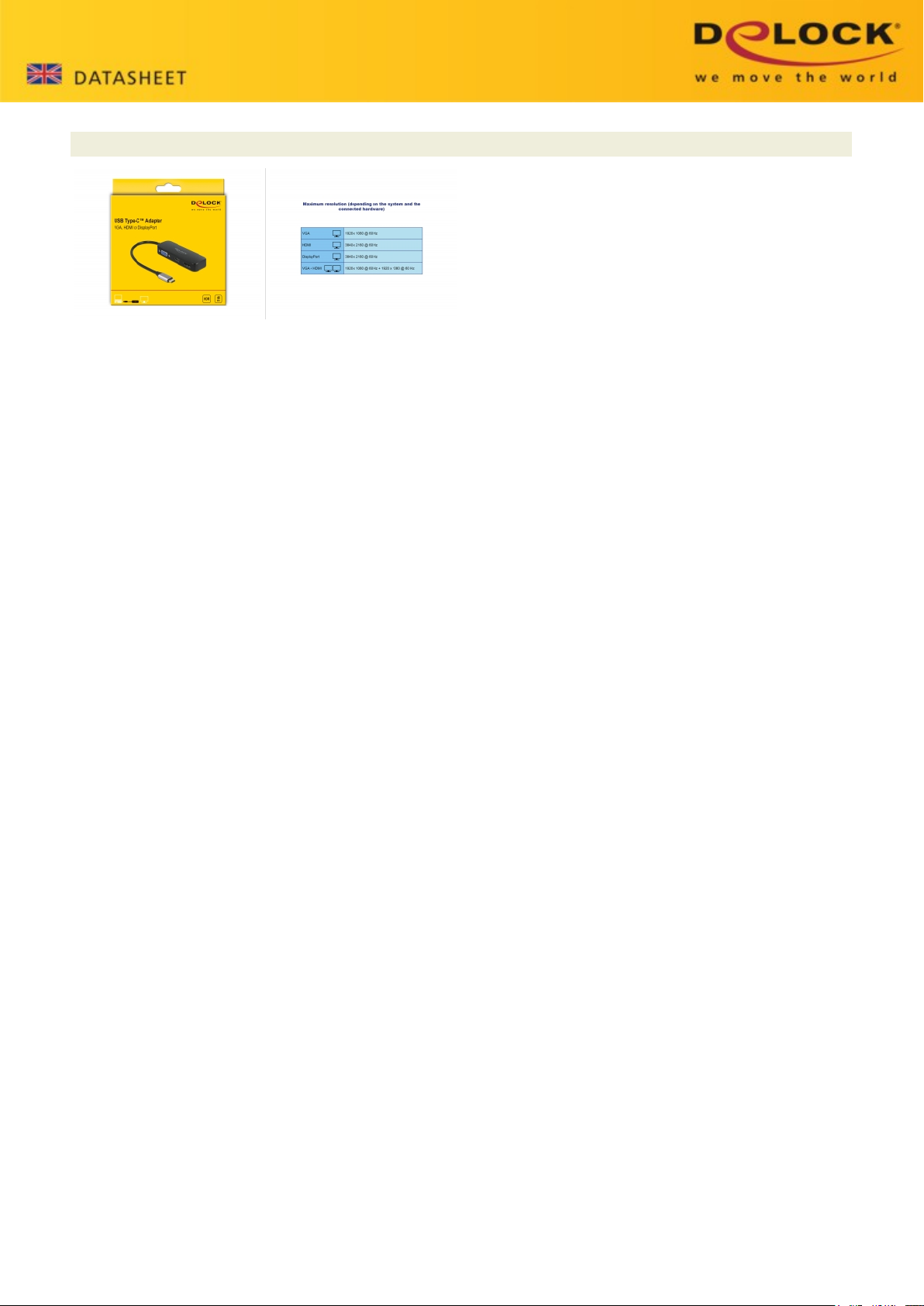

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64156
2 / 3
05.04.2022
Page 3
General
Supported operating system: Linux Kernel 5.8.0 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
iPad Pro (3rd Generation) or above
Mac OS 11.2.3 or above
Chrome OS 90.0 or above
Android 11.0 or above
Interface
Output: 1 x DisplayPort female
1 x HDMI-A female
1 x VGA female
Input: 1 x USB Type-C™ male
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
1920 x 1080 @ 60 Hz
Physical characteristics
Cable length: 20 cm (without connector)
Colour: black
