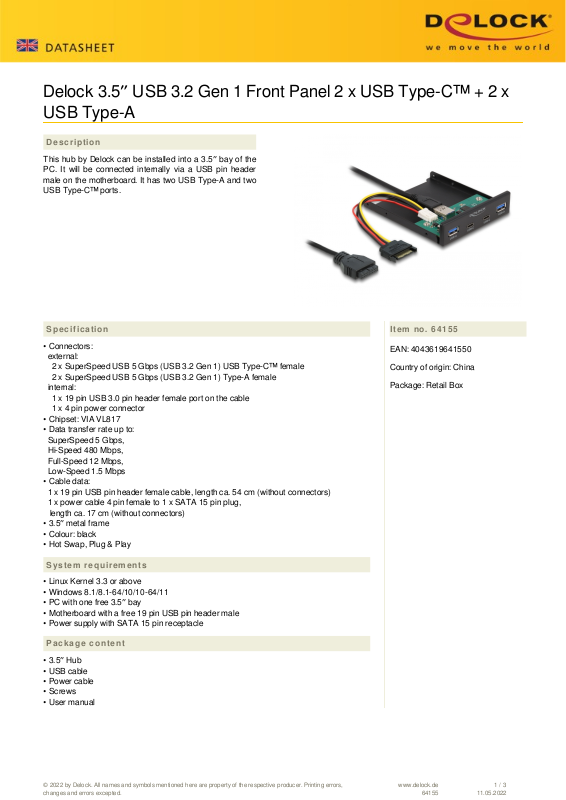

DELOCK 64155 Datasheet

Page 1

Delock 3.5″ USB 3.2 Gen 1 Front Panel 2 x USB Type-C™ + 2 x USB Type-A

Description

This hub by Delock can be installed into a 3.5″ bay of the PC. It will be connected internally via a USB pin header male on the motherboard. It has two USB Type-A and two USB Type-C™ ports.

Specification

• Connectors: external: 2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ female 2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female internal: 1 x 19 pin USB 3.0 pin header female port on the cable 1 x 4 pin power connector

• Chipset: VIA VL817

• Data transfer rate up to: SuperSpeed 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps

• Cable data: 1 x 19 pin USB pin header female cable, length ca. 54 cm (without connectors) 1 x power cable 4 pin female to 1 x SATA 15 pin plug, length ca. 17 cm (without connectors)

• 3.5″ metal frame

• Colour: black

• Hot Swap, Plug & Play

Item no. 64155

EAN: 4043619641550

Country of origin: China

Package: Retail Box

System requirements

• Linux Kernel 3.3 or above

• Windows 8.1/8.1-64/10/10-64/11

• PC with one free 3.5″ bay

• Motherboard with a free 19 pin USB pin header male

• Power supply with SATA 15 pin receptacle

Package content

• 3.5″ Hub

• USB cable

• Power cable

• Screws

• User manual

www.delock.de

64155

1 / 3

11.05.2022

Page 2

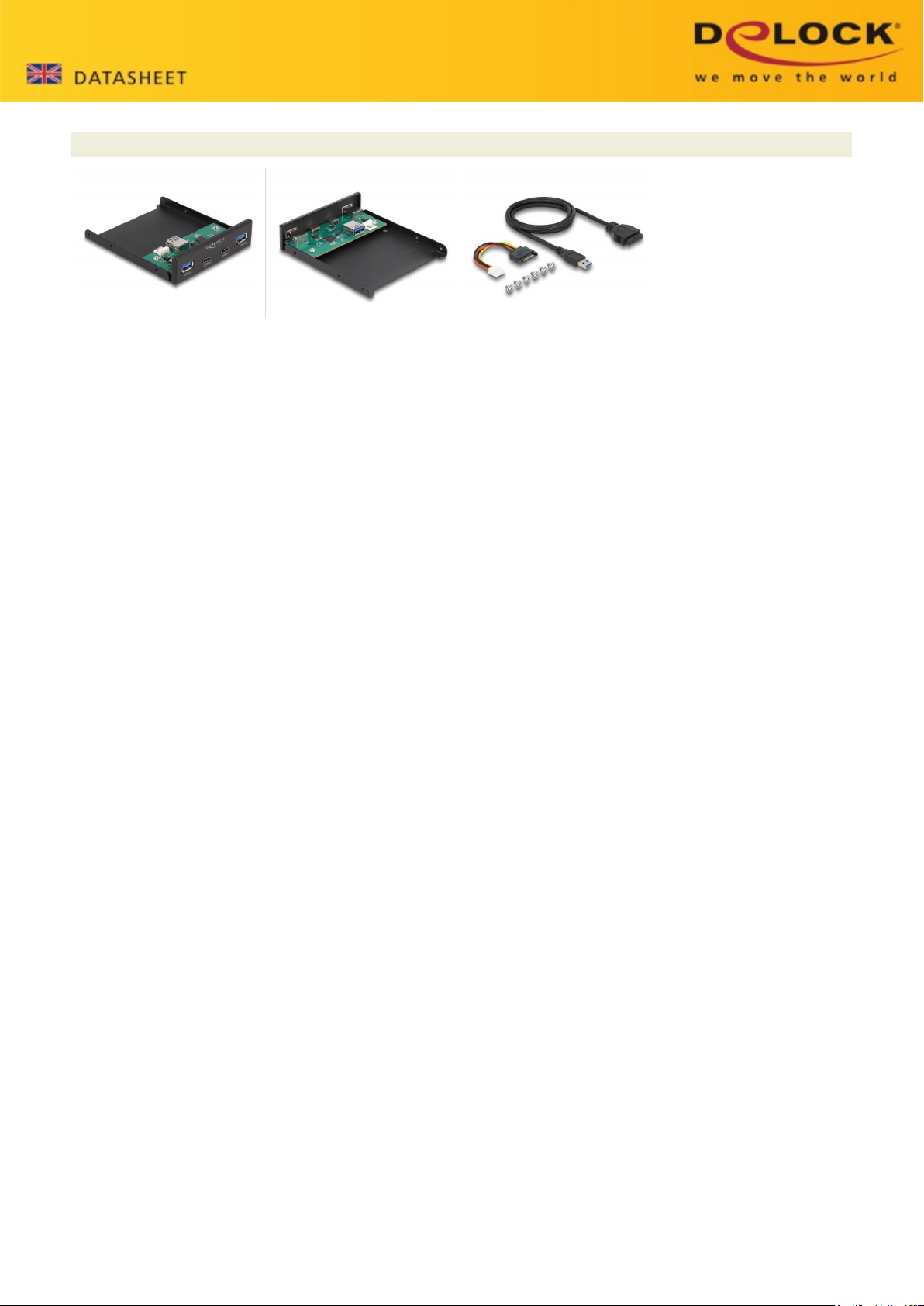

Images

www.delock.de

64155

2 / 3

11.05.2022

Page 3

General

Form factor: 3.5" Function: Hot Swap

Plug & Play

Supported operating system: Linux Kernel 3.3 or above

Windows 10 64-bit Windows 8.1 64-bit

Windows 11

Interface

External: 2 x USB Type-C™ Buchse

2 x USB 3.0 Type-A female Internal: 1 x 4 pin power connector

1 x 19 pin USB 3.0 pin header female

Technical characteristics

Chipset: VIA VL817 Data transfer rate: USB 3.0 up to 5 Gb/s

Physical characteristics

Housing material: metal Length: 102 mm Width: 95 mm Height: 26 mm Colour: black

www.delock.de

64155

3 / 3

11.05.2022
