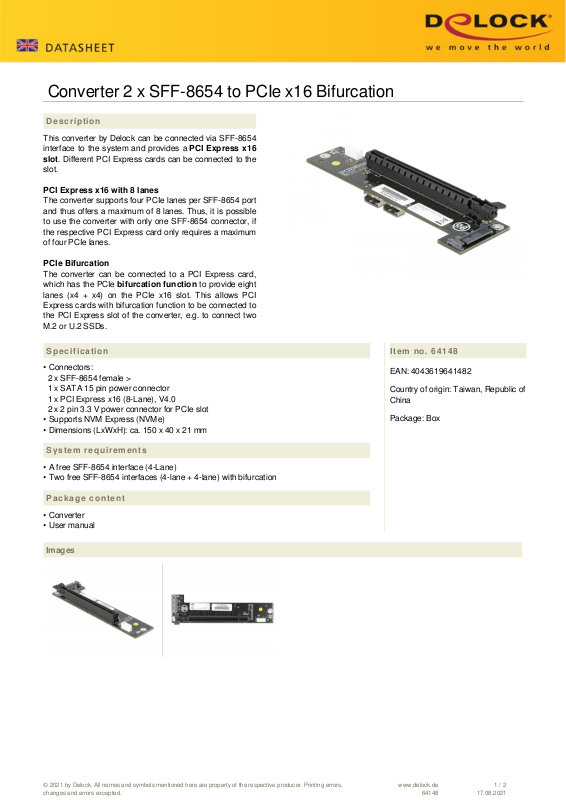

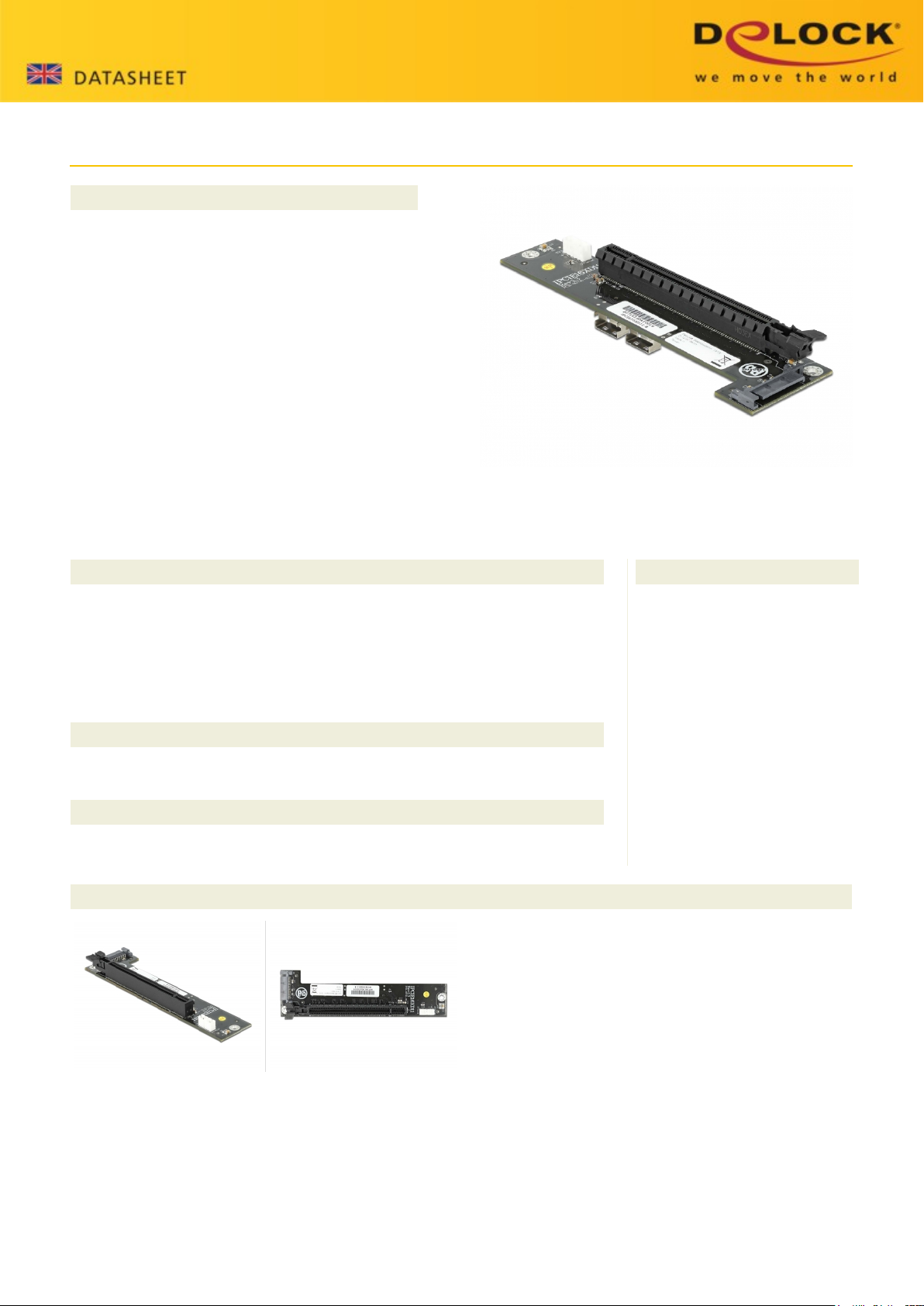

Converter 2 x SFF-8654 to PCIe x16 Bifurcation
Description
This converter by Delock can be connected via SFF-8654
interface to the system and provides aPCI Express x16
slot. Different PCI Express cards can be connected to the
slot.
PCI Express x16 with 8 lanes
The converter supports four PCIe lanes per SFF-8654 port
and thus offers a maximum of 8 lanes. Thus, it is possible
to use the converter with only one SFF-8654 connector, if
the respective PCI Express card only requires a maximum
of four PCIe lanes.
PCIe Bifurcation
The converter can be connected to a PCI Express card,
which has the PCIe bifurcation function to provide eight
lanes (x4 + x4) on the PCIe x16 slot. This allows PCI
Express cards with bifurcation function to be connected to
the PCI Express slot of the converter, e.g. to connect two
M.2 or U.2 SSDs.
Specification
• Connectors:
2 x SFF-8654 female >
1 x SATA 15 pin power connector
1 x PCI Express x16 (8-Lane), V4.0
2 x 2 pin 3.3 V power connector for PCIe slot
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 150 x 40 x 21 mm
Item no. 64148
EAN: 4043619641482
Country of origin: Taiwan, Republic of
China
Package: Box
System requirements
• A free SFF-8654 interface (4-Lane)
• Two free SFF-8654 interfaces (4-lane + 4-lane) with bifurcation
Package content
• Converter
• User manual
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64148
1 / 2
17.08.2021
Page 2
General
Function: NVM Express (NVMe)
Interface
Connector 1: 2 x SFF-8654 female
Connector 2: 1 x SATA 15 pin plug
connector 3: 1 x PCI Express x16 (8-Lane), V4.0
connector 4: 2 x 2 pin 3.3 V power connector for PCIe slot
