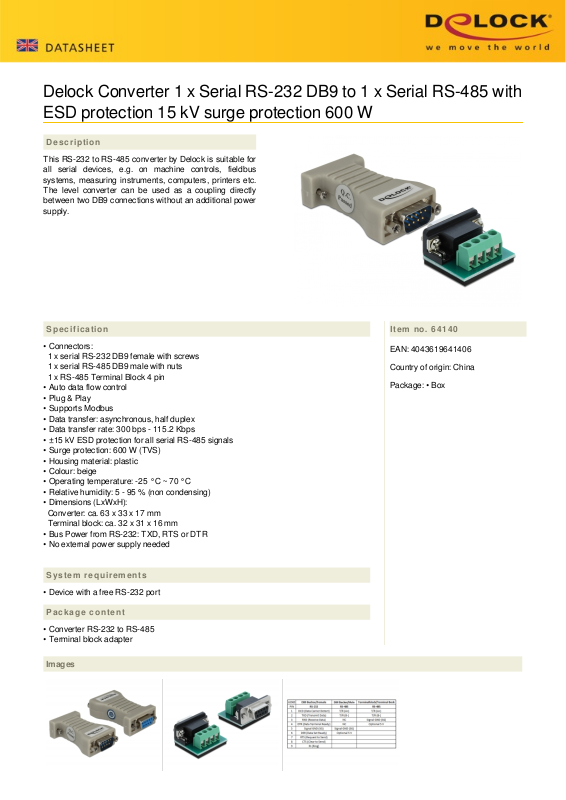

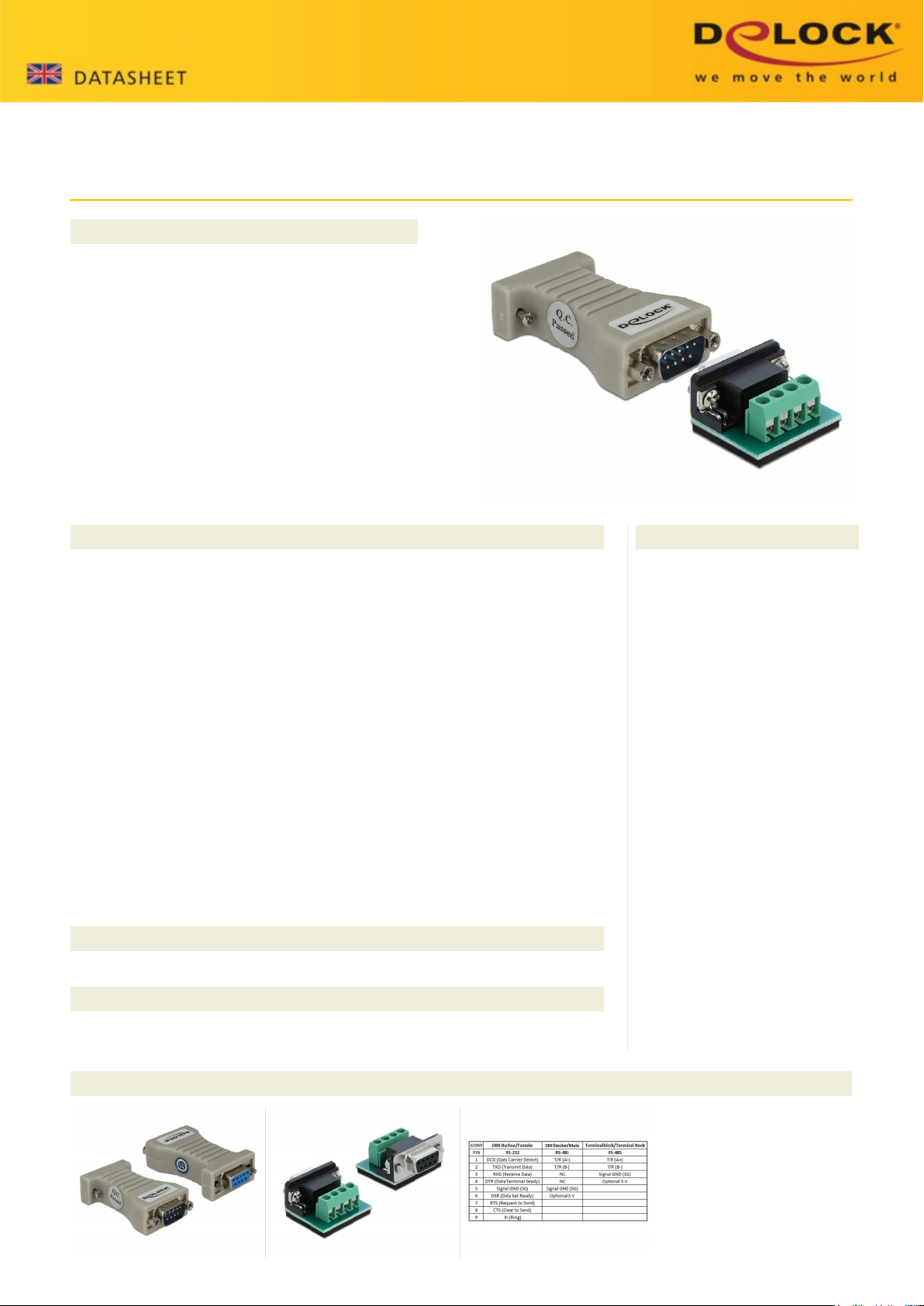

Page 1
Delock Converter 1 x Serial RS-232 DB9 to 1 x Serial RS-485 with
ESD protection 15 kV surge protection 600 W
Description
This RS-232 to RS-485 converter by Delock is suitable for
all serial devices, e.g. on machine controls, fieldbus
systems, measuring instruments, computers, printers etc.
The level converter can be used as a coupling directly
between two DB9 connections without an additional power
supply.
Specification
• Connectors:
1 x serial RS-232 DB9 female with screws
1 x serial RS-485 DB9 male with nuts
1 x RS-485 Terminal Block 4 pin
• Auto data flow control
• Plug & Play
• Supports Modbus
• Data transfer: asynchronous, half duplex
• Data transfer rate: 300 bps - 115.2 Kbps
• ±15 kV ESD protection for all serial RS-485 signals
• Surge protection: 600 W (TVS)
• Housing material: plastic
• Colour: beige
• Operating temperature: -25 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Dimensions (LxWxH):
Converter: ca. 63 x 33 x 17 mm
Terminal block: ca. 32 x 31 x 16 mm
• Bus Power from RS-232: TXD, RTS or DTR
• No external power supply needed
Item no. 64140
EAN: 4043619641406
Country of origin: China
Package: • Box
System requirements
• Device with a free RS-232 port
Package content
• Converter RS-232 to RS-485
• Terminal block adapter
Images
Page 2
General
Function: Plug & Play
Auto RTS Control
Specification: RS-232 (EIA / TIA)
RS-422 / RS-485 (EIA / TIA)
Supported operating system: OS independent, no driver installation necessary
Protection: ESD (Electrostatic Discharge)
Surge Protection 600 W
Interface
Connector 1: 1 x Serial RS-232 DB9 female
Connector 2: 1 x Serial RS-485 DB9 male
Technical characteristics
Data transfer rate: 300 bps - 115.2 Kbps
Operating temperature: -25 °C ~ 70 °C
Humidity: 5 ~ 95 %
Data transmission: asynchronous
Half duplex
Voltage: RS-232 Bus Power TXD, RTS or DTR
Physical characteristics
Housing material: Plastic
Pin finishing: gold-plated
Screw type: #4-40 UNC
Length: 63 mm
Width: 33 mm
Height: 17 mm
