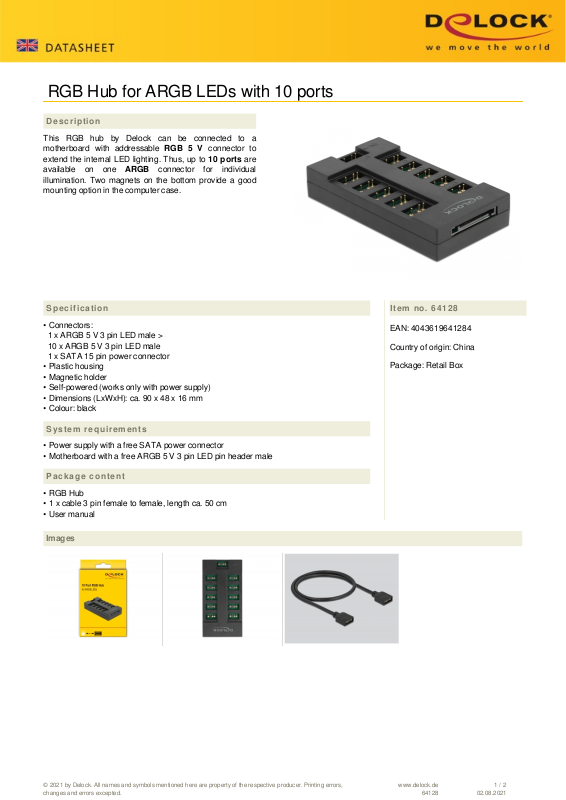

RGB Hub for ARGB LEDs with 10 ports
Description
This RGB hub by Delock can be connected to a
motherboard with addressable RGB 5 V connector to
extend the internal LED lighting. Thus, up to 10 ports are
available on one ARGB connector for individual
illumination. Two magnets on the bottom provide a good
mounting option in the computer case.
Specification
• Connectors:
1 x ARGB 5 V 3 pin LED male >
10 x ARGB 5 V 3 pin LED male
1 x SATA 15 pin power connector
• Plastic housing
• Magnetic holder
• Self-powered (works only with power supply)
• Dimensions (LxWxH): ca. 90 x 48 x 16 mm
• Colour: black
Item no. 64128
EAN: 4043619641284
Country of origin: China
Package: Retail Box
System requirements
• Power supply with a free SATA power connector
• Motherboard with a free ARGB 5 V 3 pin LED pin header male
Package content
• RGB Hub
• 1 x cable 3 pin female to female, length ca. 50 cm
• User manual
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64128
1 / 2
02.08.2021
Page 2
Interface
Connector 1: 1 x ARGB 5 V 3 pin LED male
Connector 2: 10 x ARGB 5 V 3 pin LED male
connector 3: 1 x SATA 15 pin power connector
Physical characteristics
Length: 90 mm
Width: 48 mm
Height: 16 mm
Colour: black
