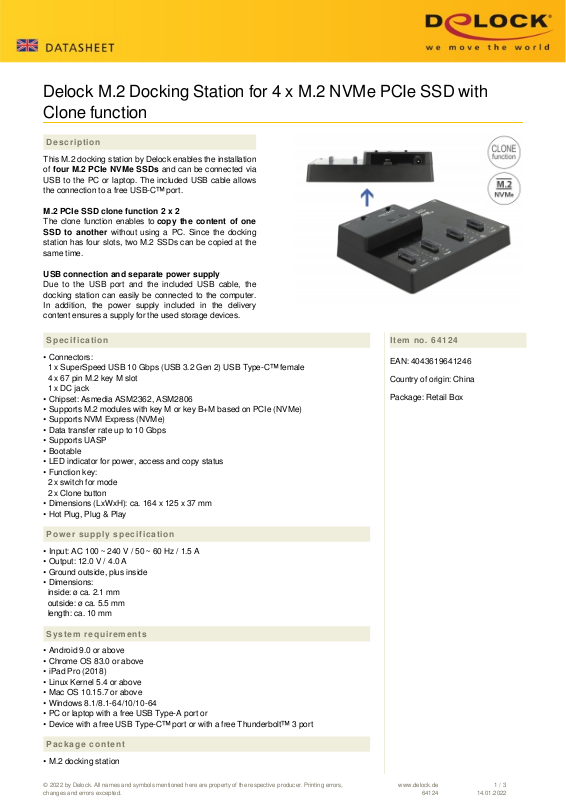

Page 1
Delock M.2 Docking Station for 4 x M.2 NVMe PCIe SSD with
Clone function
Description
This M.2 docking station by Delock enables the installation
of four M.2 PCIe NVMe SSDs and can be connected via
USB to the PC or laptop. The included USB cable allows
the connection to a free USB-C™ port.
M.2 PCIe SSD clone function 2 x 2
The clone function enables to copy the content of one
SSD to another without using a PC. Since the docking
station has four slots, two M.2 SSDs can be copied at the
same time.
USB connection and separate power supply
Due to the USB port and the included USB cable, the
docking station can easily be connected to the computer.
In addition, the power supply included in the delivery
content ensures a supply for the used storage devices.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
4 x 67 pin M.2 key M slot
1 x DC jack
• Chipset: Asmedia ASM2362, ASM2806
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• Supports UASP
• Bootable
• LED indicator for power, access and copy status
• Function key:
2 x switch for mode
2 x Clone button
• Dimensions (LxWxH): ca. 164 x 125 x 37 mm
• Hot Plug, Plug & Play
Item no. 64124
EAN: 4043619641246
Country of origin: China
Package: Retail Box
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 4.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Android 9.0 or above
• Chrome OS 83.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.7 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port or
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• M.2 docking station
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64124
1 / 3
14.01.2022
Page 2
• Cable USB-C™ male to USB-C™ male, length ca. 45 cm
• Cable USB-C™ male to USB Type-A male, length ca. 80 cm
• External power supply
• User manual
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64124
2 / 3
14.01.2022
Page 3
General
Function: bootable
Clone Function
Supported operating system: Android 9.0 or above
Chrome OS 83.0 or above
Linux Kernel 5.4 or above
Mac OS 10.15.7 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
iPad Pro (2018)
Interface
Connector 1: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
Connector 2: 4 x 67 pin M.2 key M slot
connector 3: 1 x DC jack
Technical characteristics
Chipset: Asmedia ASM2362
Physical characteristics
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
64124
3 / 3
14.01.2022
