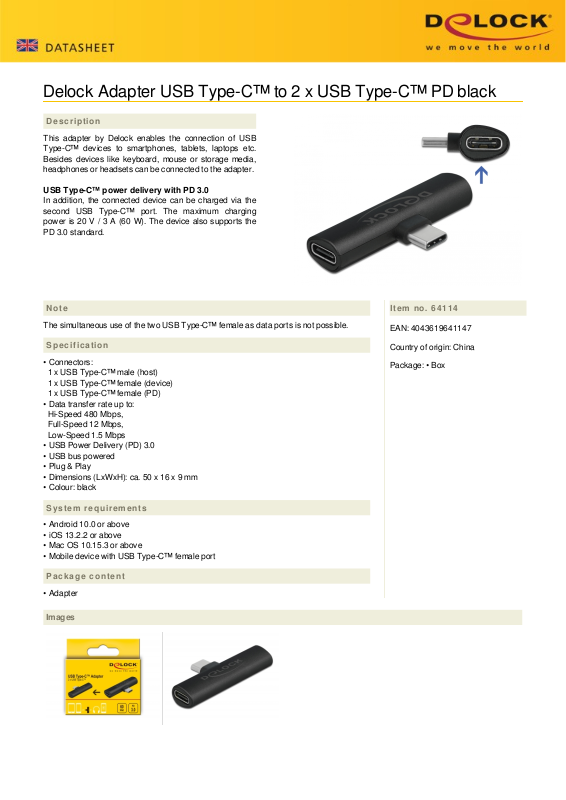

DELOCK 64114 Datasheet

Page 1

Delock Adapter USB Type-C™ to 2 x USB Type-C™ PD black

Description

This adapter by Delock enables the connection of USB Type-C™ devices to smartphones, tablets, laptops etc. Besides devices like keyboard, mouse or storage media, headphones or headsets can be connected to the adapter.

USB Type-C™ power delivery with PD 3.0

In addition, the connected device can be charged via the second USB Type-C™ port. The maximum charging power is 20 V / 3 A (60 W). The device also supports the PD 3.0 standard.

Note

The simultaneous use of the two USB Type-C™ female as data ports is not possible.

Specification

• Connectors: 1 x USB Type-C™ male (host) 1 x USB Type-C™ female (device) 1 x USB Type-C™ female (PD)

• Data transfer rate up to: Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps

• USB Power Delivery (PD) 3.0

• USB bus powered

• Plug & Play

• Dimensions (LxWxH): ca. 50 x 16 x 9 mm

• Colour: black

Item no. 64114

EAN: 4043619641147

Country of origin: China

Package: • Box

System requirements

• Android 10.0 or above

• iOS 13.2.2 or above

• Mac OS 10.15.3 or above

• Mobile device with USB Type-C™ female port

Package content

• Adapter

Images

Page 2

Interface

Output: 1 x USB Type-C™ female (data transfer)

1 x USB Type-C™ female (power supply) Input: 1 x USB Type-C™ male

Physical characteristics

Length: 50 mm Width: 16 mm Height: 9 mm Colour: black
