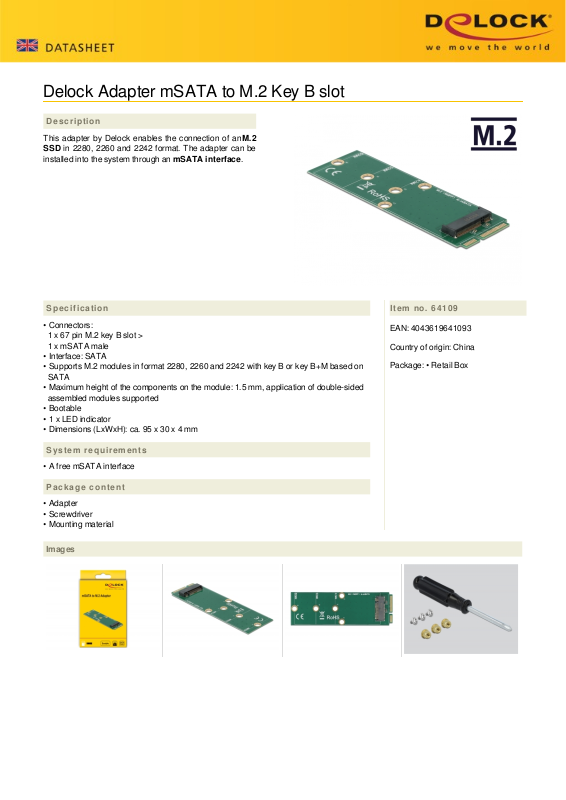

DELOCK 64109 Datasheet

Page 1

Delock Adapter mSATA to M.2 Key B slot

Description

This adapter by Delock enables the connection of anM.2 SSD in 2280, 2260 and 2242 format. The adapter can be installed into the system through an mSATA interface.

Specification

• Connectors: 1 x 67 pin M.2 key B slot > 1 x mSATA male

• Interface: SATA

• Supports M.2 modules in format 2280, 2260 and 2242 with key B or key B+M based on SATA

• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported

• Bootable

• 1 x LED indicator

• Dimensions (LxWxH): ca. 95 x 30 x 4 mm

Item no. 64109

EAN: 4043619641093

Country of origin: China

Package: • Retail Box

System requirements

• A free mSATA interface

Package content

• Adapter

• Screwdriver

• Mounting material

Images

Page 2

General

Function: bootable Supported module: M.2 modules in format 2280, 2260 and 2242 with key B or key B+M based on SATA

Interface

Connector 1: 1 x mSATA male Connector 2: 1 x 67 pin M.2 key B slot

Physical characteristics

Length: 95 mm Width: 30 mm Height: 4 mm
