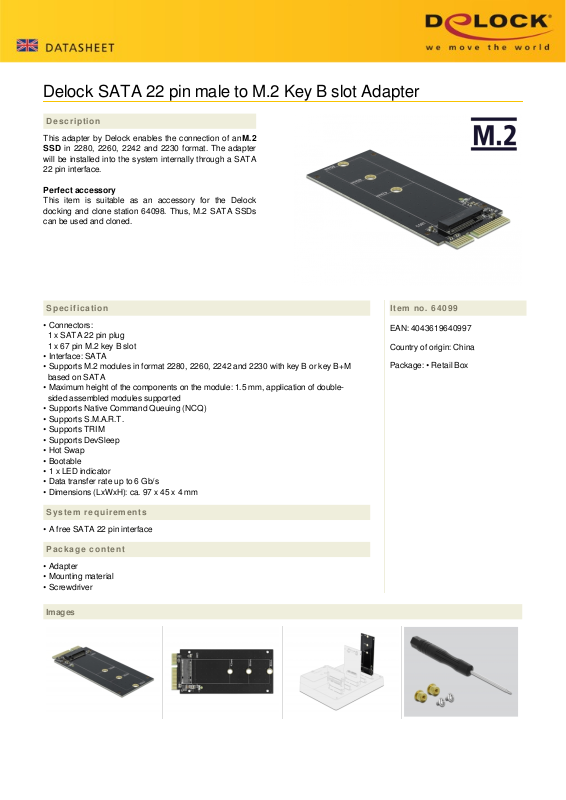

Page 1
Delock SATA 22 pin male to M.2 Key B slot Adapter
Description
This adapter by Delock enables the connection of anM.2
SSD in 2280, 2260, 2242 and 2230 format. The adapter
will be installed into the system internally through a SATA
22 pin interface.
Perfect accessory
This item is suitable as an accessory for the Delock
docking and clone station 64098. Thus, M.2 SATA SSDs
can be used and cloned.
Specification
• Connectors:
1 x SATA 22 pin plug
1 x 67 pin M.2 key B slot
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
• 1 x LED indicator
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 97 x 45 x 4 mm
Item no. 64099
EAN: 4043619640997
Country of origin: China
Package: • Retail Box
System requirements
• A free SATA 22 pin interface
Package content
• Adapter
• Mounting material
• Screwdriver
Images
Page 2
General
Function: bootable
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
Maximum height of the components on
the module:
Interface
Connector 1: 1 x SATA 6 Gb/s 22 pin plug
Connector 2: 1 x 67 pin M.2 key B slot
Physical characteristics
Length: 97 mm
Width: 45 mm
Height: 4 mm
1.5 mm application of double-sided assembled modules supported
