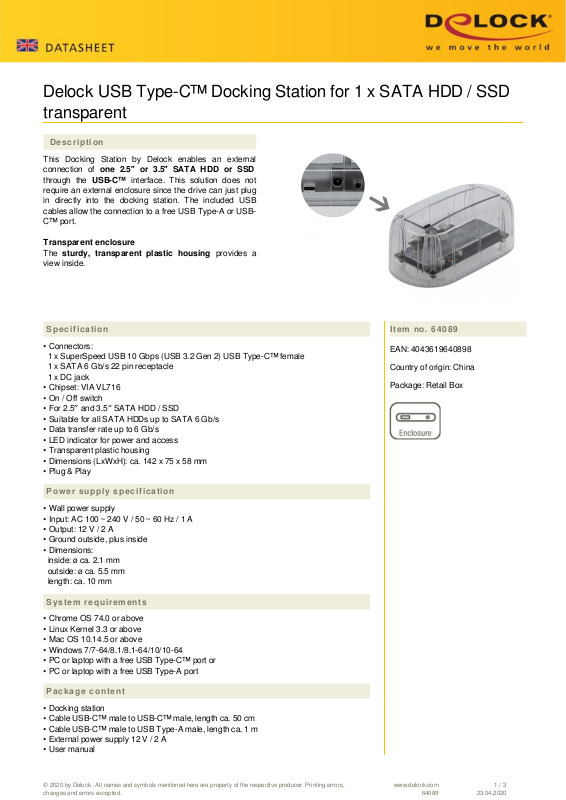

Page 1
Delock USB Type-C™ Docking Station for 1 x SATA HDD / SSD
transparent
Description
This Docking Station by Delock enables an external
connection of one 2.5″ or 3.5″ SATA HDD or SSD
through the USB-C™ interface. This solution does not
require an external enclosure since the drive can just plug
in directly into the docking station. The included USB
cables allow the connection to a free USB Type-A or USBC™ port.
Transparent enclosure
The sturdy, transparent plastic housing provides a
view inside.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Chipset: VIA VL716
• On / Off switch
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 6 Gb/s
• LED indicator for power and access
• Transparent plastic housing
• Dimensions (LxWxH): ca. 142 x 75 x 58 mm
• Plug & Play
Item no. 64089
EAN: 4043619640898
Country of origin: China
Package: Retail Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Chrome OS 74.0 or above
• Linux Kernel 3.3 or above
• Mac OS 10.14.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port or
• PC or laptop with a free USB Type-A port
Package content
• Docking station
• Cable USB-C™ male to USB-C™ male, length ca. 50 cm
• Cable USB-C™ male to USB Type-A male, length ca. 1 m
• External power supply 12 V / 2 A
• User manual
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
64089
1 / 3
23.04.2020

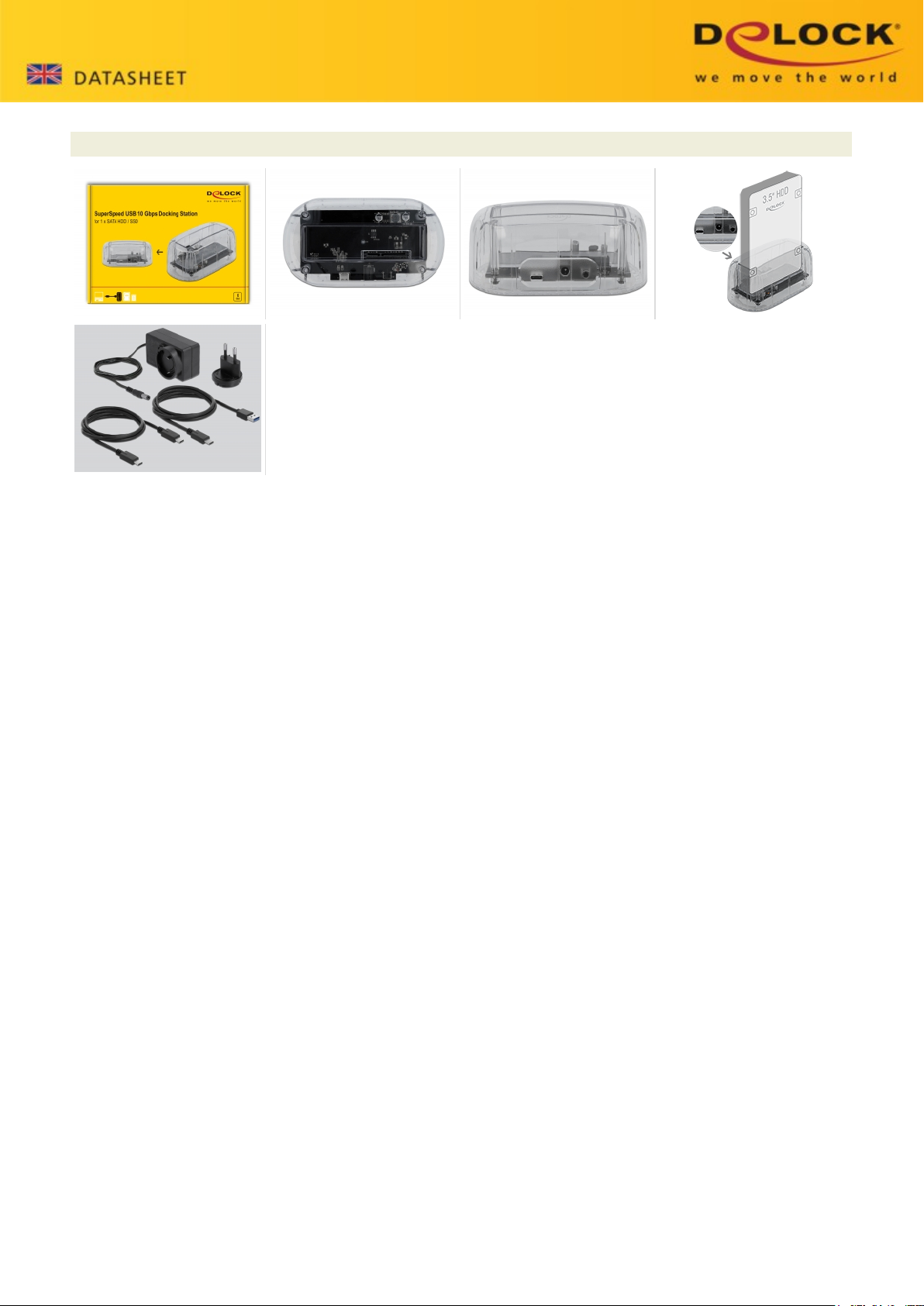

Page 2
Images
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
64089
2 / 3
23.04.2020
Page 3
General
Function: Plug & Play
Suitable for data medium: 2.5″
3.5″
SSD or HDD
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.3 or above
Mac OS 10.14.5 or above
Chrome OS 74.0 or above
Interface
External: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x DC jack
Internal: 1 x SATA 6 Gb/s 22 pin receptacle
Technical characteristics
Chipset: VIA VL716
Physical characteristics
Housing material: Plastic
Length: 142 mm
Width: 75 mm
Height: 58 mm
Colour: transparent
