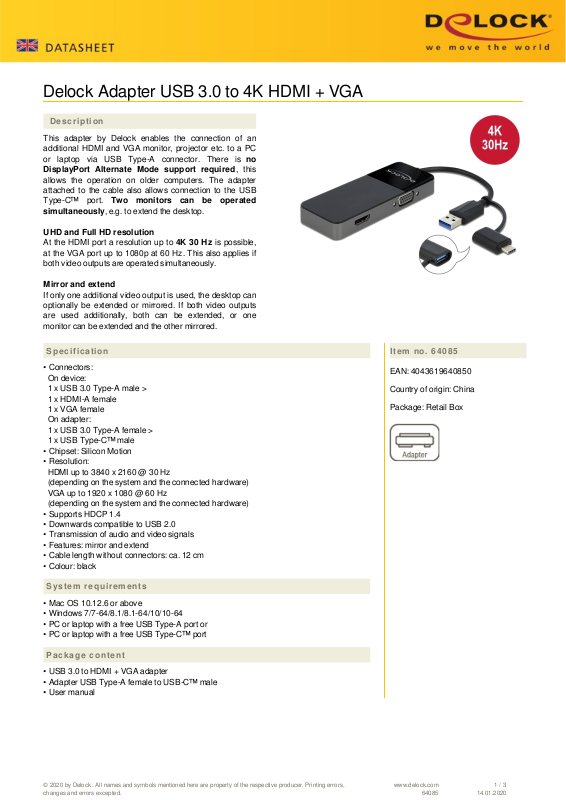

Page 1
Delock Adapter USB 3.0 to 4K HDMI + VGA
Description
This adapter by Delock enables the connection of an
additional HDMI and VGA monitor, projector etc. to a PC
or laptop via USB Type-A connector. There is no
DisplayPort Alternate Mode support required, this
allows the operation on older computers. The adapter
attached to the cable also allows connection to the USB
Type-C™ port. Two monitors can be operated
simultaneously, e.g. to extend the desktop.
UHD and Full HD resolution
At the HDMI port a resolution up to 4K 30 Hz is possible,
at the VGA port up to 1080p at 60 Hz. This also applies if
both video outputs are operated simultaneously.
Mirror and extend
If only one additional video output is used, the desktop can
optionally be extended or mirrored. If both video outputs
are used additionally, both can be extended, or one
monitor can be extended and the other mirrored.
Specification
• Connectors:
On device:
1 x USB 3.0 Type-A male >
1 x HDMI-A female
1 x VGA female
On adapter:
1 x USB 3.0 Type-A female >
1 x USB Type-C™ male
• Chipset: Silicon Motion
• Resolution:
HDMI up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
VGA up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP 1.4
• Downwards compatible to USB 2.0
• Transmission of audio and video signals
• Features: mirror and extend
• Cable length without connectors: ca. 12 cm
• Colour: black
Item no. 64085
EAN: 4043619640850
Country of origin: China
Package: Retail Box
System requirements
• Mac OS 10.12.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port or
• PC or laptop with a free USB Type-C™ port
Package content
• USB 3.0 to HDMI + VGA adapter
• Adapter USB Type-A female to USB-C™ male
• User manual
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
64085
1 / 3
14.01.2020
Page 2

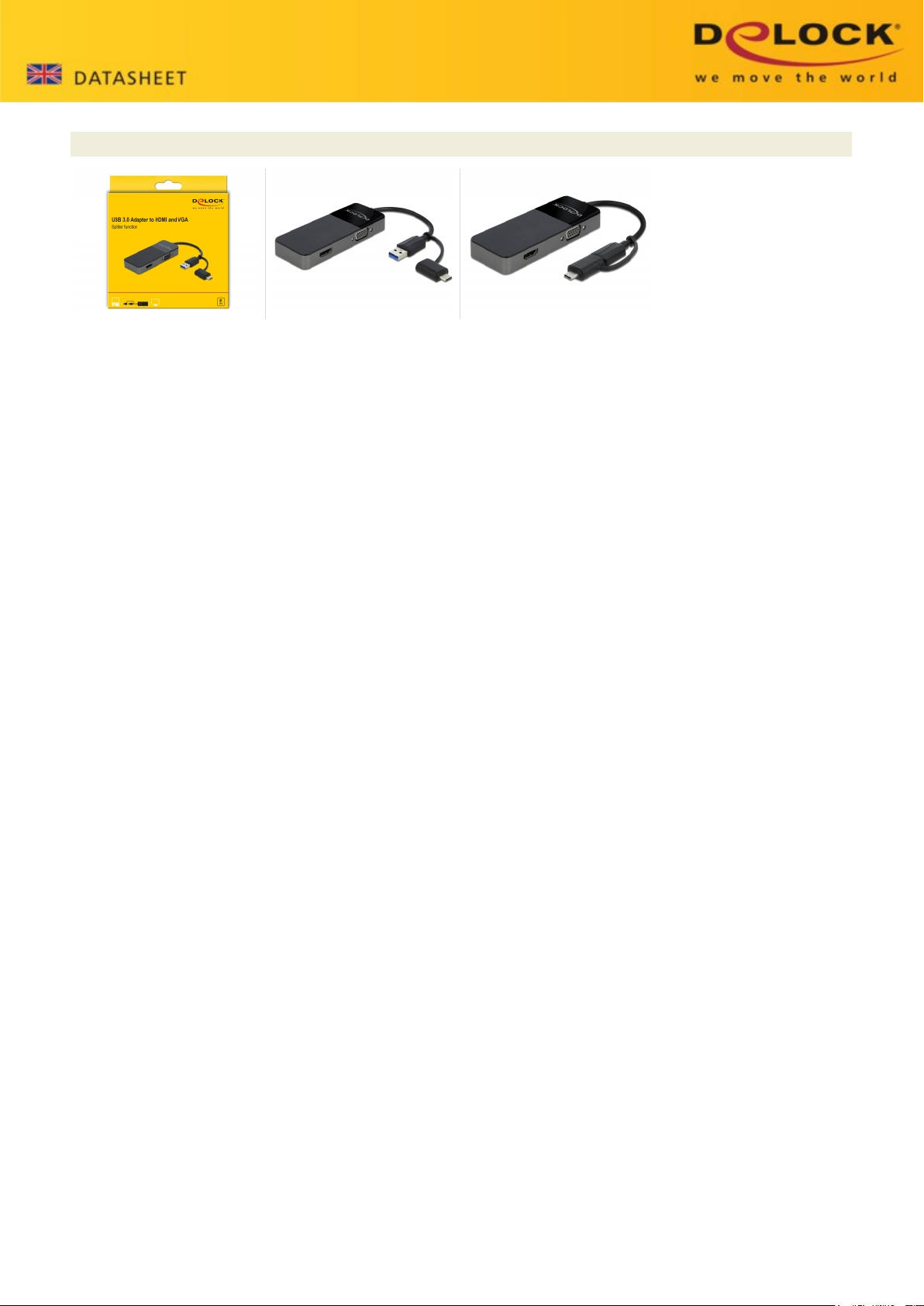

Images
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
64085
2 / 3
14.01.2020
Page 3
General
Function: mirror and extend
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Mac OS 10.12.6 or above
Interface
Output: 1 x HDMI-A 19 pin female
1 x VGA 15 pin female
Input: 1 x USB 3.0 Type-A male
1 x USB Type-C™ male
Technical characteristics
Chipset: Silicon Motion
Maximum screen resolution: 3840 x 2160 @ 30 Hz
1920 x 1080 @ 60 Hz
Physical characteristics
Cable length: 12 cm
Colour: black
