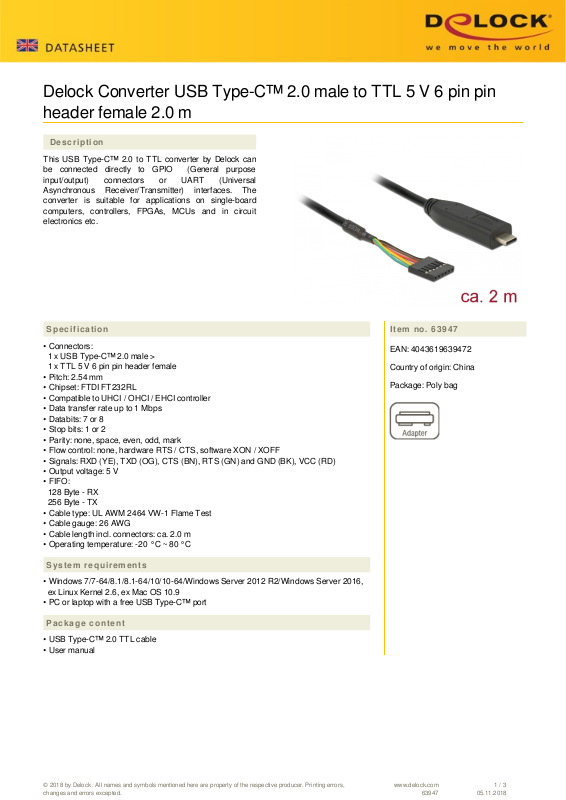

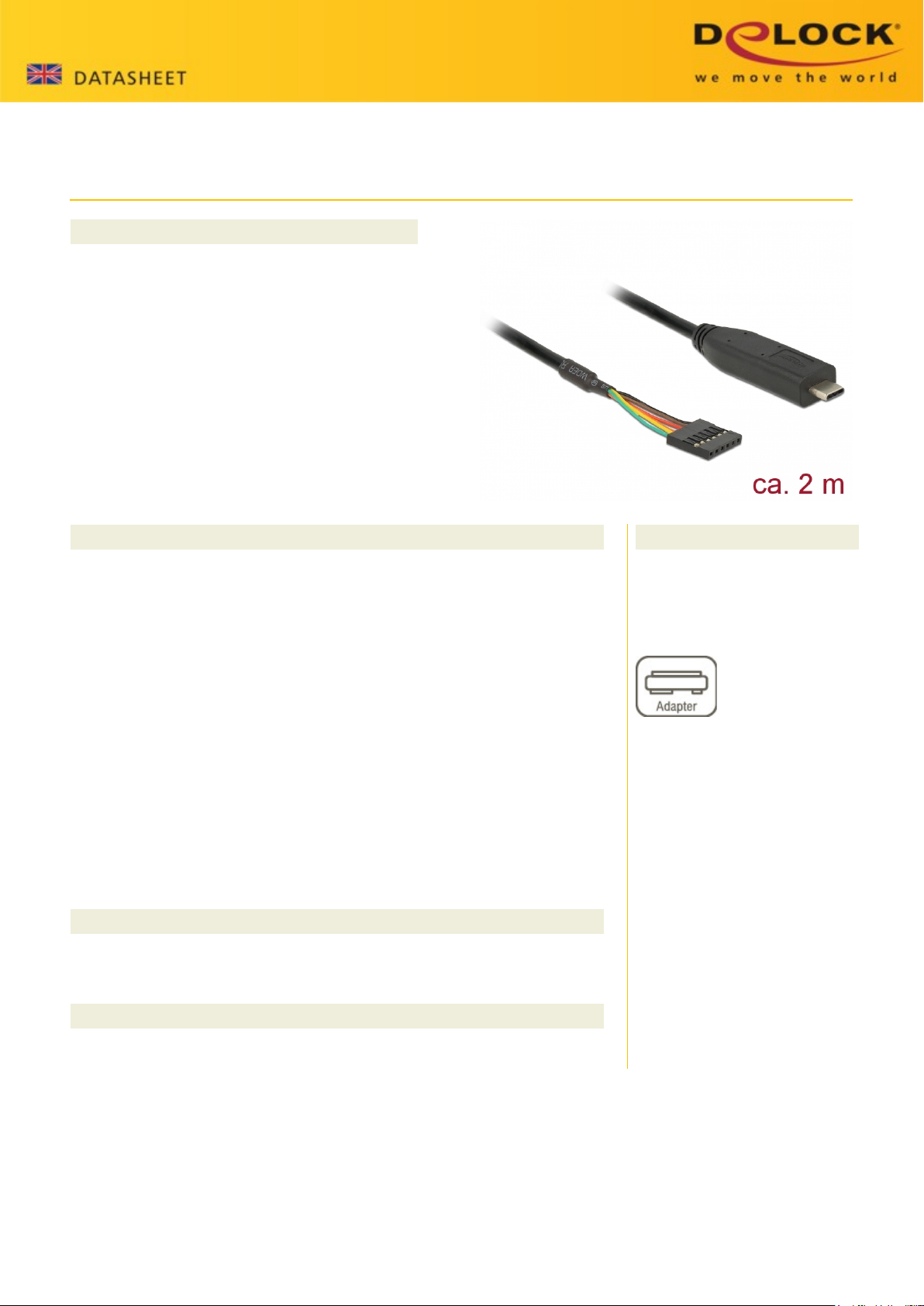

Delock Converter USB Type-C™ 2.0 male to TTL 5 V 6 pin pin
header female 2.0 m
Description
This USB Type-C™ 2.0 to TTL converter by Delock can
be connected directly to GPIO (General purpose
input/output) connectors or UART (Universal
Asynchronous Receiver/Transmitter) interfaces. The
converter is suitable for applications on single-board
computers, controllers, FPGAs, MCUs and in circuit
electronics etc.
Specification
• Connectors:
1 x USB Type-C™ 2.0 male >
1 x TTL 5 V 6 pin pin header female
• Pitch: 2.54 mm
• Chipset: FTDI FT232RL
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 1 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Signals: RXD (YE), TXD (OG), CTS (BN), RTS (GN) and GND (BK), VCC (RD)
• Output voltage: 5 V
• FIFO:
128 Byte - RX
256 Byte - TX
• Cable type: UL AWM 2464 VW-1 Flame Test
• Cable gauge: 26 AWG
• Cable length incl. connectors: ca. 2.0 m
• Operating temperature: -20 °C ~ 80 °C
Item no. 63947
EAN: 4043619639472
Country of origin: China
Package: Poly bag
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64/Windows Server 2012 R2/Windows Server 2016,
ex Linux Kernel 2.6, ex Mac OS 10.9
• PC or laptop with a free USB Type-C™ port
Package content
• USB Type-C™ 2.0 TTL cable
• User manual
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
63947
1 / 3
05.11.2018
Page 2

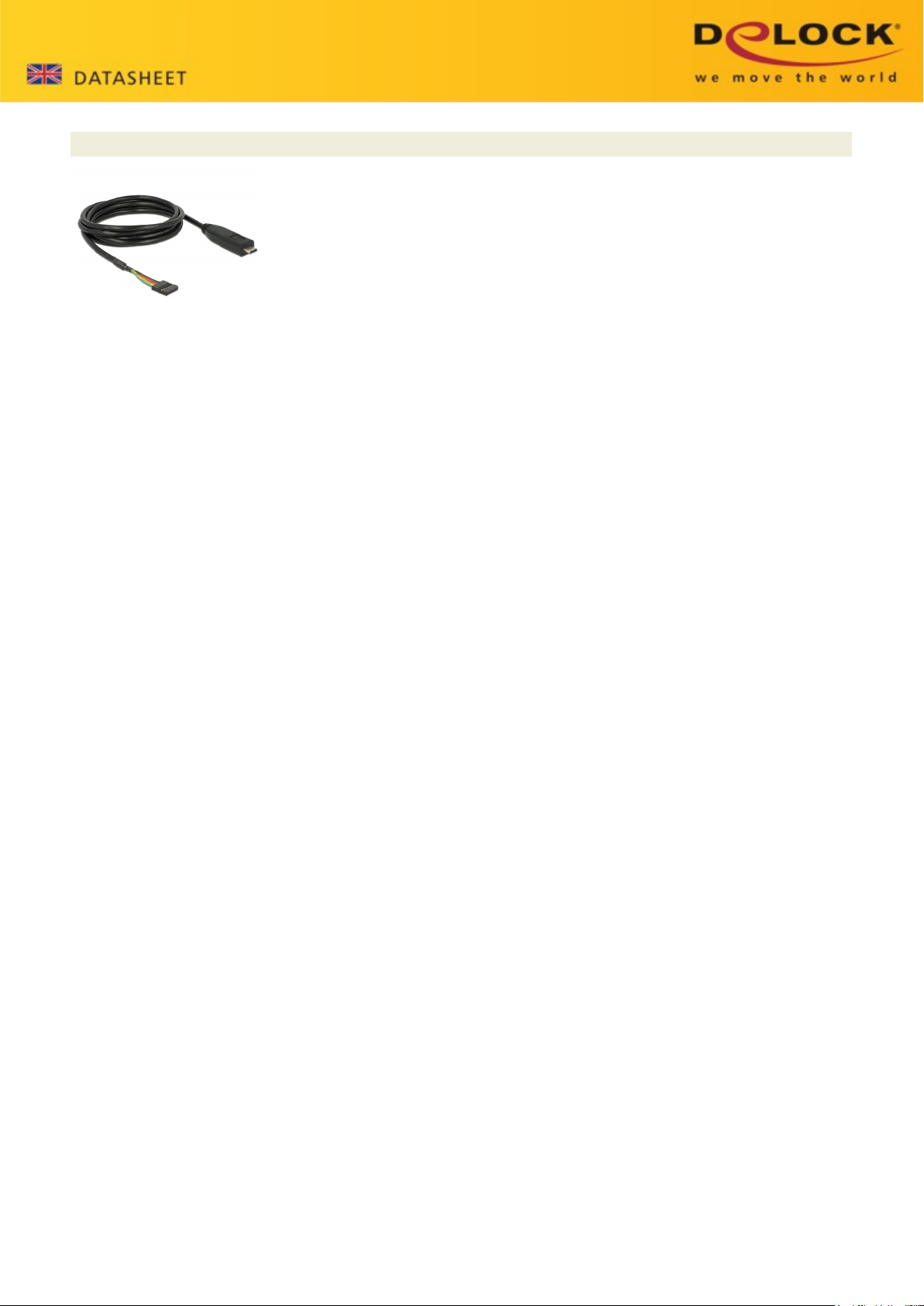

Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
63947
2 / 3
05.11.2018
Page 3
General
Function: Plug & Play
Specification: USB 1.1
TTL/CMOS
USB 2.0
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows Server 2012 R2
Windows Server 2016
ex Linux Kernel 2.6.38
ex Mac OS 10.9
Interface
Connector 1: 1 x USB 2.0 Type-C™ male
Connector 2: 1 x 6 pin pin header pitch: 2,54 mm
Technical characteristics
Chipset: FTDI FT232RL
Data transfer rate: up to 921.6 Kbps
FIFO: 128 byte
256 Byte
Operating temperature: -40 °C ~ 80 °C
Signal transmission: TxD, RxD, RTS, CTS
Data transmission: asynchronous
full duplex
Voltage: USB Bus powered (no additional power supply required)
5 V output voltage
Physical characteristics
Cable length incl. connector: 2 m
Colour: black
