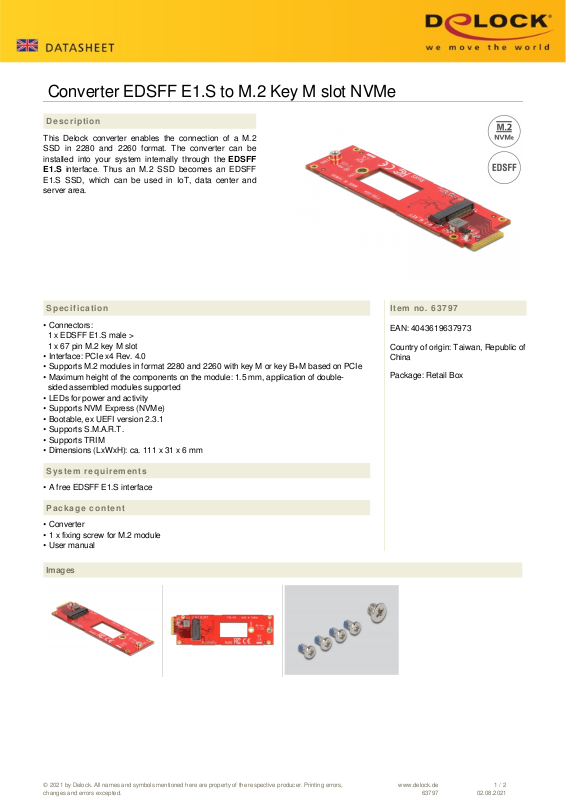

Converter EDSFF E1.S to M.2 Key M slot NVMe
Description
This Delock converter enables the connection of a M.2
SSD in 2280 and 2260 format. The converter can be
installed into your system internally through the EDSFF
E1.S interface. Thus an M.2 SSD becomes an EDSFF
E1.S SSD, which can be used in IoT, data center and
server area.
Specification
• Connectors:
1 x EDSFF E1.S male >
1 x 67 pin M.2 key M slot
• Interface: PCIe x4 Rev. 4.0
• Supports M.2 modules in format 2280 and 2260 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): ca. 111 x 31 x 6 mm
Item no. 63797
EAN: 4043619637973
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• A free EDSFF E1.S interface
Package content
• Converter
• 1 x fixing screw for M.2 module
• User manual
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63797
1 / 2
02.08.2021
Page 2
General
Function: Bootable, ex UEFI 2.3.1
Slot: PCIe
Supported module: Supports M.2 modules in format 2280 and 2260 with key M or key B+M based on PCIe
Interface
Connector 1: 1 x 67 pin M.2 key M slot
Connector 2: 1 x EDSFF E1.S male
Physical characteristics
Length: 111 mm
Width: 31 mm
Height: 6 mm
