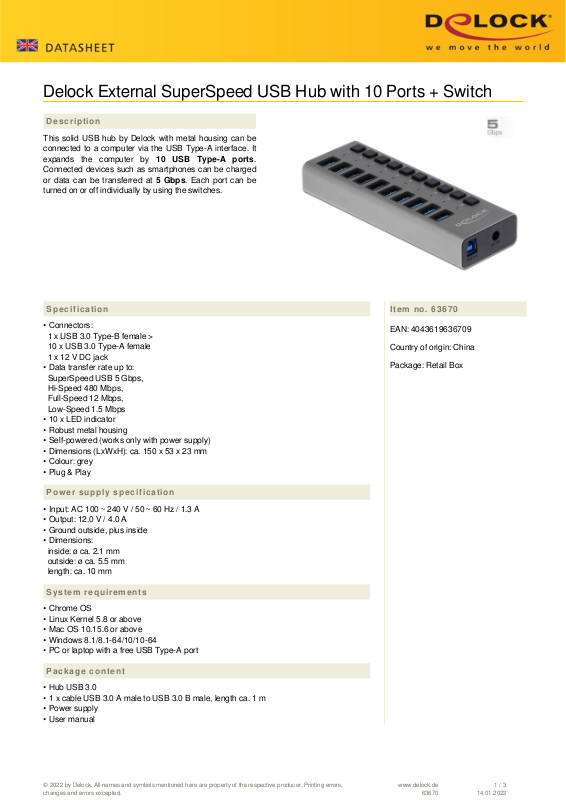

Page 1
Delock External SuperSpeed USB Hub with 10 Ports + Switch
Description
This solid USB hub by Delock with metal housing can be
connected to a computer via the USB Type-A interface. It
expands the computer by 10 USB Type-A ports.
Connected devices such as smartphones can be charged
or data can be transferred at 5 Gbps. Each port can be
turned on or off individually by using the switches.
Specification
• Connectors:
1 x USB 3.0 Type-B female >
10 x USB 3.0 Type-A female
1 x 12 V DC jack
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• 10 x LED indicator
• Robust metal housing
• Self-powered (works only with power supply)
• Dimensions (LxWxH): ca. 150 x 53 x 23 mm
• Colour: grey
• Plug & Play
Item no. 63670
EAN: 4043619636709
Country of origin: China
Package: Retail Box
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.3 A
• Output: 12.0 V / 4.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Chrome OS
• Linux Kernel 5.8 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Hub USB 3.0
• 1 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1 m
• Power supply
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63670
1 / 3
14.01.2022
Page 2

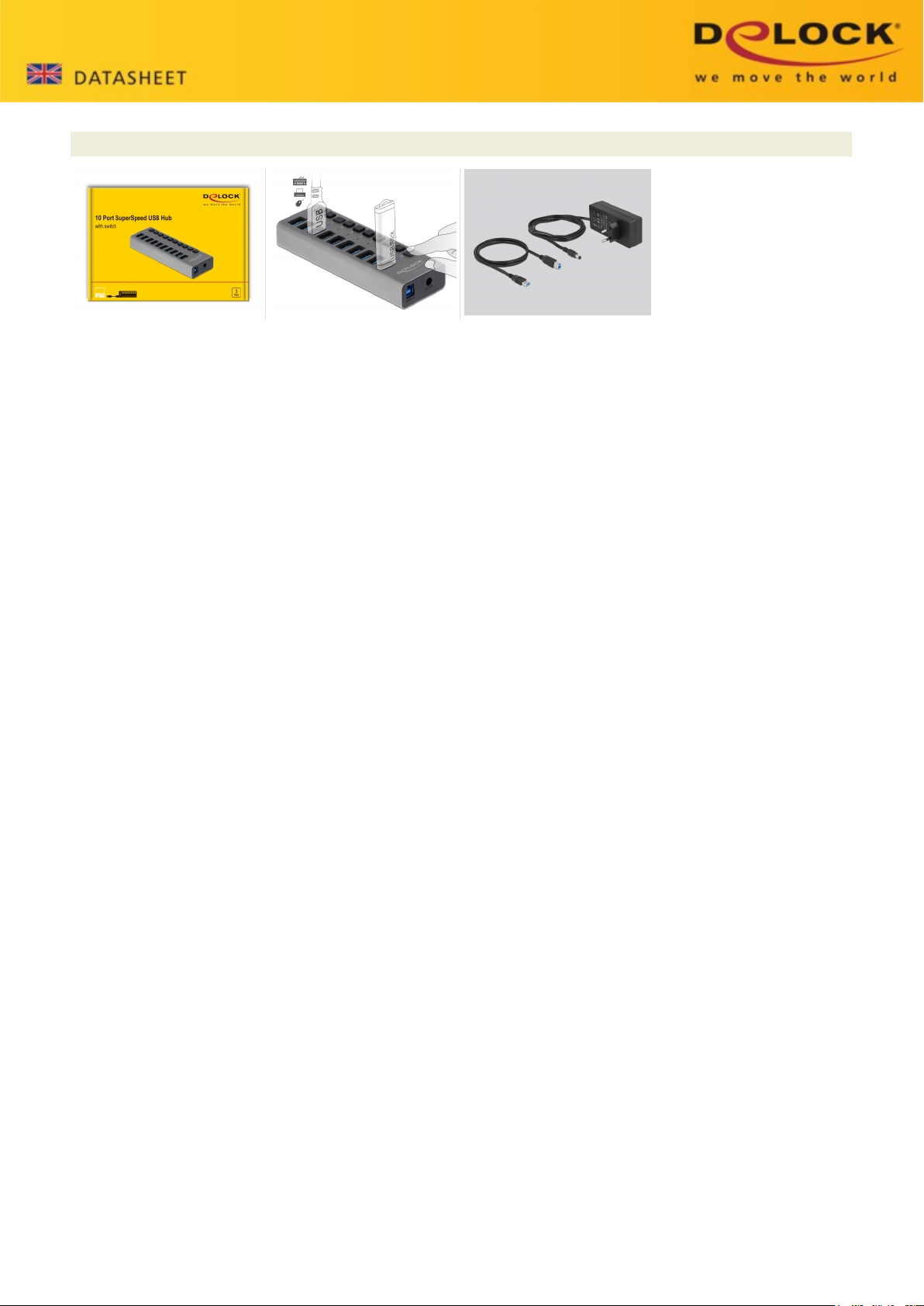

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63670
2 / 3
14.01.2022
Page 3
General
Function: Plug & Play
Supported operating system: Chrome OS
Linux Kernel 5.8.0 or above
Mac OS 10.15.6 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
LED indicator: 10 x
Interface
Connector 1: 1 x USB 3.0 Type-B female
Connector 2: 10 x USB 3.0 Type-A female
connector 3: 1 x DC jack
Physical characteristics
Cable length: 1 m
Material: Aluminium
Length: 150 mm
Width: 53 mm
Height: 23 mm
Switch: 10 x
Colour: grey
