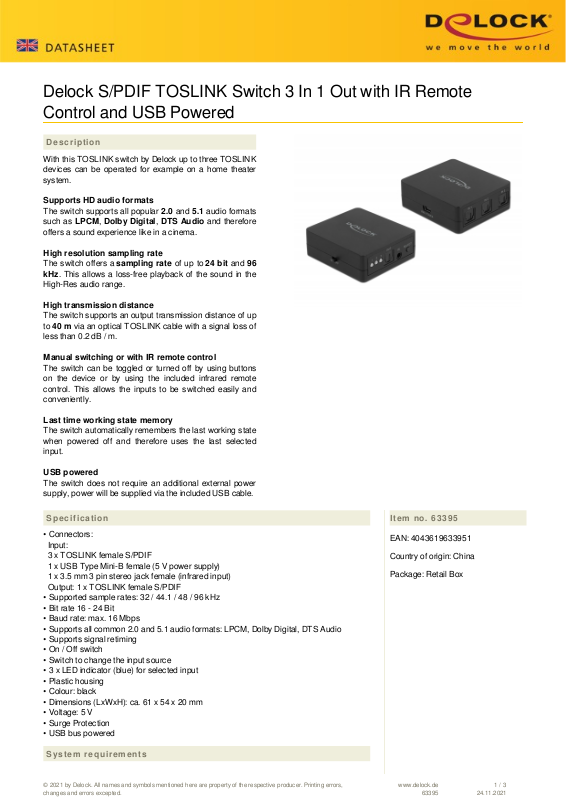

Delock S/PDIF TOSLINK Switch 3 In 1 Out with IR Remote
Control and USB Powered
Description
With this TOSLINK switch by Delock up to three TOSLINK
devices can be operated for example on a home theater
system.
Supports HD audio formats
The switch supports all popular 2.0 and 5.1 audio formats
such as LPCM, Dolby Digital, DTS Audio and therefore
offers a sound experience like in a cinema.
High resolution sampling rate
The switch offers a sampling rate of up to 24 bit and 96
kHz. This allows a loss-free playback of the sound in the
High-Res audio range.
High transmission distance
The switch supports an output transmission distance of up
to 40 m via an optical TOSLINK cable with a signal loss of
less than 0.2 dB / m.
Manual switching or with IR remote control
The switch can be toggled or turned off by using buttons
on the device or by using the included infrared remote
control. This allows the inputs to be switched easily and
conveniently.
Last time working state memory
The switch automatically remembers the last working state
when powered off and therefore uses the last selected
input.
USB powered
The switch does not require an additional external power
supply, power will be supplied via the included USB cable.
Specification
• Connectors:
Input:
3 x TOSLINK female S/PDIF
1 x USB Type Mini-B female (5 V power supply)
1 x 3.5 mm 3 pin stereo jack female (infrared input)
Output: 1 x TOSLINK female S/PDIF
• Supported sample rates: 32 / 44.1 / 48 / 96 kHz
• Bit rate 16 - 24 Bit
• Baud rate: max. 16 Mbps
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supports signal retiming
• On / Off switch
• Switch to change the input source
• 3 x LED indicator (blue) for selected input
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 61 x 54 x 20 mm
• Voltage: 5 V
• Surge Protection
• USB bus powered
Item no. 63395
EAN: 4043619633951
Country of origin: China
Package: Retail Box
System requirements
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63395
1 / 3
24.11.2021
Page 2
• Digital optical audio signal
• A free USB Type-A female port
Package content
• TOSLINK switch
• USB Type-A to Type Mini-B cable, length ca. 75 cm
• Infrared receiver with 3.5 mm stereo jack plug, cable length ca. 60 cm
• Adhesive pad for infrared receiver
• Remote control
• User manual
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63395
2 / 3
24.11.2021
Page 3
General
Specification: DTS Audio
Dolby Digital
LPCM
LED indicator: 3 x LED indicator (blue) for selected input
Interface
Output: 1 x TOSLINK female S/PDIF
Input: 1 x USB Type Micro-B female (5 V power supply)
3 x TOSLINK female S/PDIF
1 x 3.5 mm 3 pin stereo jack female (infrared input)
Technical characteristics
Bit rate: 16 - 24 Bit
Data transfer rate: max. 16 Mbps
Voltage: USB bus powered
Sample rate: 32 / 44,1 / 48 / 96 kHz
Physical characteristics
Housing colour: black
Length: 61 mm
Width: 54 mm
Height: 20 mm
