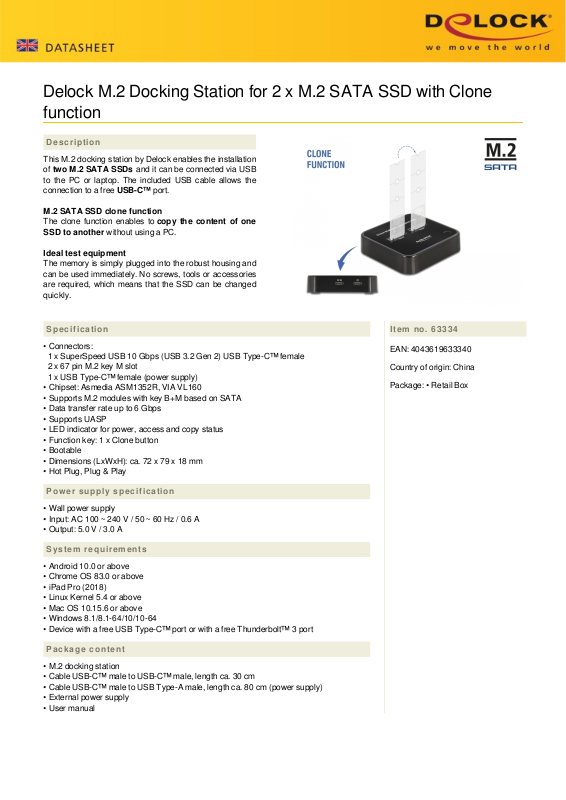

Page 1
Delock M.2 Docking Station for 2 x M.2 SATA SSD with Clone
function
Description
This M.2 docking station by Delock enables the installation
of two M.2 SATA SSDs and it can be connected via USB
to the PC or laptop. The included USB cable allows the
connection to a free USB-C™ port.
M.2 SATA SSD clone function
The clone function enables to copy the content of one
SSD to another without using a PC.
Ideal test equipment
The memory is simply plugged into the robust housing and
can be used immediately. No screws, tools or accessories
are required, which means that the SSD can be changed
quickly.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
2 x 67 pin M.2 key M slot
1 x USB Type-C™ female (power supply)
• Chipset: Asmedia ASM1352R, VIA VL160
• Supports M.2 modules with key B+M based on SATA
• Data transfer rate up to 6 Gbps
• Supports UASP
• LED indicator for power, access and copy status
• Function key: 1 x Clone button
• Bootable
• Dimensions (LxWxH): ca. 72 x 79 x 18 mm
• Hot Plug, Plug & Play
Item no. 63334
EAN: 4043619633340
Country of origin: China
Package: • Retail Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A
System requirements
• Android 10.0 or above
• Chrome OS 83.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• M.2 docking station
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• Cable USB-C™ male to USB Type-A male, length ca. 80 cm (power supply)
• External power supply
• User manual
Page 2
Images
Page 3
General
Function: Clone Function
Supported operating system: Android 10.0 or above
Chrome OS 83.0 or above
Linux Kernel 5.4 or above
Mac OS 10.15.6 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
iPad Pro (2018)
Slot: SATA
Maximum height of the components on
the module:
Interface
Connector 1: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
Connector 2: 2 x 67 pin M.2 key M slot
connector 3: 1 x USB Type-C™ female (power supply)
Technical characteristics
Data transfer rate: 10 Gbps
Physical characteristics
Length: 79 mm
Width: 72 mm
Height: 18 mm
Colour: black
1.5 mm application of double-sided assembled modules supported
