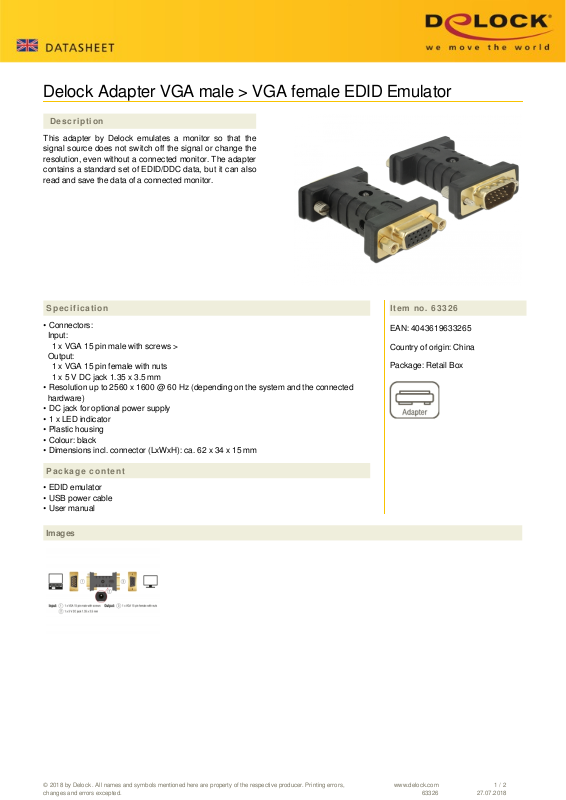

Page 1
Delock Adapter VGA male > VGA female EDID Emulator
Description
This adapter by Delock emulates a monitor so that the
signal source does not switch off the signal or change the
resolution, even without a connected monitor. The adapter
contains a standard set of EDID/DDC data, but it can also
read and save the data of a connected monitor.
Specification
• Connectors:
Input:
1 x VGA 15 pin male with screws >
Output:
1 x VGA 15 pin female with nuts
1 x 5 V DC jack 1.35 x 3.5 mm
• Resolution up to 2560 x 1600 @ 60 Hz (depending on the system and the connected
hardware)
• DC jack for optional power supply
• 1 x LED indicator
• Plastic housing
• Colour: black
• Dimensions incl. connector (LxWxH): ca. 62 x 34 x 15 mm
Item no. 63326
EAN: 4043619633265
Country of origin: China
Package: Retail Box
Package content
• EDID emulator
• USB power cable
• User manual
Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
63326
1 / 2
27.07.2018
Page 2
Interface
Output: 1 x VGA 15 pin female
Input: 1 x VGA 15 pin male
Technical characteristics
Maximum screen resolution: 2560 x 1600 @ 60 Hz
Physical characteristics
Housing colour: black
Housing material: Plastic
Length: 62 mm
Width: 34 mm
Height: 15 mm
