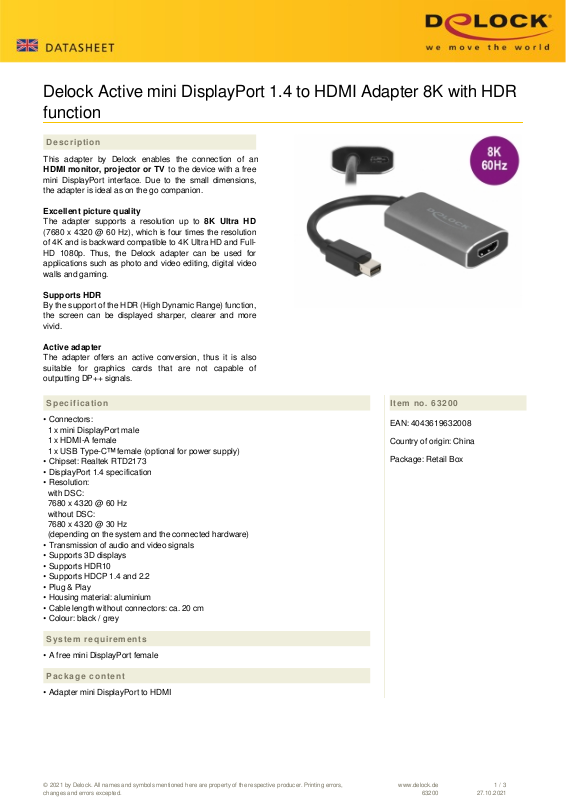

Delock Active mini DisplayPort 1.4 to HDMI Adapter 8K with HDR
function
Description
This adapter by Delock enables the connection of an
HDMI monitor, projector or TV to the device with a free
mini DisplayPort interface. Due to the small dimensions,
the adapter is ideal as on the go companion.
Excellent picture quality
The adapter supports a resolution up to 8K Ultra HD
(7680 x 4320 @ 60 Hz), which is four times the resolution
of 4K and is backward compatible to 4K Ultra HD and FullHD 1080p. Thus, the Delock adapter can be used for
applications such as photo and video editing, digital video
walls and gaming.
Supports HDR
By the support of the HDR (High Dynamic Range) function,
the screen can be displayed sharper, clearer and more
vivid.
Active adapter
The adapter offers an active conversion, thus it is also
suitable for graphics cards that are not capable of
outputting DP++ signals.
Specification
• Connectors:
1 x mini DisplayPort male
1 x HDMI-A female
1 x USB Type-C™ female (optional for power supply)
• Chipset: Realtek RTD2173
• DisplayPort 1.4 specification
• Resolution:
with DSC:
7680 x 4320 @ 60 Hz
without DSC:
7680 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDR10
• Supports HDCP 1.4 and 2.2
• Plug & Play
• Housing material: aluminium
• Cable length without connectors: ca. 20 cm
• Colour: black / grey
Item no. 63200
EAN: 4043619632008
Country of origin: China
Package: Retail Box
System requirements
• A free mini DisplayPort female
Package content
• Adapter mini DisplayPort to HDMI
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63200
1 / 3
27.10.2021
Page 2
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
63200
2 / 3
27.10.2021
Page 3
General
Function: Plug & Play
Specification: HDCP 1.4
HDCP 2.2
DisplayPort 1.4
Interface
Output: 1 x HDMI-A female
Input: 1 x mini DisplayPort male
Technical characteristics
Chipset: Realtek RTD2173
Maximum screen resolution: 7680 x 4320 @ 60 Hz
Signal transmission: video
audio
Physical characteristics
Housing material: Aluminium
Cable length: 20 cm (without connector)
Colour: grey
