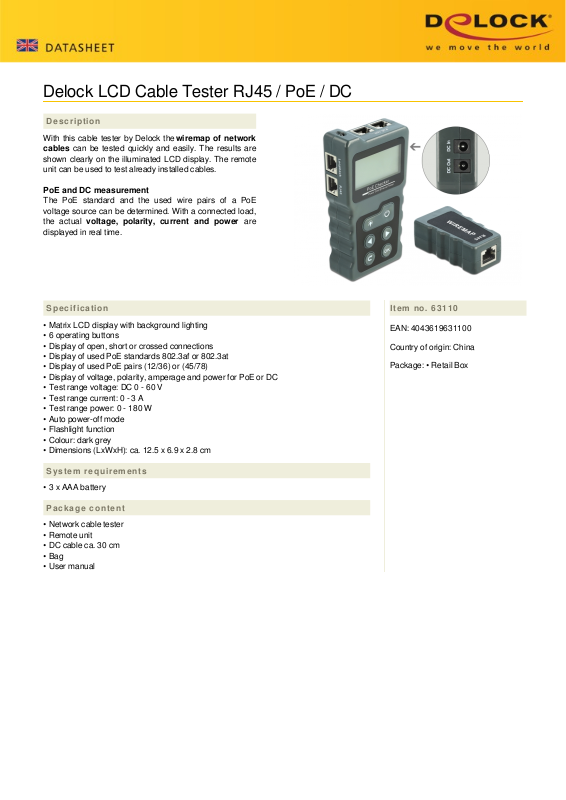

Page 1
Delock LCD Cable Tester RJ45 / PoE / DC
Description
With this cable tester by Delock thewiremap of network
cables can be tested quickly and easily. The results are
shown clearly on the illuminated LCD display. The remote
unit can be used to test already installed cables.
PoE and DC measurement
The PoE standard and the used wire pairs of a PoE
voltage source can be determined. With a connected load,
the actual voltage, polarity, current and power are
displayed in real time.
Specification
• Matrix LCD display with background lighting
• 6 operating buttons
• Display of open, short or crossed connections
• Display of used PoE standards 802.3af or 802.3at
• Display of used PoE pairs (12/36) or (45/78)
• Display of voltage, polarity, amperage and power for PoE or DC
• Test range voltage: DC 0 - 60 V
• Test range current: 0 - 3 A
• Test range power: 0 - 180 W
• Auto power-off mode
• Flashlight function
• Colour: dark grey
• Dimensions (LxWxH): ca. 12.5 x 6.9 x 2.8 cm
Item no. 63110
EAN: 4043619631100
Country of origin: China
Package: • Retail Box
System requirements
• 3 x AAA battery
Package content
• Network cable tester
• Remote unit
• DC cable ca. 30 cm
• Bag
• User manual
Page 2

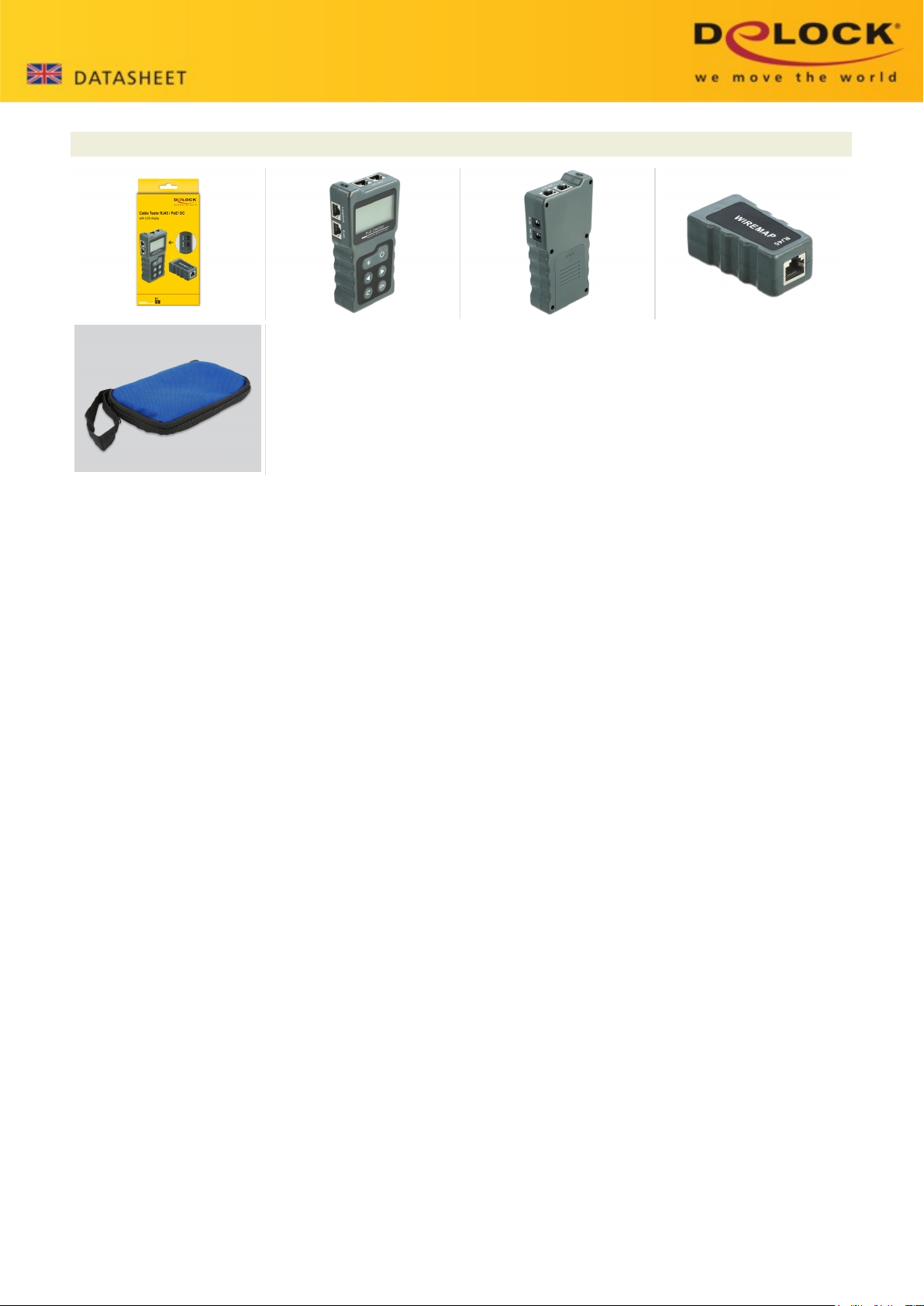

Images
Page 3
Physical characteristics
Length: 125 mm
Width: 69 mm
Height: 28 mm
Colour: dark grey
