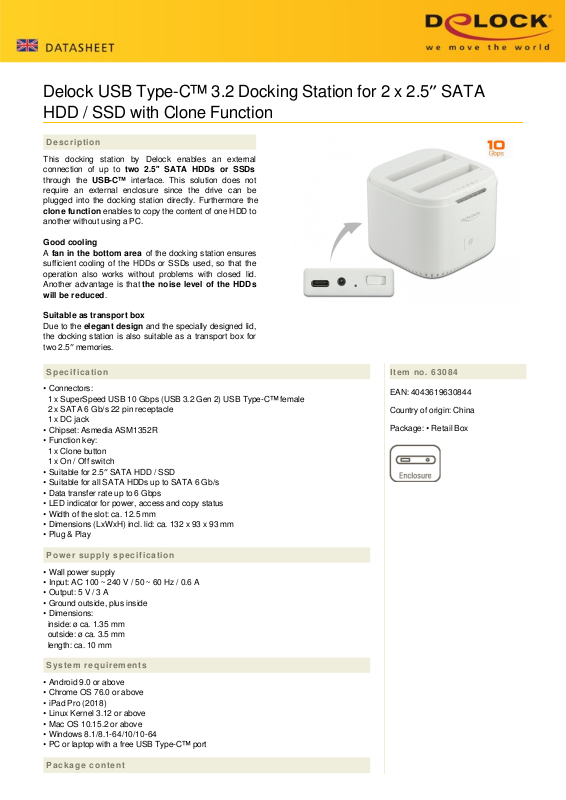

Page 1
Delock USB Type-C™ 3.2 Docking Station for 2 x 2.5″ SATA
HDD / SSD with Clone Function
Description
This docking station by Delock enables an external
connection of up to two 2.5″ SATA HDDs or SSDs
through the USB-C™ interface. This solution does not
require an external enclosure since the drive can be
plugged into the docking station directly. Furthermore the
clone function enables to copy the content of one HDD to
another without using a PC.
Good cooling
A fan in the bottom area of the docking station ensures
sufficient cooling of the HDDs or SSDs used, so that the
operation also works without problems with closed lid.
Another advantage is that the noise level of the HDDs
will be reduced.
Suitable as transport box
Due to the elegant design and the specially designed lid,
the docking station is also suitable as a transport box for
two 2.5″ memories.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
2 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Chipset: Asmedia ASM1352R
• Function key:
1 x Clone button
1 x On / Off switch
• Suitable for 2.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 6 Gbps
• LED indicator for power, access and copy status
• Width of the slot: ca. 12.5 mm
• Dimensions (LxWxH) incl. lid: ca. 132 x 93 x 93 mm
• Plug & Play
Item no. 63084
EAN: 4043619630844
Country of origin: China
Package: • Retail Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5 V / 3 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 10 mm
System requirements
• Android 9.0 or above
• Chrome OS 76.0 or above
• iPad Pro (2018)
• Linux Kernel 3.12 or above
• Mac OS 10.15.2 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
Page 2
• Docking station
• Cable USB-C™ male to USB-C™ male, length ca. 1 m
• External power supply 5 V / 3 A (incl. EU, UK and USA plug)
• User manual
Images
Page 3
General
Function: Plug & Play
Suitable for data medium: 2.5″
SSD or HDD
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
iPad Pro (2018)
Android 9.0 or above
Linux Kernel 3.12 or above
Chrome OS 76.0 or above
Mac OS 10.15.2 or above
Interface
External: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x DC jack
Internal: 2 x SATA 22 Pin Buchse
Technical characteristics
Chipset: Asmedia ASM1352R
Physical characteristics
Housing material: Plastic
Cable length: 1 m
Length: 132 mm
Width: 93 mm
Height: 93 mm
Colour: white
