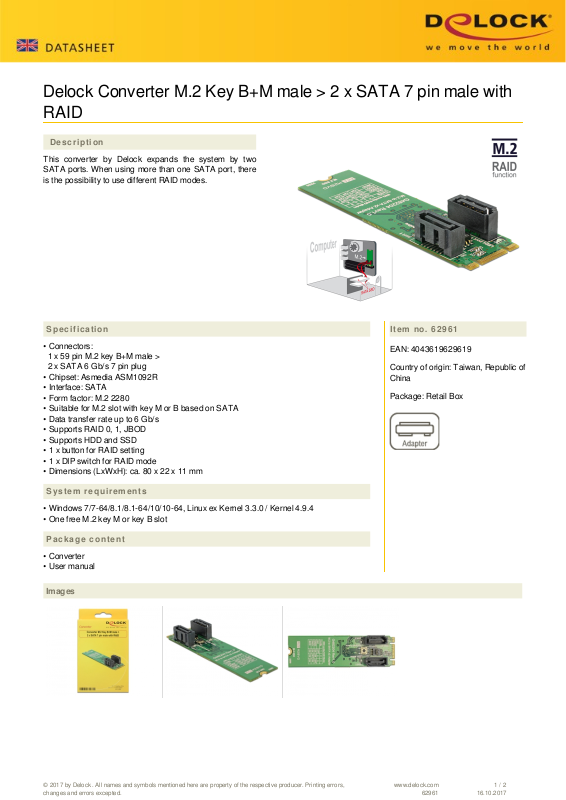

Page 1
Delock Converter M.2 Key B+M male > 2 x SATA 7 pin male with
RAID
Description
This converter by Delock expands the system by two
SATA ports. When using more than one SATA port, there
is the possibility to use different RAID modes.
Specification
• Connectors:
1 x 59 pin M.2 key B+M male >
2 x SATA 6 Gb/s 7 pin plug
• Chipset: Asmedia ASM1092R
• Interface: SATA
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on SATA
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, JBOD
• Supports HDD and SSD
• 1 x button for RAID setting
• 1 x DIP switch for RAID mode
• Dimensions (LxWxH): ca. 80 x 22 x 11 mm
Item no. 62961
EAN: 4043619629619
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3.0 / Kernel 4.9.4
• One free M.2 key M or key B slot
Package content
• Converter
• User manual
Images
© 2017 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
62961
1 / 2
16.10.2017
Page 2
General
Form factor: standard
M.2 2280 (2260)
Supported operating system: standard
Linux ex Kernel 4.9.4
Linux ex Kernel 3.3
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: standard
SATA
Interface
connector 1: standard
1 x 59 pin M.2 key B+M male
connector 2: standard
2 x SATA 6 Gb/s 7 pin plug
Technical characteristics
Chipset: standard
Asmedia ASM1092R
Data transfer rate: standard
6 Gb/s
RAID function: standard
JBOD
0
1
Physical characteristics
Length: standard
80 mm
Width: standard
22 mm
Height: standard
11 mm
