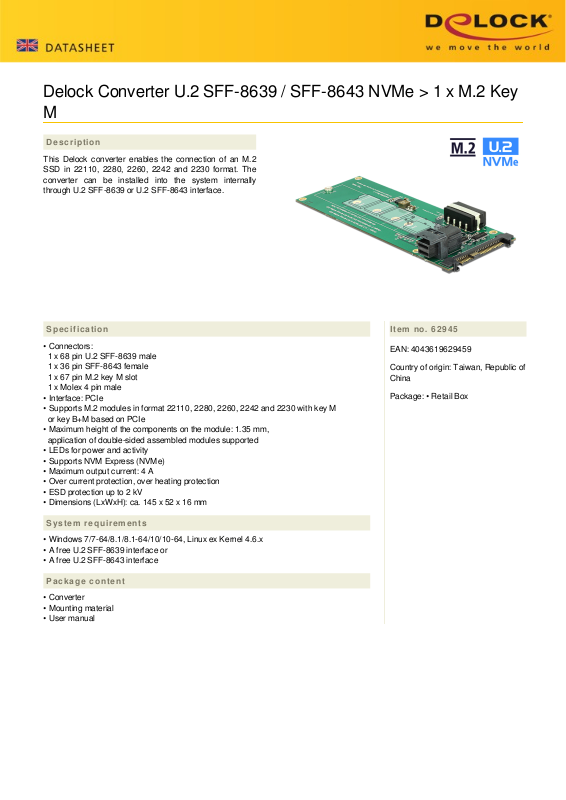

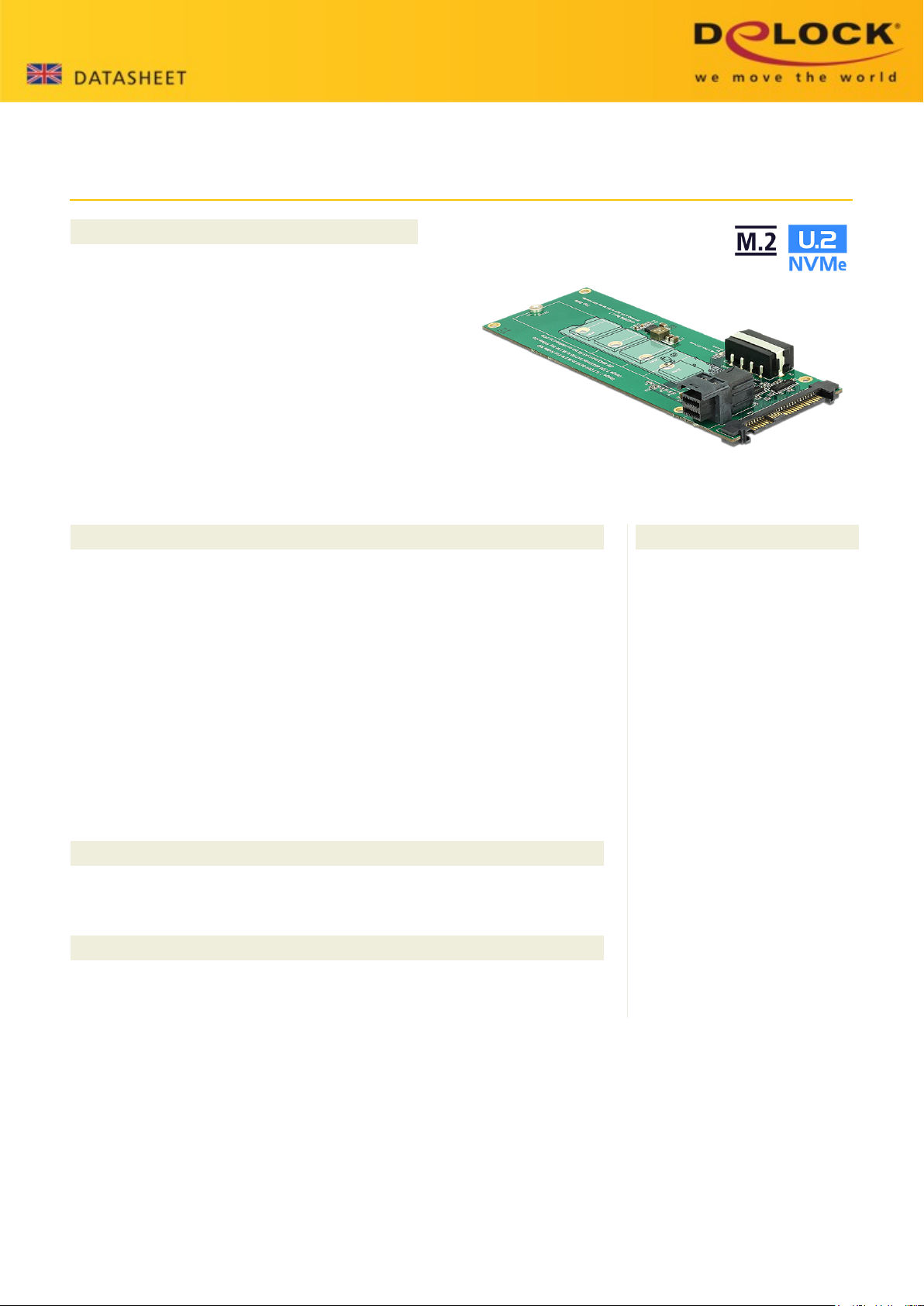

Delock Converter U.2 SFF-8639 / SFF-8643 NVMe > 1 x M.2 Key
M
Description
This Delock converter enables the connection of an M.2
SSD in 22110, 2280, 2260, 2242 and 2230 format. The
converter can be installed into the system internally
through U.2 SFF-8639 or U.2 SFF-8643 interface.
Specification
• Connectors:
1 x 68 pin U.2 SFF-8639 male
1 x 36 pin SFF-8643 female
1 x 67 pin M.2 key M slot
1 x Molex 4 pin male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 52 x 16 mm
Item no. 62945
EAN: 4043619629459
Country of origin: Taiwan, Republic of
China
Package: • Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Package content
• Converter
• Mounting material
• User manual
Page 2

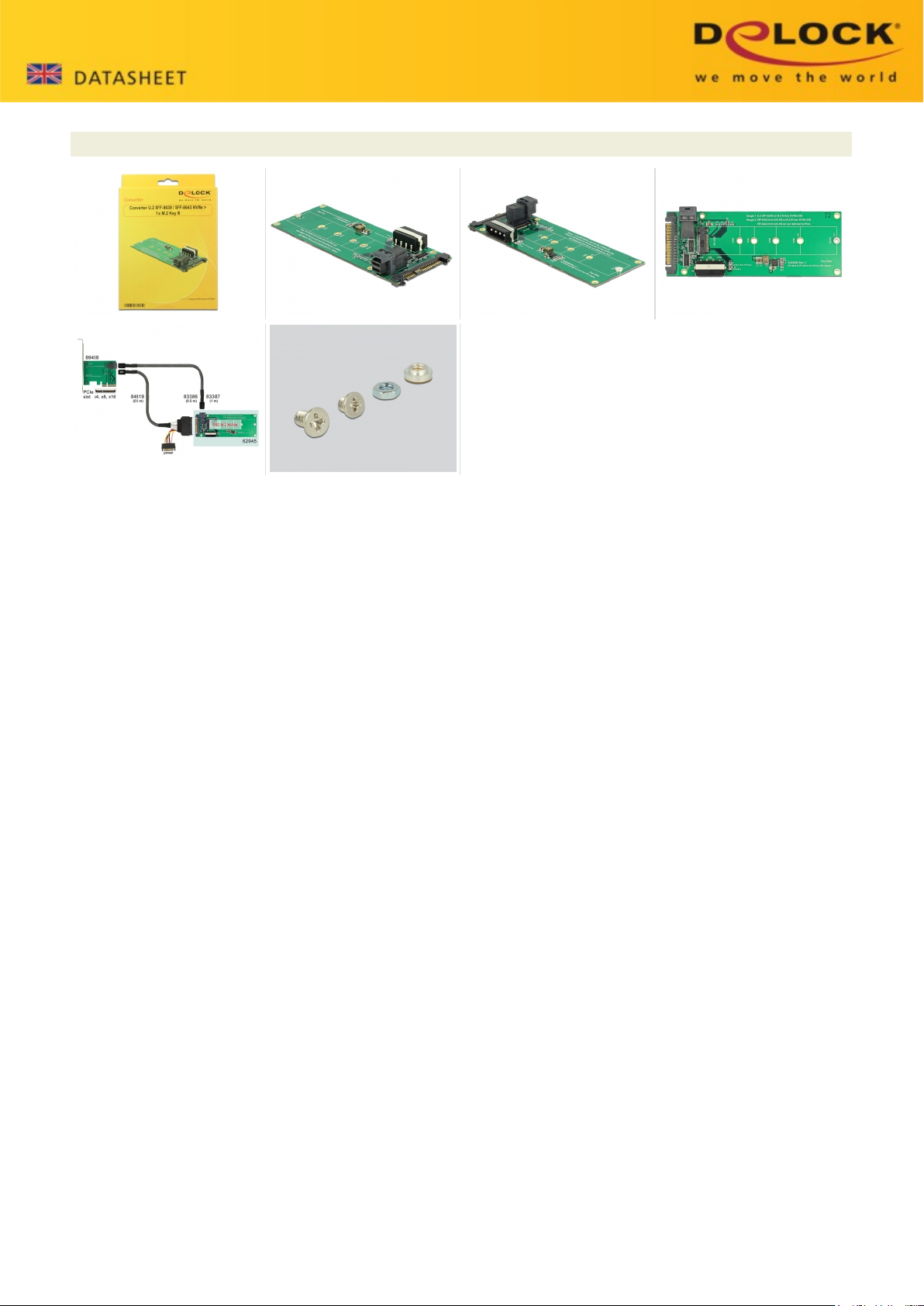

Images
Page 3
General
Function: NVM Express (NVMe)
Supported operating system: Linux Kernel 4.6 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
LED indicator: power and activity
Slot: PCIe
Supported module: M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based
on PCIe
Maximum height of the components on
the module:
Protection: ESD (Electrostatic Discharge)
Interface
Connector 1: 1 x 68 pin U.2 SFF-8639 male
Connector 2: 1 x 36 pin SFF-8643 female
connector 3: 1 x 67 pin M.2 key M slot
connector 4: 1 x Molex 4 pin male
Physical characteristics
Length: 142 mm
Width: 52 mm
Height: 16 mm
1.35 mm application of double-sided assembled modules supported
Overheating protection
Overcharge protection
