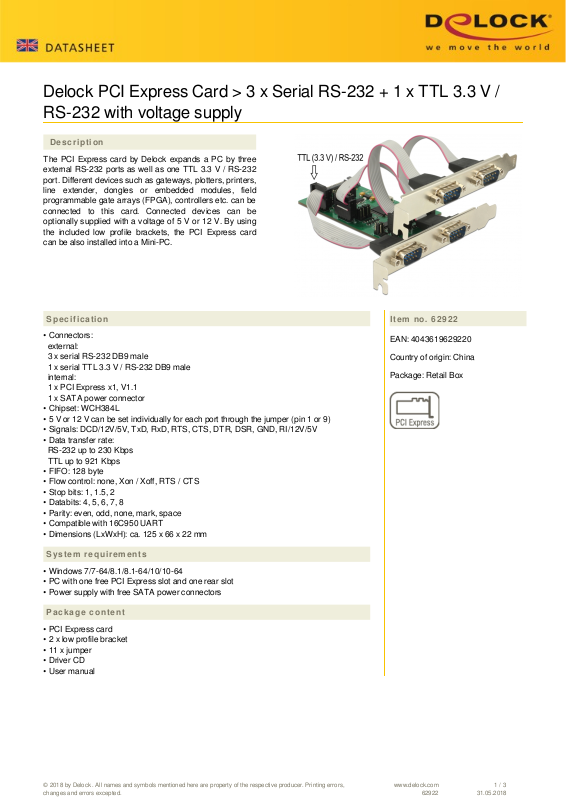

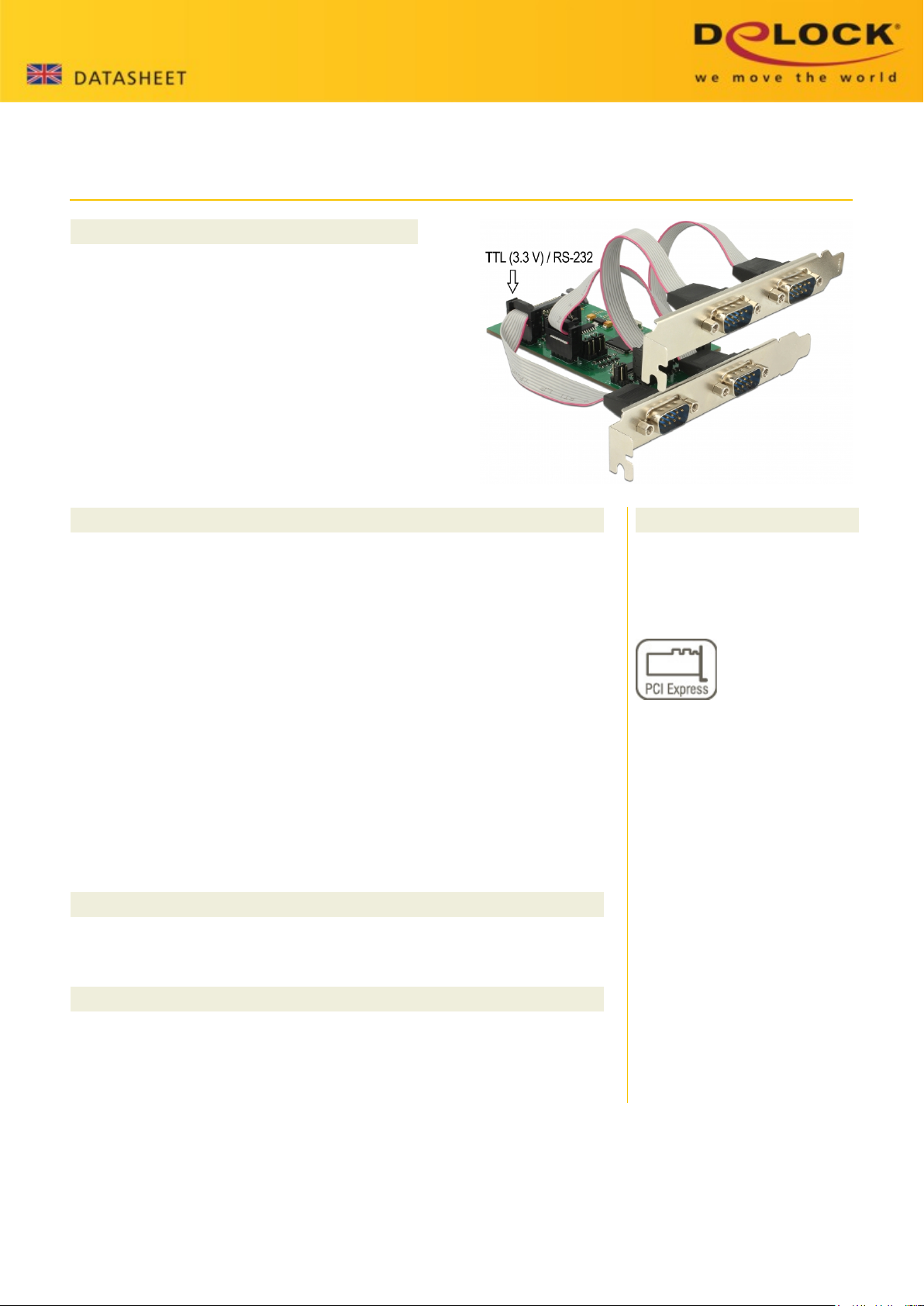

Delock PCI Express Card > 3 x Serial RS-232 + 1 x TTL 3.3 V /
RS-232 with voltage supply
Description
The PCI Express card by Delock expands a PC by three
external RS-232 ports as well as one TTL 3.3 V / RS-232
port. Different devices such as gateways, plotters, printers,
line extender, dongles or embedded modules, field
programmable gate arrays (FPGA), controllers etc. can be
connected to this card. Connected devices can be
optionally supplied with a voltage of 5 V or 12 V. By using
the included low profile brackets, the PCI Express card
can be also installed into a Mini-PC.
Specification
• Connectors:
external:
3 x serial RS-232 DB9 male
1 x serial TTL 3.3 V / RS-232 DB9 male
internal:
1 x PCI Express x1, V1.1
1 x SATA power connector
• Chipset: WCH384L
• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)
• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Data transfer rate:
RS-232 up to 230 Kbps
TTL up to 921 Kbps
• FIFO: 128 byte
• Flow control: none, Xon / Xoff, RTS / CTS
• Stop bits: 1, 1.5, 2
• Databits: 4, 5, 6, 7, 8
• Parity: even, odd, none, mark, space
• Compatible with 16C950 UART
• Dimensions (LxWxH): ca. 125 x 66 x 22 mm
Item no. 62922
EAN: 4043619629220
Country of origin: China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot and one rear slot
• Power supply with free SATA power connectors
Package content
• PCI Express card
• 2 x low profile bracket
• 11 x jumper
• Driver CD
• User manual
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
62922
1 / 3
31.05.2018
Page 2

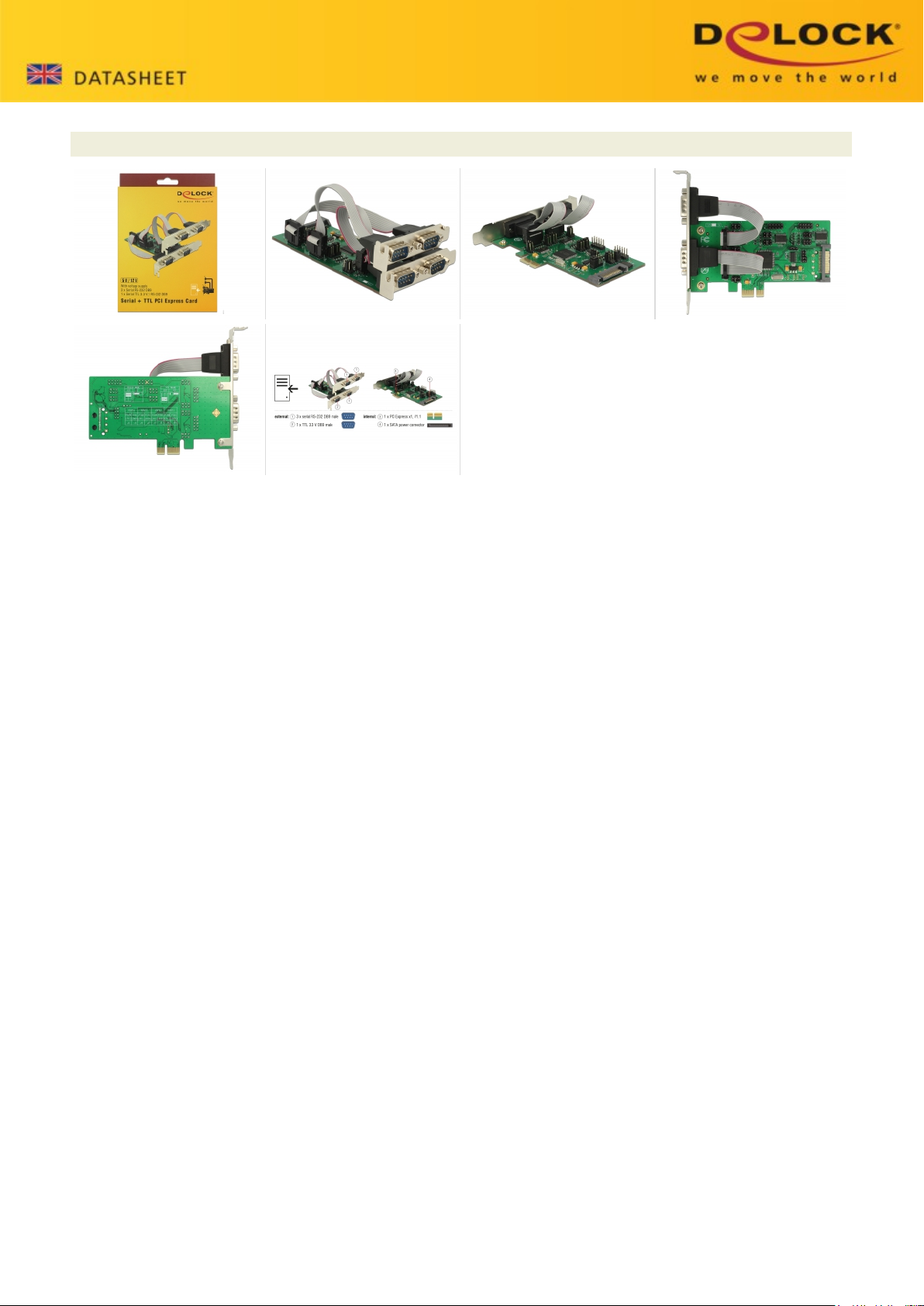

Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
62922
2 / 3
31.05.2018
Page 3
General
Form factor: Low Profile
Specification: RS-232
TTL/CMOS
PCIe 1.1
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: PCIe
Interface
Output: 4 x Serial DB9 5 V / 12 V on DCD / RI
External: 4 x serial RS-232 DB9 male
1 x TTL 3.3V DB9 male
Internal: 1 x PCI Express x1, V1.1
1 x SATA 15 pin power plug
Technical characteristics
Chipset: WCH384L
Data transfer rate: RS-232 up to 230 kbps
TTL up to 921 Kbps
FIFO: 128 byte
Jumper: 11 x
Voltage: Power over System (POS)
UART: 16C950
Physical characteristics
Pin finishing: gold-plated
Screw type: #4-40 UNC
Slot bracket: low profile
standard
Depth: 22 mm
Width: 125 mm
Height: 66 mm
Colour: green
