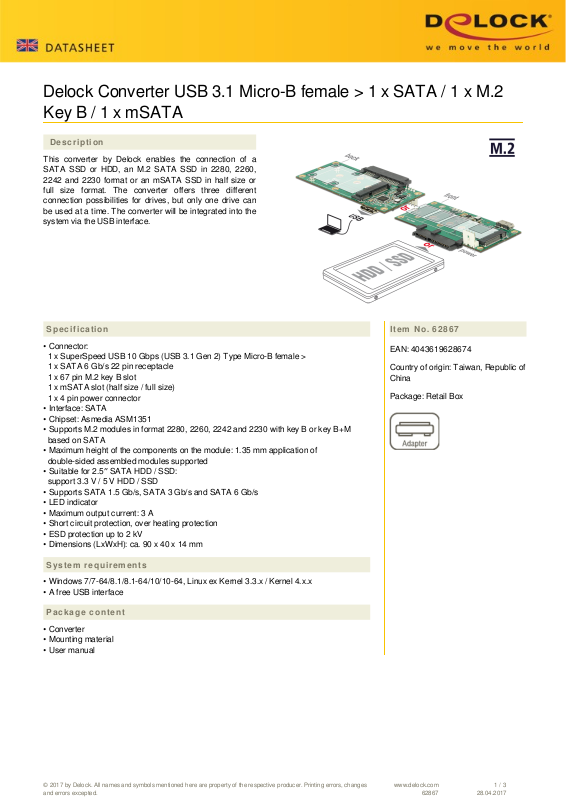

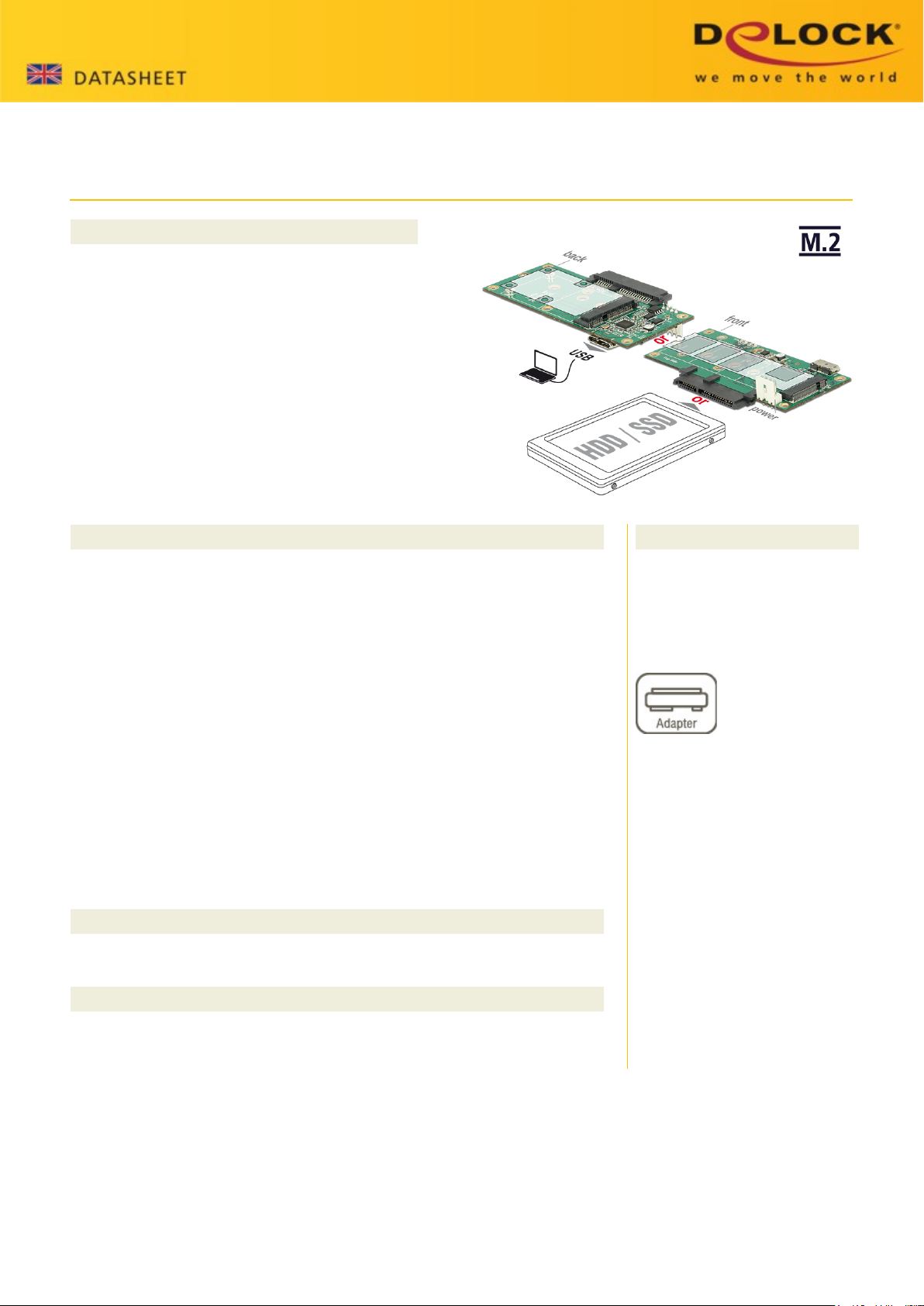

Delock Converter USB 3.1 Micro-B female > 1 x SATA / 1 x M.2
Key B / 1 x mSATA
Description
This converter by Delock enables the connection of a
SATA SSD or HDD, an M.2 SATA SSD in 2280, 2260,
2242 and 2230 format or an mSATA SSD in half size or
full size format. The converter offers three different
connection possibilities for drives, but only one drive can
be used at a time. The converter will be integrated into the
system via the USB interface.
Specification
• Connector:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female >
1 x SATA 6 Gb/s 22 pin receptacle
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
1 x 4 pin power connector
• Interface: SATA
• Chipset: Asmedia ASM1351
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.35 mm application of
double-sided assembled modules supported
• Suitable for 2.5″ SATA HDD / SSD:
support 3.3 V / 5 V HDD / SSD
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• LED indicator
• Maximum output current: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 90 x 40 x 14 mm
Item No. 62867
EAN: 4043619628674
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3.x / Kernel 4.x.x
• A free USB interface
Package content
• Converter
• Mounting material
• User manual
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62867
1 / 3
28.04.2017
Page 2

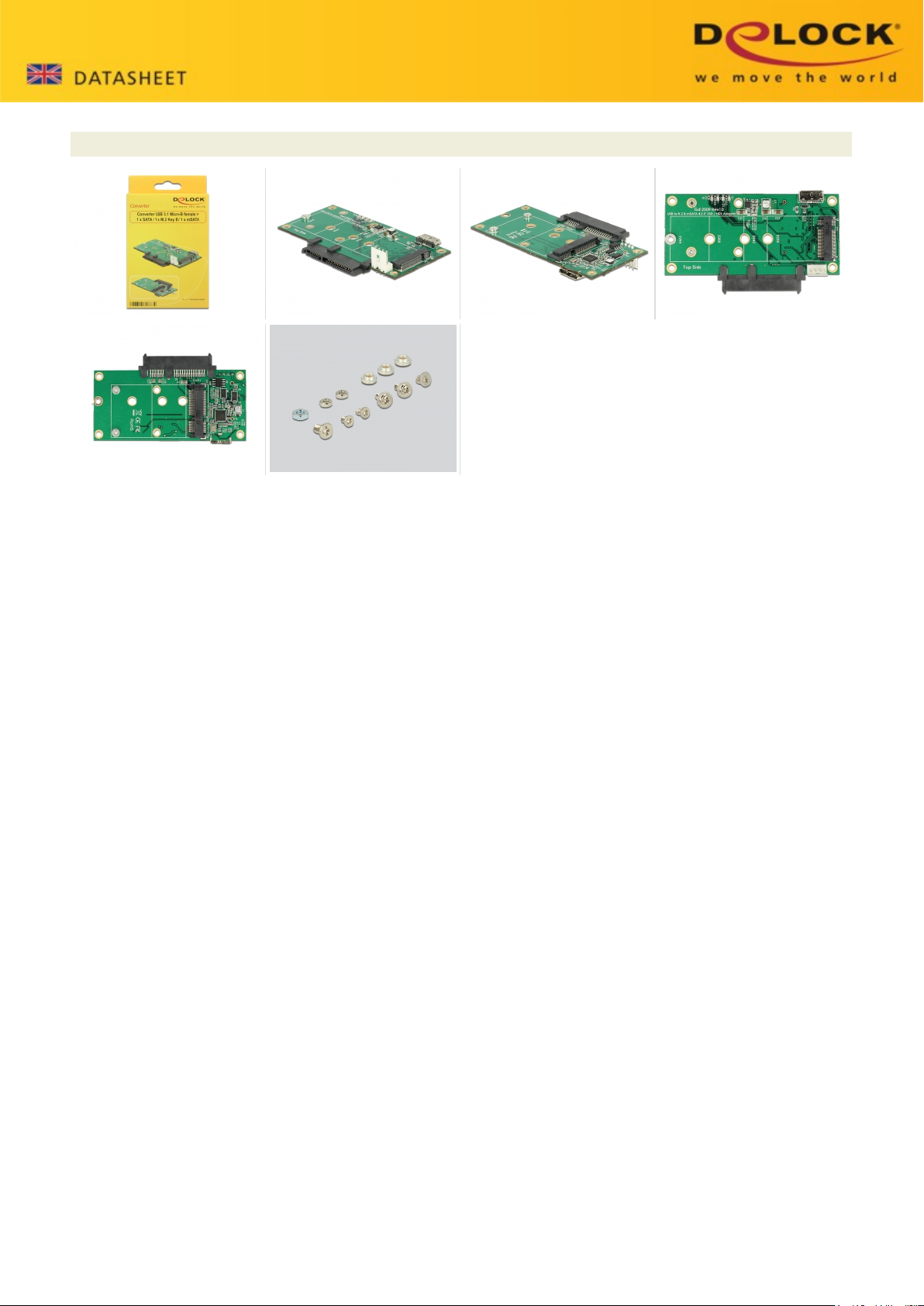

Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62867
2 / 3
28.04.2017
Page 3
General
Supported operating system: Linux ex Kernel 3.16
Linux ex Kernel 4.x.x
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: SATA
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
Maximum height of the components on
the module:
Protection: ESD (Electrostatic Discharge)
Interface
connector 1: 1 x USB 3.1 Gen 2 Type Micro-B female
connector 2: 1 x SATA 6 Gb/s 22 pin receptacle
connector 3: 1 x mSATA slot (half size / full size)
connector 4: 1 x 67 pin M.2 key B slot
Technical characteristics
Chipset: Asmedia ASM1351
Physical characteristics
Length: 90 mm
Width: 40 mm
Height: 14 mm
1.35 mm application of double-sided assembled modules supported
Short circuit protection
Overheating protection
