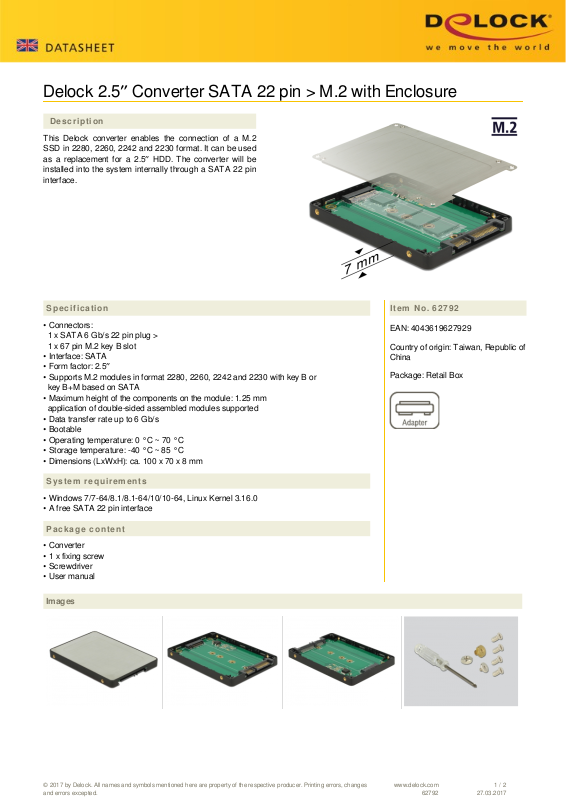

Delock 2.5″ Converter SATA 22 pin > M.2 with Enclosure
Description
This Delock converter enables the connection of a M.2
SSD in 2280, 2260, 2242 and 2230 format. It can be used
as a replacement for a 2.5″ HDD. The converter will be
installed into the system internally through a SATA 22 pin
interface.
Specification
• Connectors:
1 x SATA 6 Gb/s 22 pin plug >
1 x 67 pin M.2 key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA
• Maximum height of the components on the module: 1.25 mm
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Bootable
• Operating temperature: 0 °C ~ 70 °C
• Storage temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 100 x 70 x 8 mm
Item No. 62792
EAN: 4043619627929
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16.0
• A free SATA 22 pin interface
Package content
• Converter
• 1 x fixing screw
• Screwdriver
• User manual
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62792
1 / 2
27.03.2017
Page 2
General
Form factor: 2.5"
function: bootable
Supported operating system: Linux Kernel 3.16
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: SATA
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
Maximum height of the components on
the module:
Interface
connector 1: 1 x SATA 6 Gb/s 22 pin plug
connector 2: 1 x 67 pin M.2 key B slot
Technical characteristics
Data transfer rate: 6 Gb/s
Physical characteristics
Length: 100 mm
Width: 70 mm
Height: 8 mm
Colour: black
1.25 mm application of double-sided assembled modules supported
