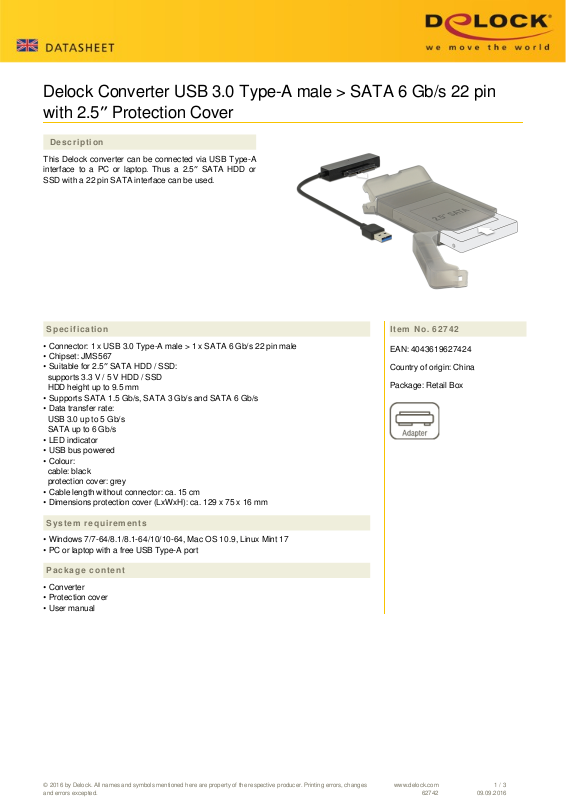

Delock Converter USB 3.0 Type-A male > SATA 6 Gb/s 22 pin
with 2.5″ Protection Cover
Description
This Delock converter can be connected via USB Type-A
interface to a PC or laptop. Thus a 2.5″ SATA HDD or
SSD with a 22 pin SATA interface can be used.
Specification
• Connector: 1 x USB 3.0 Type-A male > 1 x SATA 6 Gb/s 22 pin male
• Chipset: JMS567
• Suitable for 2.5″ SATA HDD / SSD:
supports 3.3 V / 5 V HDD / SSD
HDD height up to 9.5 mm
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• Data transfer rate:
USB 3.0 up to 5 Gb/s
SATA up to 6 Gb/s
• LED indicator
• USB bus powered
• Colour:
cable: black
protection cover: grey
• Cable length without connector: ca. 15 cm
• Dimensions protection cover (LxWxH): ca. 129 x 75 x 16 mm
Item No. 62742
EAN: 4043619627424
Country of origin: China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Mac OS 10.9, Linux Mint 17
• PC or laptop with a free USB Type-A port
Package content
• Converter
• Protection cover
• User manual
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62742
1 / 3
09.09.2016
Page 2

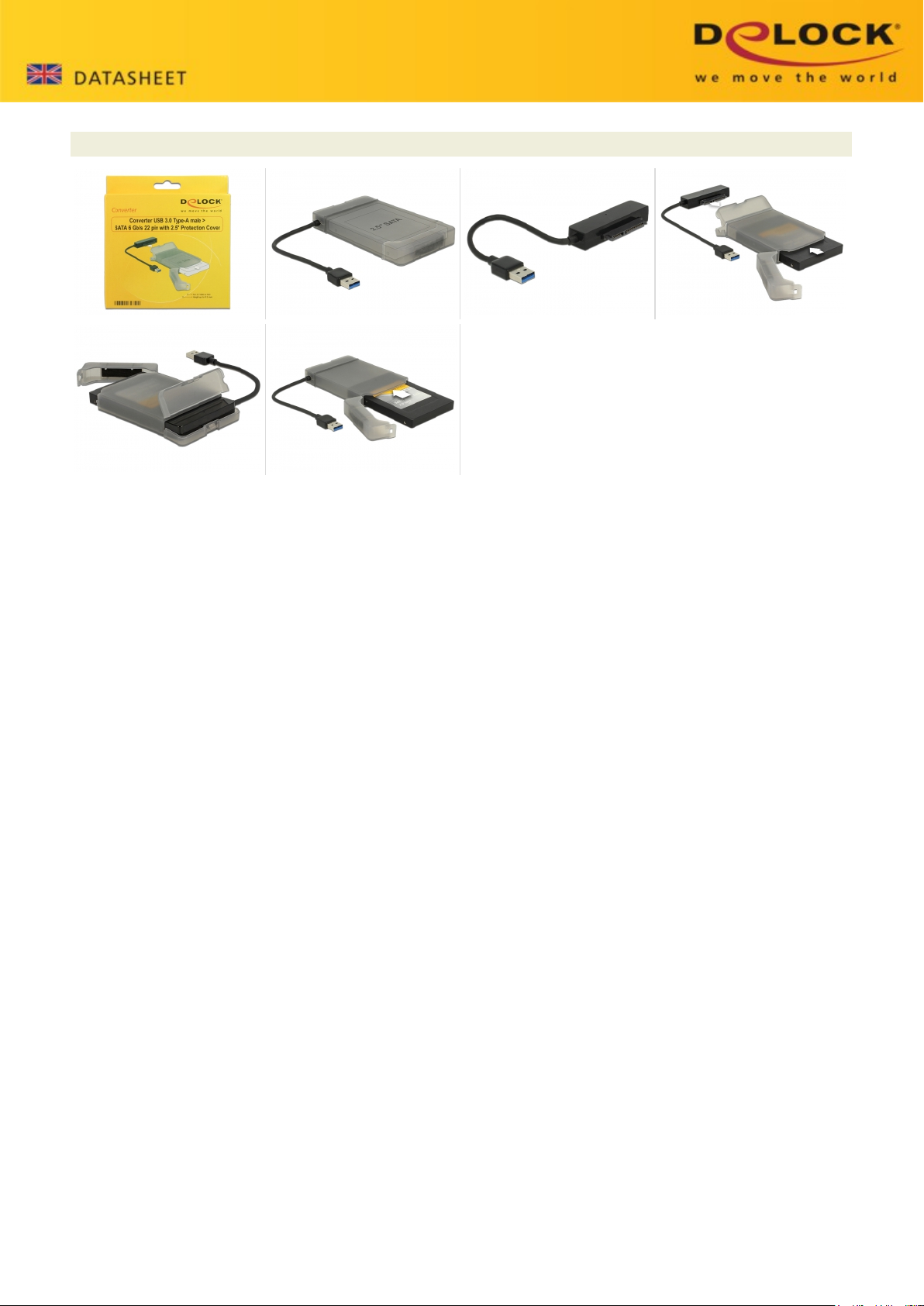

Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62742
2 / 3
09.09.2016
Page 3
General
Suitable for data medium: 3.3 V and 5 V
2.5″
SSD or HDD
height up to 9.5 mm
Supported operating system: Mac 10.8.2
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Interface
Connection 1: 1 x USB 3.0 Type-A male
Connection 2: 1 x SATA 6 Gb/s 22 pin plug
Technical characteristics
Chipset: Asmedia ASM1351
Data transfer rate: USB 3.0 up to 5 Gb/s
SATA up to 6 Gb/s
Voltage: USB Bus powered (no additional power supply required)
Physical characteristics
Cable length: 15 cm
Colour: grey
black
Length: 129 mm
Width: 75 mm
Height: 16 mm
