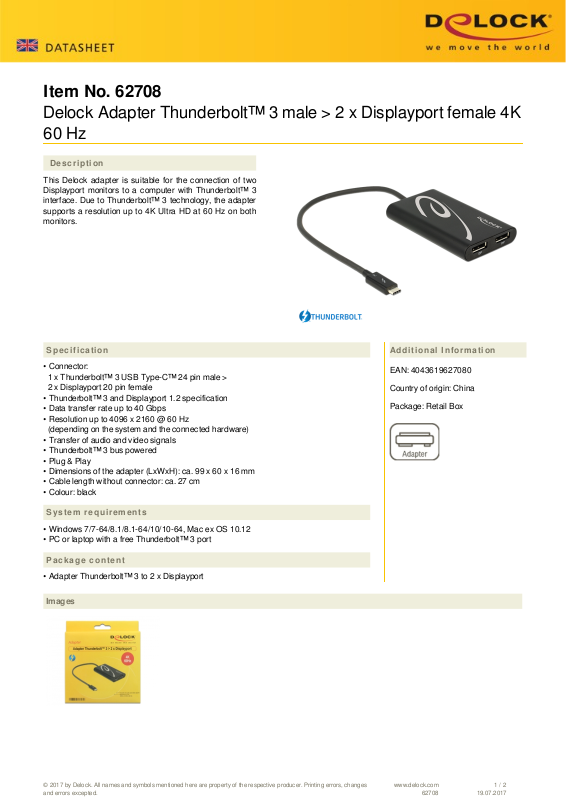

Page 1
Item No. 62708
Delock Adapter Thunderbolt™ 3 male > 2 x Displayport female 4K
60 Hz
Description
This Delock adapter is suitable for the connection of two
Displayport monitors to a computer with Thunderbolt™ 3
interface. Due to Thunderbolt™ 3 technology, the adapter
supports a resolution up to 4K Ultra HD at 60 Hz on both
monitors.
Specification
• Connector:
1 x Thunderbolt™ 3 USB Type-C™ 24 pin male >
2 x Displayport 20 pin female
• Thunderbolt™ 3 and Displayport 1.2 specification
• Data transfer rate up to 40 Gbps
• Resolution up to 4096 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Transfer of audio and video signals
• Thunderbolt™ 3 bus powered
• Plug & Play
• Dimensions of the adapter (LxWxH): ca. 99 x 60 x 16 mm
• Cable length without connector: ca. 27 cm
• Colour: black
Additional Information
EAN: 4043619627080
Country of origin: China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Mac ex OS 10.12
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• Adapter Thunderbolt™ 3 to 2 x Displayport
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62708
1 / 2
19.07.2017
Page 2
General
function: Plug & Play
Specification: Thunderbolt™ 3
Displayport 1.2
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Interface
Output: 2 x Displayport 20 pin female
Input: 1 x Thunderbolt™ 3 USB Type-C™ 24 pin male
Technical characteristics
Data transfer rate: Thunderbolt™ 3 up to 40 Gb/s
Maximum screen resolution: 4096 x 2160 @ 60 Hz
Physical characteristics
Cable length: 27 cm
Length: 99 mm
Width: 60 mm
Height: 16 mm
Colour: black
