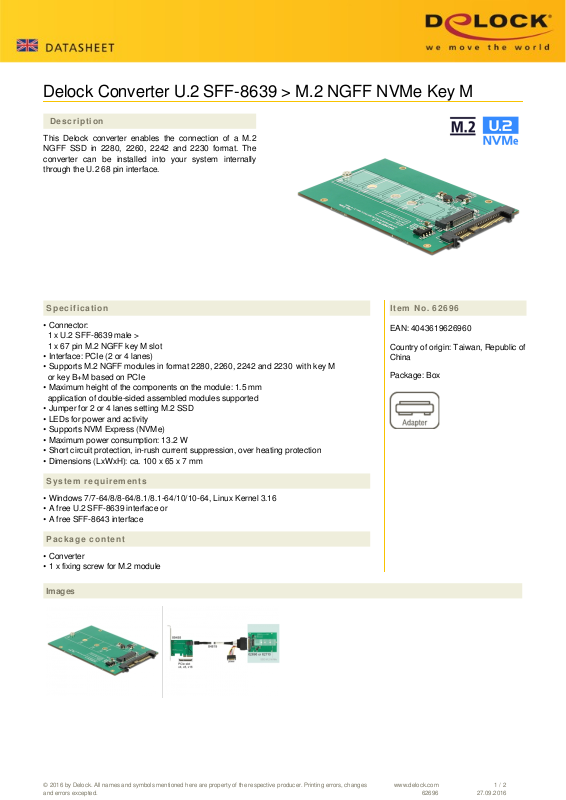

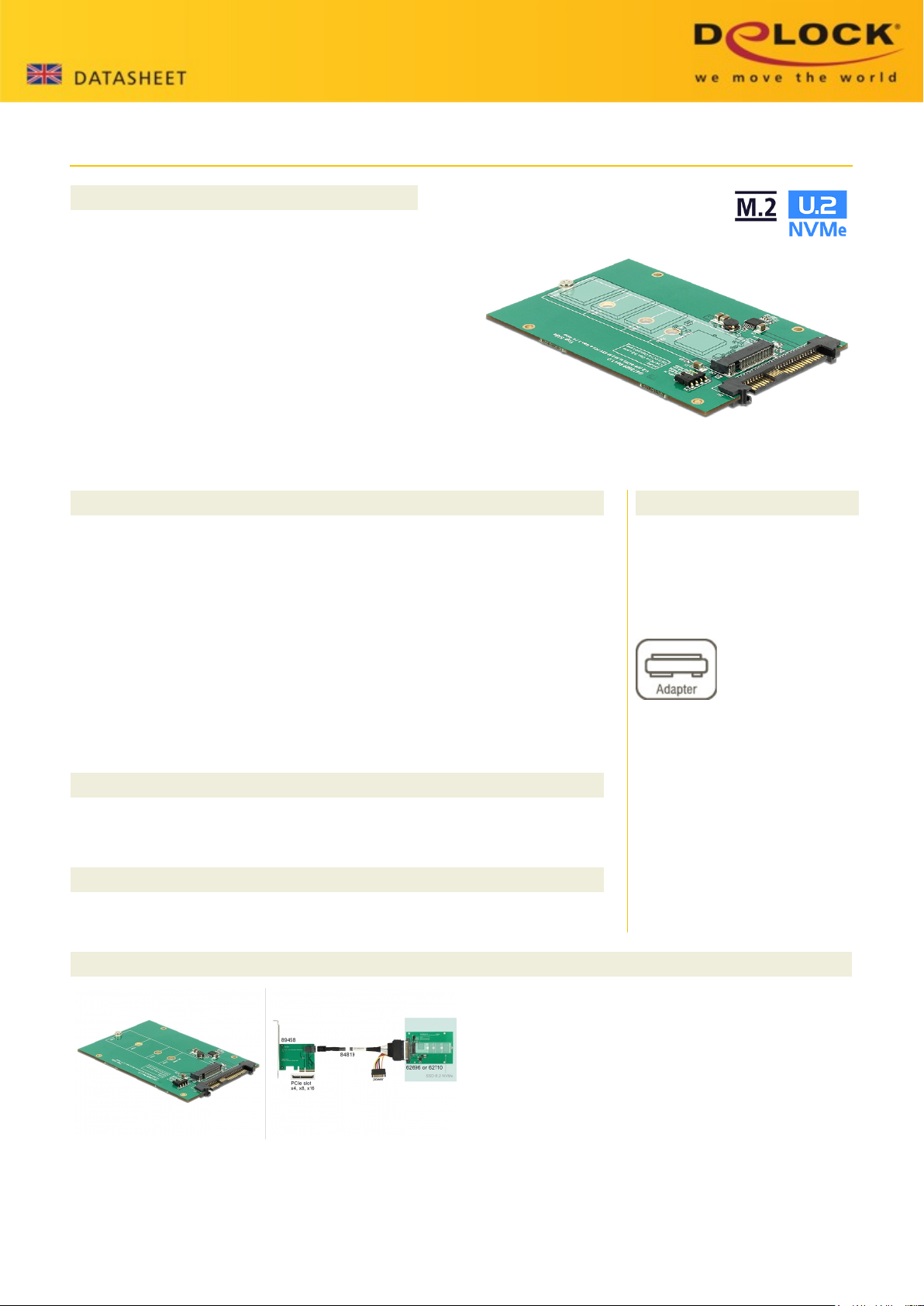

Delock Converter U.2 SFF-8639 > M.2 NGFF NVMe Key M
Description
This Delock converter enables the connection of a M.2
NGFF SSD in 2280, 2260, 2242 and 2230 format. The
converter can be installed into your system internally
through the U.2 68 pin interface.
Specification
• Connector:
1 x U.2 SFF-8639 male >
1 x 67 pin M.2 NGFF key M slot
• Interface: PCIe (2 or 4 lanes)
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
• Jumper for 2 or 4 lanes setting M.2 SSD
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum power consumption: 13.2 W
• Short circuit protection, in-rush current suppression, over heating protection
• Dimensions (LxWxH): ca. 100 x 65 x 7 mm
Item No. 62696
EAN: 4043619626960
Country of origin: Taiwan, Republic of
China
Package: Box
System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16
• A free U.2 SFF-8639 interface or
• A free SFF-8643 interface
Package content
• Converter
• 1 x fixing screw for M.2 module
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62696
1 / 2
27.09.2016
Page 2
General
Supported operating system: Linux Kernel 3.16
Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
LED indicator: power and activity
Supported module: M.2 NGFF modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based
on PCIe
Maximum height of the components on
the module:
Interface
Connection 1: 1 x M.2 NGFF based on PCIe
Connection 2: 1 x U.2 SFF-8639 male
Technical characteristics
Maximum power consumption: 13.2 W
Physical characteristics
Length: 100 mm
Width: 65 mm
Height: 7 mm
1.5 mm application of double-sided assembled modules supported
