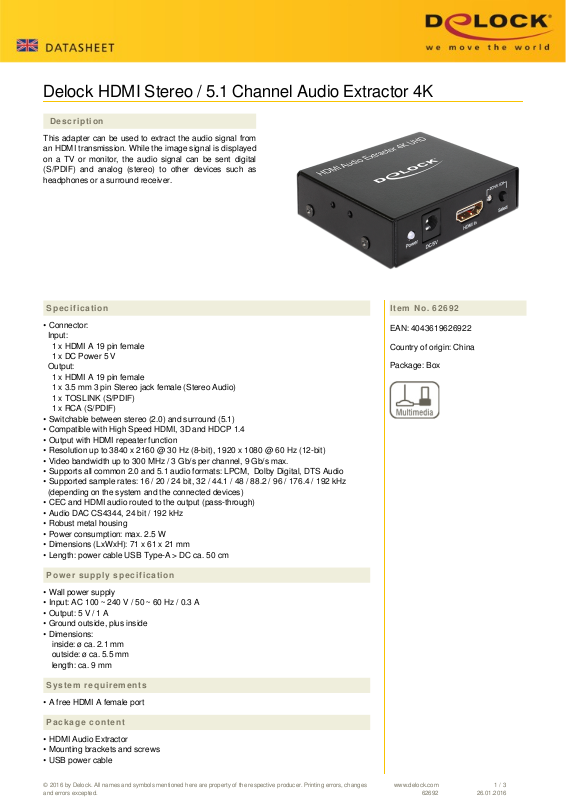

Delock HDMI Stereo / 5.1 Channel Audio Extractor 4K
Description

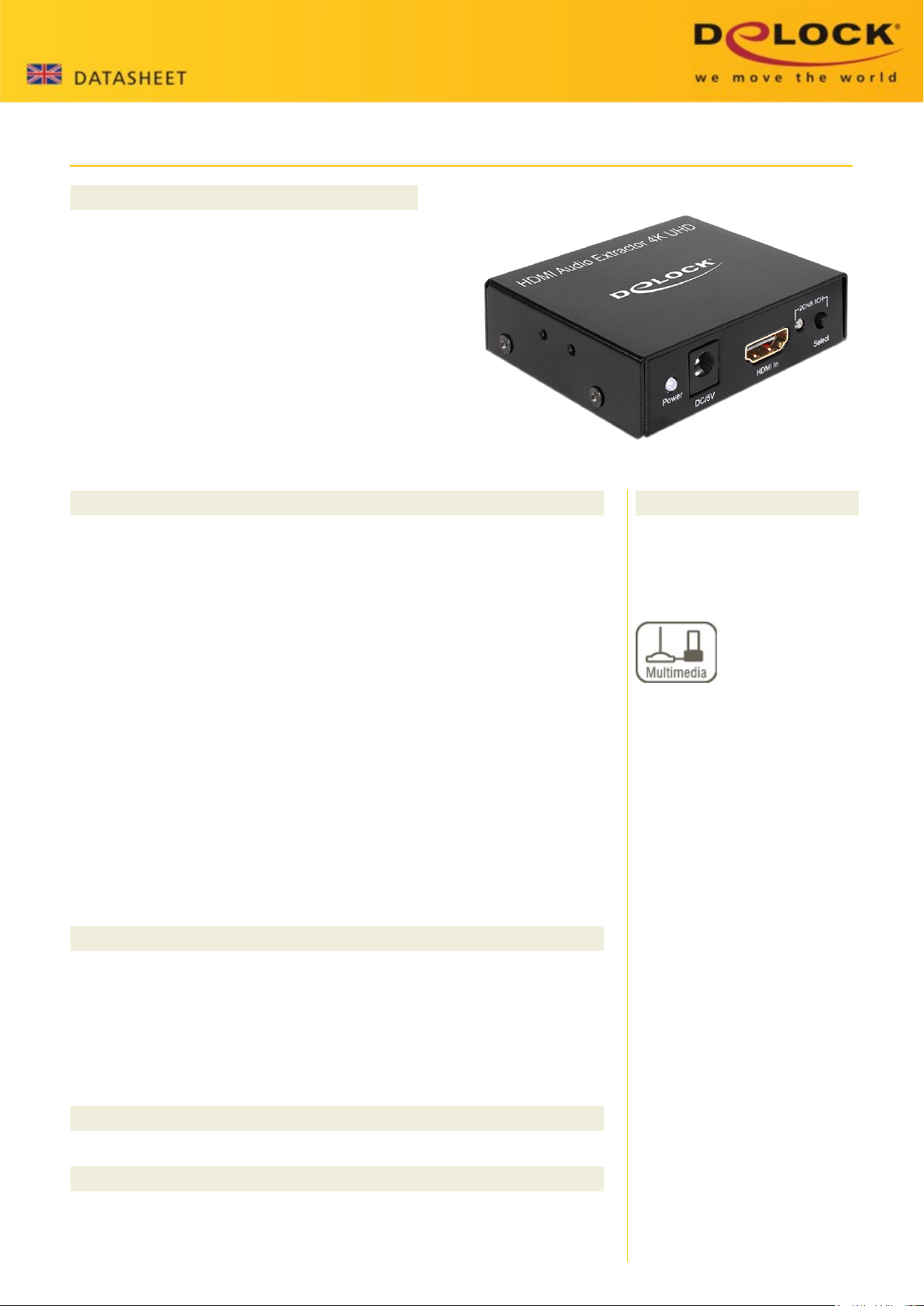

This adapter can be used to extract the audio signal from
an HDMI transmission. While the image signal is displayed
on a TV or monitor, the audio signal can be sent digital
(S/PDIF) and analog (stereo) to other devices such as
headphones or a surround receiver.
Specification
• Connector:
Input:
1 x HDMI A 19 pin female
1 x DC Power 5 V
Output:
1 x HDMI A 19 pin female
1 x 3.5 mm 3 pin Stereo jack female (Stereo Audio)
1 x TOSLINK (S/PDIF)
1 x RCA (S/PDIF)
• Switchable between stereo (2.0) and surround (5.1)
• Compatible with High Speed HDMI, 3D and HDCP 1.4
• Output with HDMI repeater function
• Resolution up to 3840 x 2160 @ 30 Hz (8-bit), 1920 x 1080 @ 60 Hz (12-bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
(depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Audio DAC CS4344, 24 bit / 192 kHz
• Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): 71 x 61 x 21 mm
• Length: power cable USB Type-A > DC ca. 50 cm
Item No. 62692
EAN: 4043619626922
Country of origin: China
Package: Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI A female port
Package content
• HDMI Audio Extractor
• Mounting brackets and screws
• USB power cable
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62692
1 / 3
26.01.2016
Page 2
• Power supply 5 V
• User manual

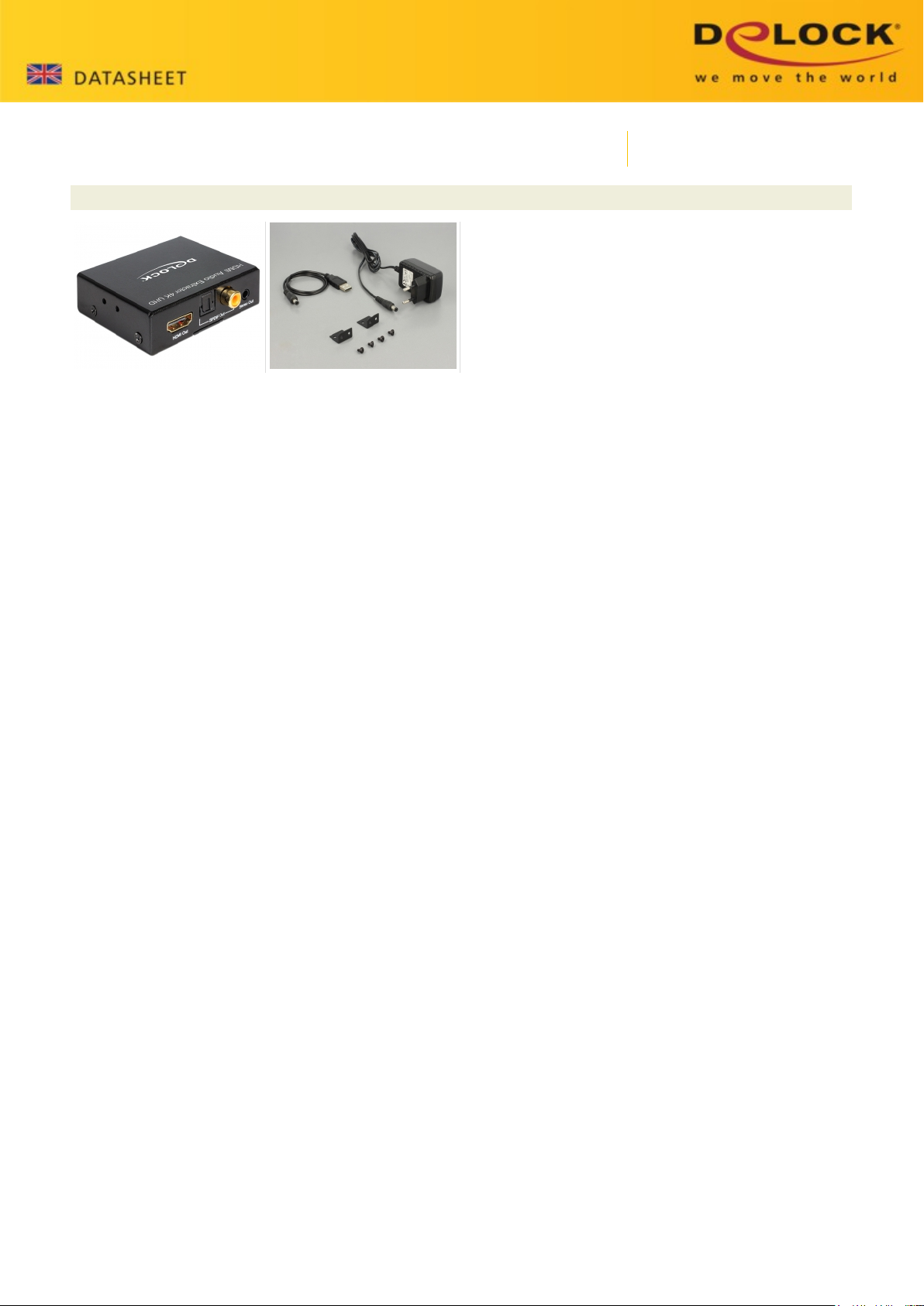

Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62692
2 / 3
26.01.2016
Page 3
General
Specification: HDCP 1.4
High Speed HDMI
LPCM
Dolby Digital
DTS Audio
Interface
Input: 1 x HDMI A 19 pin female
1 x 5 V DC female 3,5 mm x 1,35 mm
Output: 1 x HDMI A 19 pin female
1 x 3.5 mm 3 pin Stereo jack female
1 x TOSLINK
1 x RCA
Technical characteristics
Chipset: Cirrus CS4344
Maximum screen resolution: 3840 x 2160 @ 30 Hz
Video bandwidth: 300 MHz
Physical characteristics
Housing: metal
Length: 71 mm
Width: 61 mm
Height: 21 mm
Power supply
Type: Wall power supply
Input: AC 100 - 240 V / 50 - 60 Hz / 0.3 A
Output: 5 V / 1 A
Connector: DC male 3,5 mm x 1,35 mm
Cable length: 1 m
