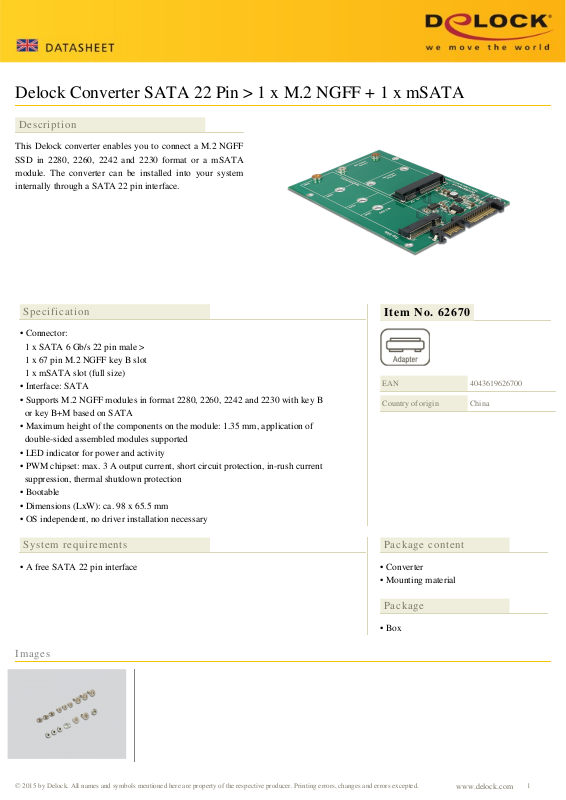

Delock Converter SATA 22 Pin > 1 x M.2 NGFF + 1 x mSATA
Description
This Delock converter enables you to connect a M.2 NGFF
SSD in 2280, 2260, 2242 and 2230 format or a mSATA
module. The converter can be installed into your system
internally through a SATA 22 pin interface.
Specification
• Connector:
1 x SATA 6 Gb/s 22 pin male >
1 x 67 pin M.2 NGFF key B slot
1 x mSATA slot (full size)
• Interface: SATA
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm, application of
double-sided assembled modules supported
• LED indicator for power and activity
• PWM chipset: max. 3 A output current, short circuit protection, in-rush current
suppression, thermal shutdown protection
• Bootable
• Dimensions (LxW): ca. 98 x 65.5 mm
• OS independent, no driver installation necessary
Item No. 62670
EAN
Country of origin
4043619626700
China
System requirements
• A free SATA 22 pin interface
Package content
• Converter
• Mounting material
Package
• Box
Images
