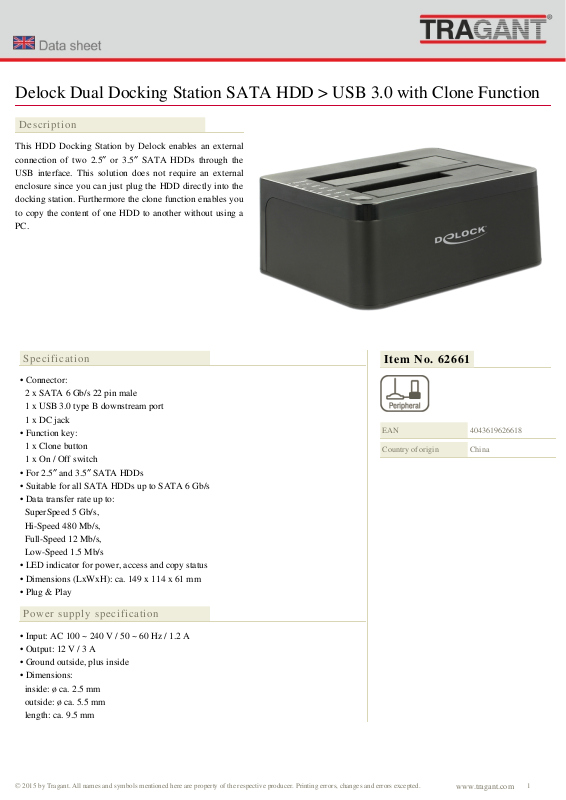

Delock Dual Docking Station SATA HDD > USB 3.0 with Clone Function
Description
This HDD Docking Station by Delock enables an external
connection of two 2.5″ or 3.5″ SATA HDDs through the
USB interface. This solution does not require an external
enclosure since you can just plug the HDD directly into the
docking station. Furthermore the clone function enables you
to copy the content of one HDD to another without using a
PC.
Specification
• Connector:
2 x SATA 6 Gb/s 22 pin male
1 x USB 3.0 type B downstream port
1 x DC jack
• Function key:
1 x Clone button
1 x On / Off switch
• For 2.5″ and 3.5″ SATA HDDs
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to:
SuperSpeed 5 Gb/s,
Hi-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s
• LED indicator for power, access and copy status
• Dimensions (LxWxH): ca. 149 x 114 x 61 mm
• Plug & Play
Power supply specification
Item No. 62661
EAN
Country of origin
4043619626618
China
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.2 A
• Output: 12 V / 3 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
© 2015 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.tragant.com
1
Page 2
System requirements
Package content
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10, Mac OS 10.7.5, Linux Kernel 3.7
• PC or laptop with a free USB type A port
Images
• Dual Docking Station
• USB 3.0 cable
• External power supply 12 V / 3 A
• User manual
Package
• Retail Box
