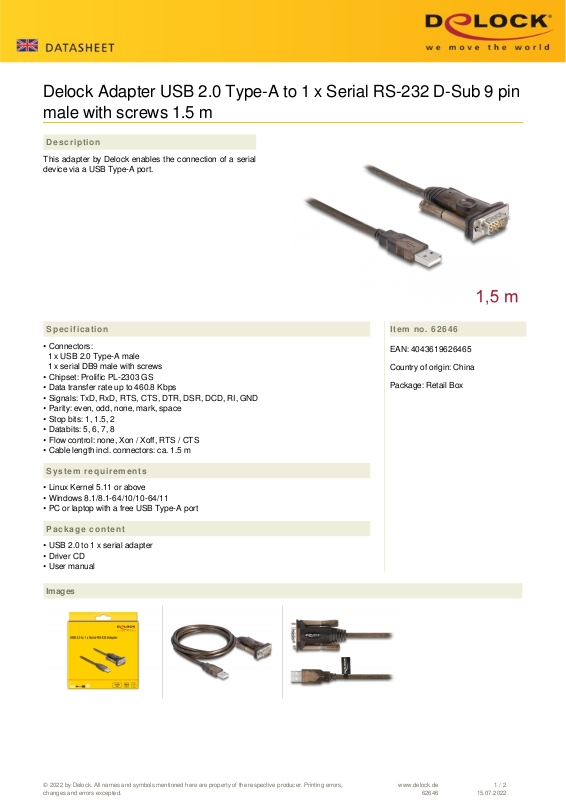

Page 1
Delock Adapter USB 2.0 Type-A to 1 x Serial RS-232 D-Sub 9 pin
male with screws 1.5 m
Description
This adapter by Delock enables the connection of a serial
device via a USB Type-A port.
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x serial DB9 male with screws
• Chipset: Prolific PL-2303 GS
• Data transfer rate up to 460.8 Kbps
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Parity: even, odd, none, mark, space
• Stop bits: 1, 1.5, 2
• Databits: 5, 6, 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS
• Cable length incl. connectors: ca. 1.5 m
Item no. 62646
EAN: 4043619626465
Country of origin: China
Package: Retail Box
System requirements
• Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 to 1 x serial adapter
• Driver CD
• User manual
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
62646
1 / 2
15.07.2022
Page 2
General
Function: Plug & Play
Specification: RS-232 (EIA / TIA)
USB 2.0
Interface
Connector 1: 1 x USB 2.0 Type-A male
Connector 2: 1 x Serial RS-232 DB9 male
Technical characteristics
Chipset: Prolific PL2303GS
Data transfer rate: up to 460,8 Kbps
FIFO: 1 x 1024 Byte
Shielding: shielded
Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Data transmission: asynchronous
full duplex
UART: USB to serial UART
Data bits: 5, 6, 7, 8
Physical characteristics
Cable length incl. connector: 1.5 m
Pin finishing: gold-plated
Screw type: #4-40 UNC
Shielding: double
Colour: transparent
black
