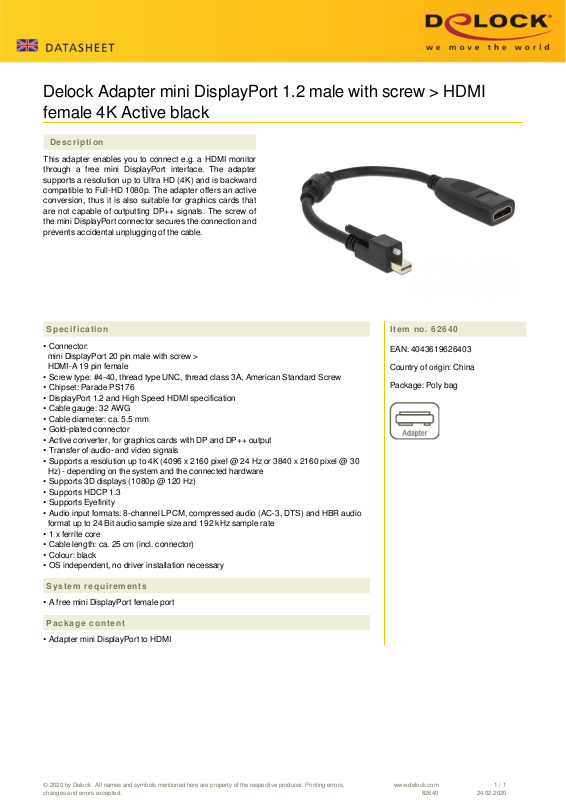

Delock Adapter mini DisplayPort 1.2 male with screw > HDMI
female 4K Active black
Description
This adapter enables you to connect e.g. a HDMI monitor
through a free mini DisplayPort interface. The adapter
supports a resolution up to Ultra HD (4K) and is backward
compatible to Full-HD 1080p. The adapter offers an active
conversion, thus it is also suitable for graphics cards that
are not capable of outputting DP++ signals. The screw of
the mini DisplayPort connector secures the connection and
prevents accidental unplugging of the cable.
Specification
• Connector:
mini DisplayPort 20 pin male with screw >
HDMI-A 19 pin female
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS176
• DisplayPort 1.2 and High Speed HDMI specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connector
• Active converter, for graphics cards with DP and DP++ output
• Transfer of audio- and video signals
• Supports a resolution up to 4K (4096 x 2160 pixel @ 24 Hz or 3840 x 2160 pixel @ 30
Hz) - depending on the system and the connected hardware
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Supports Eyefinity
• Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio
format up to 24 Bit audio sample size and 192 kHz sample rate
• 1 x ferrite core
• Cable length: ca. 25 cm (incl. connector)
• Colour: black
• OS independent, no driver installation necessary
Item no. 62640
EAN: 4043619626403
Country of origin: China
Package: Poly bag
Powered by TCPDF (www.tcpdf.org)
System requirements
• A free mini DisplayPort female port
Package content
• Adapter mini DisplayPort to HDMI
