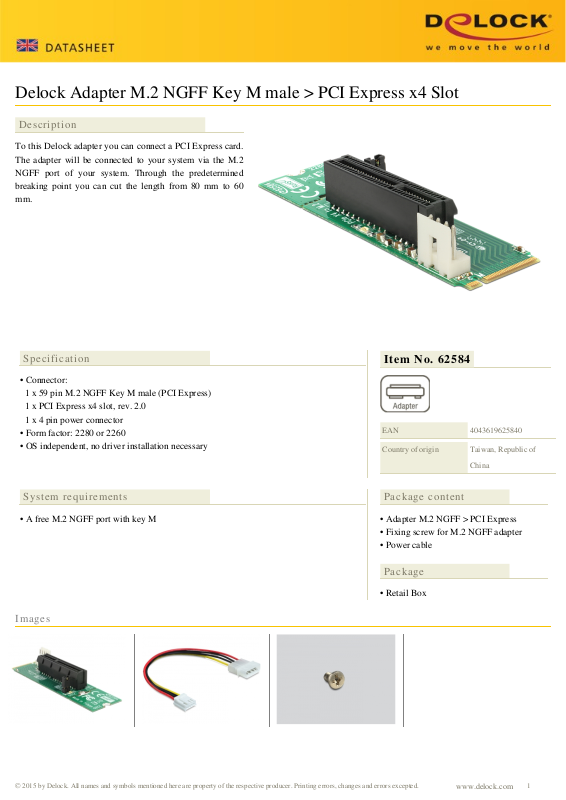

Delock Adapter M.2 NGFF Key M male > PCI Express x4 Slot
Description
To this Delock adapter you can connect a PCI Express card.
The adapter will be connected to your system via the M.2
NGFF port of your system. Through the predetermined
breaking point you can cut the length from 80 mm to 60
mm.
Specification
• Connector:
1 x 59 pin M.2 NGFF Key M male (PCI Express)
1 x PCI Express x4 slot, rev. 2.0
1 x 4 pin power connector
• Form factor: 2280 or 2260
• OS independent, no driver installation necessary
Item No. 62584
EAN
Country of origin
4043619625840
Taiwan, Republic of
China
System requirements
• A free M.2 NGFF port with key M
Images
Package content
• Adapter M.2 NGFF > PCI Express
• Fixing screw for M.2 NGFF adapter
• Power cable
Package
• Retail Box
