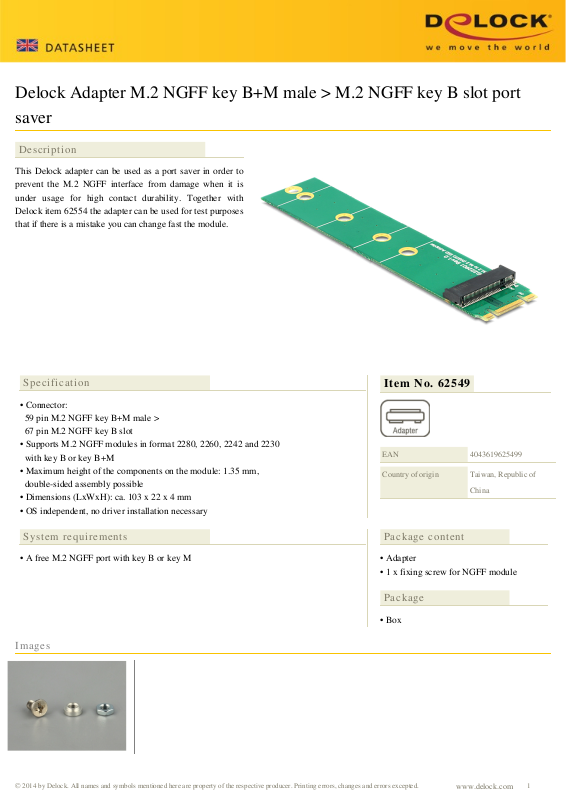

Delock Adapter M.2 NGFF key B+M male > M.2 NGFF key B slot port
saver
Description
This Delock adapter can be used as a port saver in order to
prevent the M.2 NGFF interface from damage when it is
under usage for high contact durability. Together with
Delock item 62554 the adapter can be used for test purposes
that if there is a mistake you can change fast the module.
Specification
• Connector:
59 pin M.2 NGFF key B+M male >
67 pin M.2 NGFF key B slot
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230
with key B or key B+M
• Maximum height of the components on the module: 1.35 mm,
double-sided assembly possible
• Dimensions (LxWxH): ca. 103 x 22 x 4 mm
• OS independent, no driver installation necessary
Item No. 62549
EAN
Country of origin
4043619625499
Taiwan, Republic of
China
System requirements
• A free M.2 NGFF port with key B or key M
Package content
• Adapter
• 1 x fixing screw for NGFF module
Package
• Box
Images
