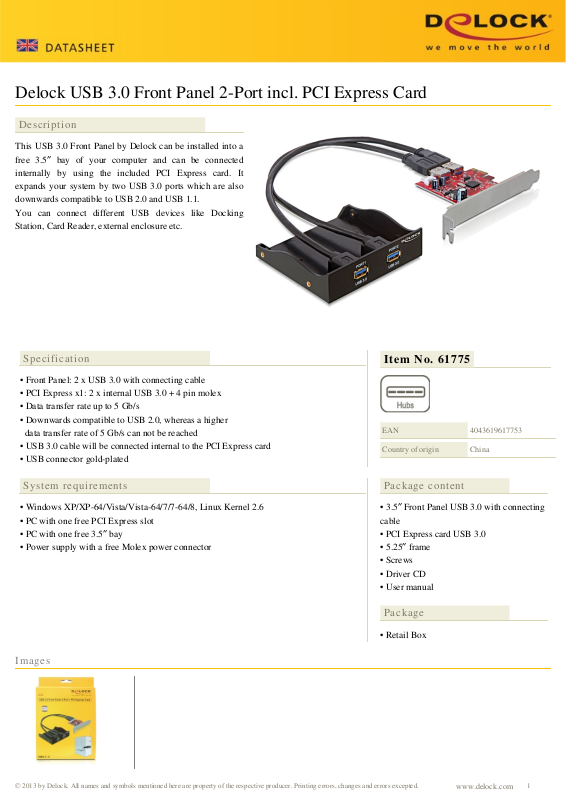

DeLOCK 61775 User Manual

Delock USB 3.0 Front Panel 2-Port incl. PCI Express Card

Description

This USB 3.0 Front Panel by Delock can be installed into a
free 3.5″ bay of your computer and can be connected
internally by using the included PCI Express card. It
expands your system by two USB 3.0 ports which are also
downwards compatible to USB 2.0 and USB 1.1.
You can connect different USB devices like Docking
Station, Card Reader, external enclosure etc.

Specification

• Front Panel: 2 x USB 3.0 with connecting cable

• PCI Express x1: 2 x internal USB 3.0 + 4 pin molex

• Data transfer rate up to 5 Gb/s

• Downwards compatible to USB 2.0, whereas a higher
data transfer rate of 5 Gb/s can not be reached

• USB 3.0 cable will be connected internal to the PCI Express card

• USB connector gold-plated

Item No. 61775

EAN

Country of origin

4043619617753

China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64/8, Linux Kernel 2.6

• PC with one free PCI Express slot

• PC with one free 3.5″ bay

• Power supply with a free Molex power connector

Images

Package content

• 3.5″ Front Panel USB 3.0 with connecting
cable

• PCI Express card USB 3.0

• 5.25″ frame

• Screws

• Driver CD

• User manual

Package

• Retail Box
